SV33-AEPMK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1994
Engine
3SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

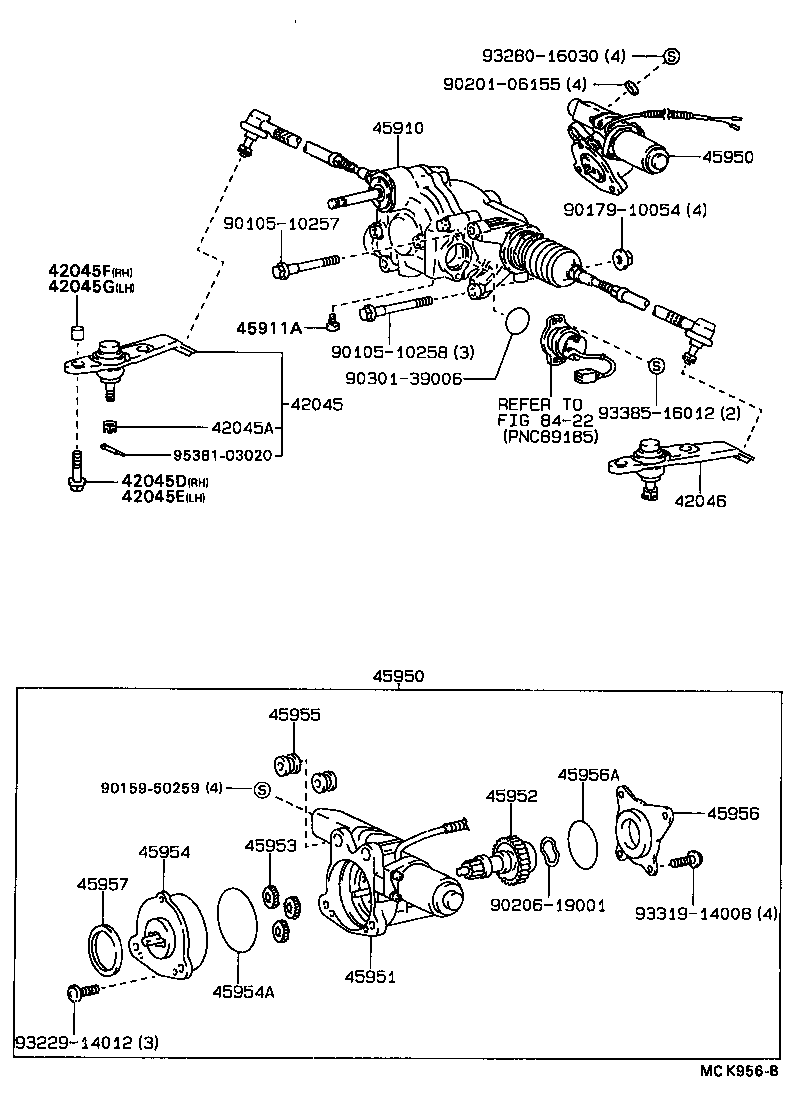

ILLUST NO. 1 OF 2(9007- )SV33,VZV31,33
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42045 - ARM SUB-ASSY, REAR STEERING KNUCKLE, RH | ||||
| 42045-29015 |
SV33,VZV31,33 |
1 | ||
| 42045A - NUT (FOR REAR STEERING KNUCKLE ARM) | ||||
| 90171-14002 |
SV33,VZV31,33 |
2 | ||
| 42045D - BOLT (FOR REAR STEERING KNUCKLE ARM, RH) | ||||
| 90105-12191 |
SV33,VZV31,33 |
2 | ||
| 42045E - BOLT (FOR REAR STEERING KNUCKLE ARM, LH) | ||||
| 90105-12191 |
SV33,VZV31,33 |
2 | ||
| 42045F - PIN (FOR REAR STEERING KNUCKLE ARM, RH) | ||||
| 90253-15016 |
SV33,VZV31,33 |
2 | ||
| 42045G - PIN (FOR REAR STEERING KNUCKLE ARM, LH) | ||||
| 90253-15016 |
SV33,VZV31,33 |
2 | ||
| 42046 - ARM SUB-ASSY, REAR STEERING KNUCKLE, LH | ||||
| 42046-29015 |
SV33,VZV31,33 |
1 | ||
| 45910 - GEAR ASSY, REAR STEERING | ||||
| 45910-32010 |
SV33,VZV31,33 |
1 | ||
| 45911A - BOLT, NO.1(FOR REAR STEERING GEAR HOUSING) | ||||
| 90110-08021 |
SV33,VZV31,33 |
1 | ||
| 45950 - CONVERTER ASSY, REAR STEERING ANGLE RATIO | ||||
| 45950-32010 |
SV33,VZV31,33 |
1 | ||
| 45950 - CONVERTER ASSY, REAR STEERING ANGLE RATIO | ||||
| 45950-32010 |
SV33,VZV31,33 |
1 | ||
| 45951 - HOUSING, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45951-32010 |
SV33,VZV31,33 |
1 | ||
| 45952 - SHAFT, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45952-20010 |
SV33,VZV31,33 |
1 | ||
| 45953 - GEAR, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45953-20010 |
SV33,VZV31,33 |
3 | ||
| 45954 - FRAME, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45954-32010 |
SV33,VZV31,33 |
1 | ||
| 45954A - RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER FRAME) | ||||
| 90301-67002 |
SV33,VZV31,33 |
1 | ||
| 45955 - BUSH, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45955-20010 |
SV33,VZV31,33 |
2 | ||
| 45956 - CAP, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45956-20010 |
SV33,VZV31,33 |
1 | ||
| 45956A - RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER CAP) | ||||
| 96711-24047 |
SV33,VZV31,33 |
1 | ||
| 45957 - SEAL(FOR REAR STEERING ANGLE RATIO CONVERTER) | ||||
| 45957-20010 |
SV33,VZV31,33 |
1 | ||
| Common parts | ||||
| 90105-10257 | ||||
| 90105-10258 | ||||
| 90159-50259 | ||||
| 90179-10054 | ||||
| 90201-06155 | ||||
| 90206-19001 | ||||
| 90301-39006 | ||||
| 93229-14012 | ||||
| 93280-16030 | ||||
| 93319-14008 | ||||
| 93385-16012 | ||||
| 95381-03020 | ||||
| Linked diagrams | ||||
| 8422 | ||||

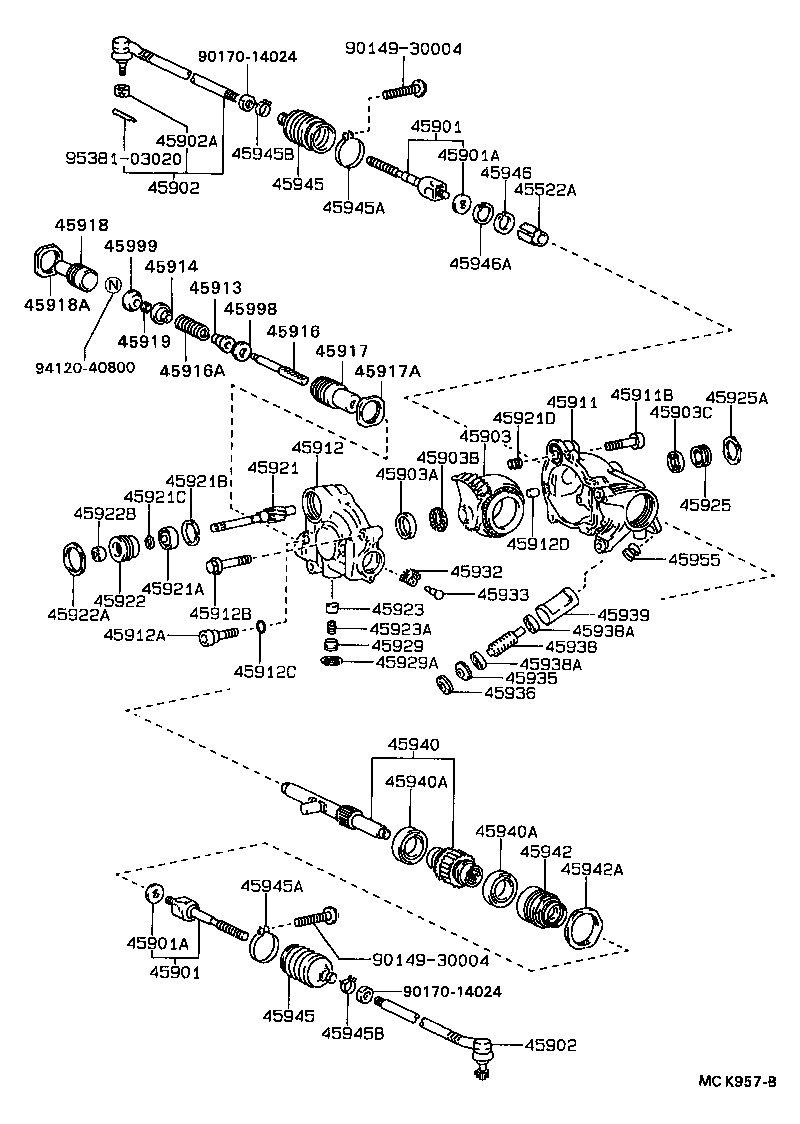

ILLUST NO. 2 OF 2(9007- )SV33,VZV31,33
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45522A - BUSH, STEERING RACK | ||||
| 45522-17010 |
SV33,VZV31,33 |
1 | ||
| 45522-17020 |
SV33,VZV33 |
1 | ||
| 45901 - END SUB-ASSY, REAR STEERING RACK | ||||
| 45901-29015 |
SV33,VZV31,33 |
2 | ||
| 45901-29015 |
SV33,VZV33 |
1 | ||
| 45901 - END SUB-ASSY, REAR STEERING RACK | ||||
| 45901-29015 |
SV33,VZV31,33 |
2 | ||
| 45901-29015 |
SV33,VZV33 |
1 | ||
| 45901A - WASHER, CLAW(FOR REAR STEERING GEAR ASSY) | ||||
| 90214-14007 |
SV33,VZV31,33 |
2 | ||
| 45901A - WASHER, CLAW(FOR REAR STEERING GEAR ASSY) | ||||
| 90214-14007 |
SV33,VZV31,33 |
2 | ||
| 45902 - END SUB-ASSY, REAR STEERING TIE ROD | ||||
| 45902-39015 |
SV33,VZV33 |
1 | ||
| 45902-39015 |
SV33,VZV31,33 |
2 | ||
| 45902 - END SUB-ASSY, REAR STEERING TIE ROD | ||||
| 45902-39015 |
SV33,VZV33 |
1 | ||
| 45902-39015 |
SV33,VZV31,33 |
2 | ||
| 45902A - NUT, CASTLE(FOR REAR STEERING TIE ROD END) | ||||
| 90171-12028 |
SV33,VZV31,33 |
2 | ||
| 45903 - BEARING SUB-ASSY, REAR STEERING PIVOT | ||||
| 45903-20020 |
SV33,VZV31,33 ﾏｰｸ B |
1 | ||
| 45903-20010 |
SV33,VZV31,33 ﾏｰｸ A |
1 | ||
| 45903A - BEARING, FRONT(FOR REAR STEERING PIVOT BEARING) | ||||
| 90369-39002 |
SV33,VZV31,33 |
1 | ||
| 45903B - BEARING, FRONT NO.2(FOR REAR STEERING PIVOT BEARING) | ||||
| 90369-39003 |
SV33,VZV31,33 |
1 | ||
| 45903C - BEARING, REAR(FOR REAR STEERING PIVOT BEARING) | ||||
| 90369-27001 |
SV33,VZV31,33 |
1 | ||
| 45911 - HOUSING, REAR STEERING GEAR | ||||
| 45911-32010 |
SV33,VZV31,33 |
1 | ||
| 45911B - BOLT, NO.2(FOR REAR STEERING GEAR HOUSING) | ||||
| 90119-08787 |
SV33,VZV31,33 |
3 | ||
| 45912 - COVER, REAR STEERING GEAR | ||||
| 45912-20010 |
SV33,VZV31,33 |
1 | ||
| 45912A - BOLT, HEAD CAP(FOR REAR STEERING GEAR COVER) | ||||
| 90110-08022 |
SV33,VZV31,33 |
2 | ||
| 45912B - BOLT(FOR REAR STEERING GEAR COVER) | ||||
| 90119-08788 |
SV33,VZV31,33 |
1 | ||
| 45912C - RING, O(FOR REAR STEERING GEAR COVER) | ||||
| 90301-07007 |
SV33,VZV31,33 |
2 | ||
| 45912D - PIN, SLOTTED SPRING(FOR REAR STEERING GEAR) | ||||
| 90254-10002 |
SV33,VZV31,33 |
2 | ||
| 45913 - RETAINER, REAR STEERING RETURN SPRING | ||||
| 45913-20010 |
SV33,VZV31,33 |
1 | ||
| 45914 - RETAINER, REAR STEERING RETURN SPRING, NO.2 | ||||
| 45914-20010 |
SV33,VZV31,33 |
1 | ||
| 45916 - RACK, REAR STEERING RETURN | ||||
| 45916-20010 |
SV33,VZV31,33 |
1 | ||
| 45916A - SPRING, COMPRESSION(REAR STEERING RETURN RACK) | ||||
| 90501-45034 |
SV33,VZV31,33 |
1 | ||
| 45917 - HOLDER, REAR STEERING RETURN RACK SPRING | ||||
| 45917-20010 |
SV33,VZV31,33 |
1 | ||
| 45917A - NUT(REAR STEERING RETURN RACK ASSY) | ||||
| 90179-48001 |
SV33,VZV31,33 |
1 | ||
| 45918 - HOLDER, NO.2, REAR STEERING RETURN RACK SPRING | ||||
| 45918-20010 |
SV33,VZV31,33 |
1 | ||
| 45918A - NUT, NO.2(REAR STEERING RETURN RACK ASSY) | ||||
| 90179-42002 |
SV33,VZV31,33 |
1 | ||
| 45919 - STOPPER, REAR STEERING RETURN SPRING RETAINER | ||||
| 45919-20010 |
SV33,VZV31,33 |
1 | ||
| 45921 - PINION, REAR STEERING GEAR | ||||
| 45921-20010 |
SV33,VZV31,33 |
1 | ||
| 45921A - BEARING, FRONT(FOR REAR STEERING GEAR PINION) | ||||
| 90363-17009 |
SV33,VZV31,33 |
1 | ||
| 45921B - RING, SNAP(FOR REAR STEERING GEAR PINION NO.1) | ||||
| 96151-04000 |
SV33,VZV31,33 |
1 | ||
| 45921C - RING, SNAP(FOR REAR STEERING GEAR PINION NO.2) | ||||
| 96150-01700 |
SV33,VZV31,33 |
1 | ||
| 45921D - BEARING, REAR(FOR REAR STEERING GEAR PINION) | ||||
| 90364-12007 |
SV33,VZV31,33 |
1 | ||
| 45922 - SCREW, REAR STEERING GEAR PINION BEARING ADJUST | ||||
| 45922-20010 |
SV33,VZV31,33 |
1 | ||
| 45922A - NUT(FOR REAR STEERING PINION BEARING ADJUST SCREW) | ||||
| 90179-50001 |
SV33,VZV31,33 |
1 | ||
| 45922B - SEAL, OIL(FOR REAR STEERING PINION BEARING ADJUST SCREW | ||||
| 90311-15002 |
SV33,VZV31,33 |
1 | ||
| 45923 - GUISE, REAR STEERING RETURN RACK | ||||
| 45923-20010 |
SV33,VZV31,33 |
1 | ||
| 45923A - SPRING(FOR REAR STEERING RETURN RACK GUIDE) | ||||
| 90501-16119 |
SV33,VZV31,33 |
1 | ||
| 45925 - CAP, REAR STEERING PIVOT BEARING | ||||
| 45925-20010 |
SV33,VZV31,33 |
1 | ||
| 45925A - NUT(FOR REAR STEERING PIVOT BEARING CAP) | ||||
| 90179-42002 |
SV33,VZV31,33 |
1 | ||
| 45929 - CAP, REAR STEERING RETURN RACK GUIDE SPRING | ||||
| 45929-20010 |
SV33,VZV31,33 |
1 | ||
| 45929A - NUT(FOR REAR STEERING RETURN RACK GUIDE SPRING CAP) | ||||
| 90179-25002 |
SV33,VZV31,33 |
1 | ||
| 45932 - GEAR, REAR STEERING SENSOR DRIVE, NO.2 | ||||
| 45932-20010 |
SV33,VZV31,33 |
1 | ||
| 45933 - SHAFT, REAR STEERING SENSOR DRIVE GEAR | ||||
| 45933-20010 |
SV33,VZV31,33 |
1 | ||
| 45935 - NUT, REAR STEERING WORM ADJUST, NO,1 | ||||
| 45935-20010 |
SV33,VZV31,33 |
1 | ||
| 45936 - NUT, REAR STEERING WORM ADJUST, NO,2 | ||||
| 45936-20010 |
SV33,VZV31,33 |
1 | ||
| 45938 - WORM, REAR STEERING LEVER RATIO CONTROL | ||||
| 45938-20010 |
SV33,VZV31,33 |
1 | ||
| 45938A - BEARING(FOR REAR STEERING LEVER RATIO CONTROL WORM) | ||||
| 90363-15014 |
SV33,VZV31,33 |
2 | ||
| 45938A - BEARING(FOR REAR STEERING LEVER RATIO CONTROL WORM) | ||||
| 90363-15014 |
SV33,VZV31,33 |
2 | ||
| 45939 - CAM, REAR STEERING WORM CONTROL | ||||
| 45939-20010 |
SV33,VZV31,33 |
1 | ||
| 45940 - WORM ASSY, REAR STEERING RELAY | ||||
| 45940-32010 |
SV33,VZV31,33 ﾏｰｸ A |
1 | ||
| 45940-32020 |
SV33,VZV31,33 ﾏｰｸ B |
1 | ||
| 45940A - BEARING(FOR REAR STEERING RELAY WORM) | ||||
| 90363-45014 |
SV33,VZV31,33 |
2 | ||
| 45940A - BEARING(FOR REAR STEERING RELAY WORM) | ||||
| 90363-45014 |
SV33,VZV31,33 |
2 | ||
| 45942 - CAP, REAR STEERING RELAY ROD | ||||
| 45942-20010 |
SV33,VZV31,33 |
1 | ||
| 45942A - NUT(FOR REAR STEERING RELAY ROD CAP) | ||||
| 90179-70001 |
SV33,VZV31,33 |
1 | ||
| 45945 - BOOT, REAR STEERING RELAY ROD | ||||
| 45945-20010 |
SV33,VZV31,33 |
2 | ||
| 45945 - BOOT, REAR STEERING RELAY ROD | ||||
| 45945-20010 |
SV33,VZV31,33 |
2 | ||
| 45945A - CLAMP(FOR REAR STEERING RELAY ROD BOOT) | ||||
| 90460-55011 |
SV33,VZV31,33 |
2 | ||
| 45945A - CLAMP(FOR REAR STEERING RELAY ROD BOOT) | ||||
| 90460-55011 |
SV33,VZV31,33 |
2 | ||
| 45945B - CLIP(FOR REAR STEERING RELAY ROD BOOT) | ||||
| 90467-16014 |
SV33,VZV31,33 |
2 | ||
| 45945B - CLIP(FOR REAR STEERING RELAY ROD BOOT) | ||||
| 90467-16014 |
SV33,VZV31,33 |
2 | ||
| 45946 - STOPPER, REAR STEERING RELAY ROD | ||||
| 45946-20010 |
SV33,VZV31,33 |
1 | ||
| 45946A - RING, SNAP(FOR REAR STEERING RELAY ROD STOPPER) | ||||
| 96151-04500 |
SV33,VZV31,33 |
1 | ||
| 45955 - BUSH, REAR STEERING ANGLE RATIO CONVERTER | ||||
| 45955-20010 |
SV33,VZV31,33 |
2 | ||
| 45998 - CUSHION(FOR REAR STEERING RETURN RACK) | ||||
| 45998-20010 |
SV33,VZV31,33 |
1 | ||
| 45999 - CUSHION, NO.2(FOR REAR STEERING RETURN RACK) | ||||
| 45999-20010 |
SV33,VZV31,33 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90170-14024 | ||||
| 94120-40800 | ||||
| 95381-03020 | ||||
