SV33-AEPMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )3S#,4SFE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

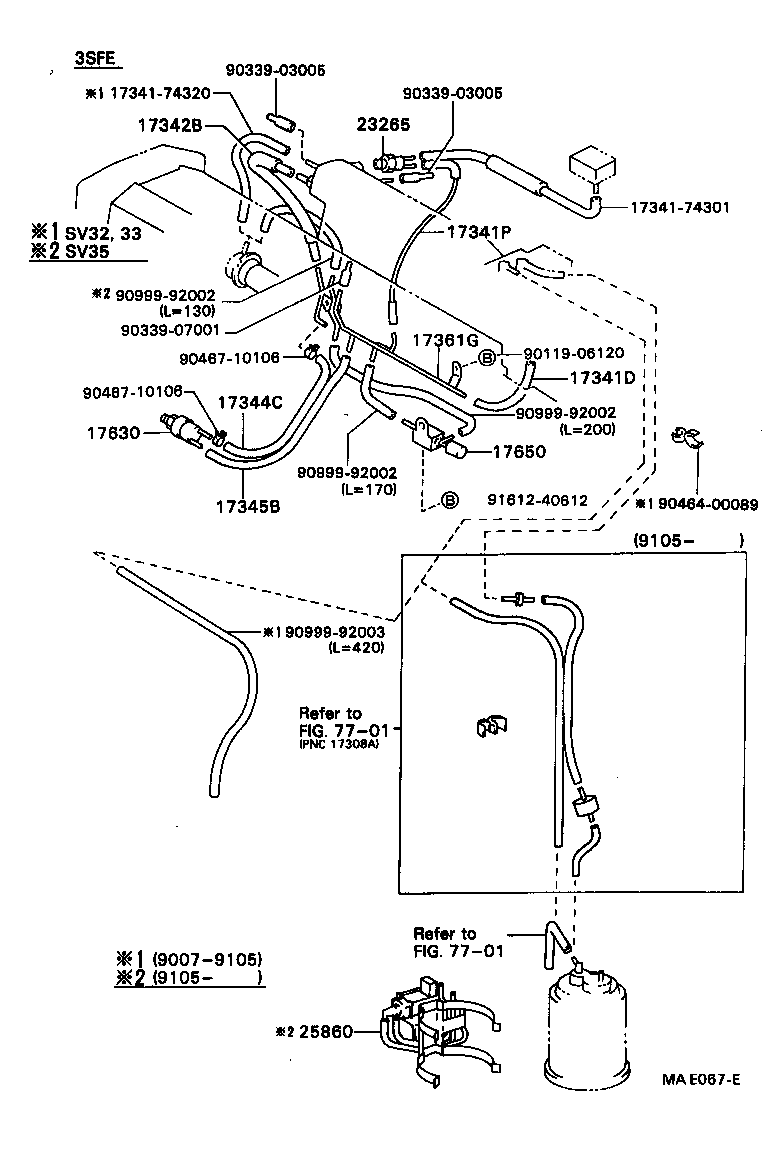

(9007-9206)3SFE

Click highlighted areas on diagram

diagram 1734174301 1734174320 17341D 17341P 17342B 17344C 17345B 17361G 17630 17650 23265 25860 7701 7701 9011906120 9033903005 9033903005 9033907001 9046400089 9046710106 9046710106 9099992002 9099992002 9099992002 9099992003 9161240612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

3SFE,4SFE..SV3#

NO.1

 1
17341-74340

3SFE..SV32,33,35

 1
17341-74340

3SFE,4SFE..SV3#

 1
17341P - HOSE, AIR
17341-74310

3SFE..SV32,33,35

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74110

3SFE..SV32,33,35

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-74041

3SFE..SV32,33,35

 1
17345B - HOSE, NO.5(FOR IDLE-UP)
17345-74031

3SFE..SV32,33,35

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74060

3SFE..SV32,33

 1
17361-74081

3SFE..SV32,33,35

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74020

3SFE..SV32,33,35

 1
23265 - FILTER, GAS, NO.1
90917-11023

3SFE,4SFE..SV3#

 1
90917-11022

3SFE..SV32,33

 1
90917-11022

3SFE,4SFE..SV30,32,33

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74060

3SFE,4SFE..SV3#

 1
Common parts
17341-74301
17341-74320
90119-06120
90339-03005
90339-07001
90464-00089
90467-10106
90999-92002
90999-92003
91612-40612
Linked diagrams
7701

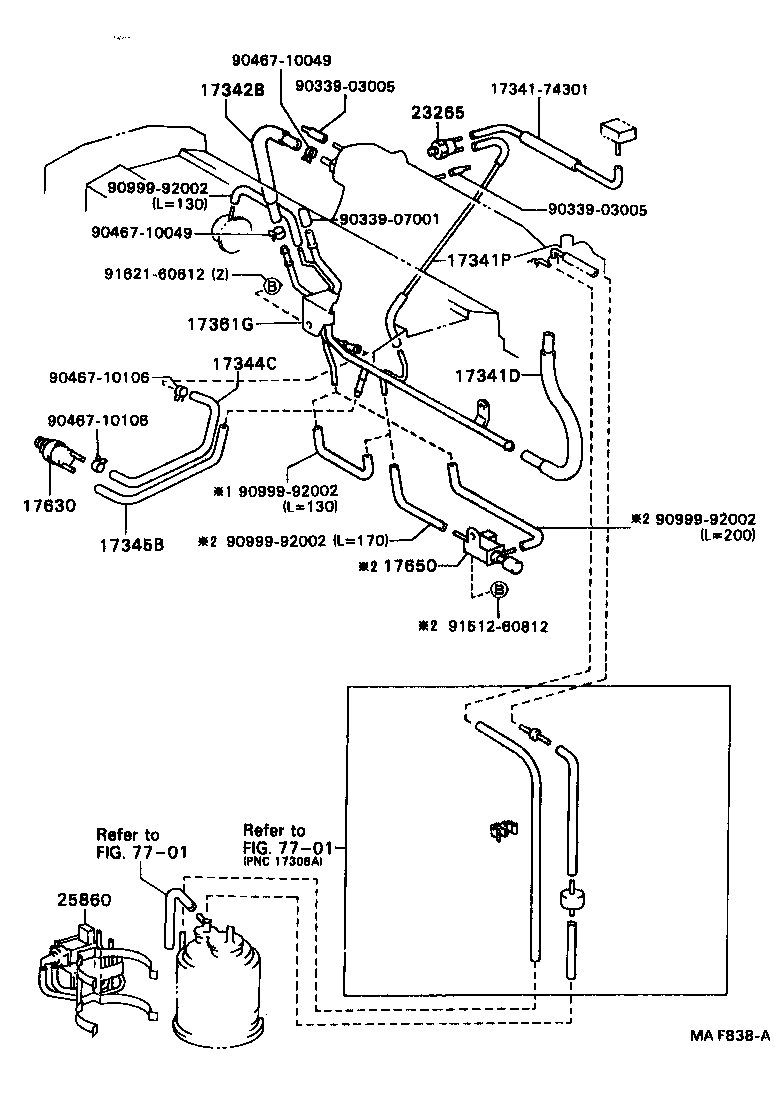

(9206- )3SFE

Click highlighted areas on diagram

diagram 1734174301 17341D 17341P 17342B 17344C 17345B 17361G 17630 17650 23265 25860 7701 7701 9033903005 9033903005 9033907001 9046710049 9046710049 9046710106 9046710106 9099992002 9099992002 9099992002 9099992002 9151260812 9162160612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

3SFE,4SFE..SV3#

NO.1

 1
17341-74340

3SFE..SV32,33,35

 1
17341-74340

3SFE,4SFE..SV3#

 1
17341P - HOSE, AIR
17341-74310

3SFE..SV32,33,35

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74110

3SFE..SV32,33,35

 1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-74041

3SFE..SV32,33,35

 1
17345B - HOSE, NO.5(FOR IDLE-UP)
17345-74031

3SFE..SV32,33,35

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74060

3SFE..SV32,33

 1
17361-74081

3SFE..SV32,33,35

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74020

3SFE..SV32,33,35

 1
23265 - FILTER, GAS, NO.1
90917-11023

3SFE,4SFE..SV3#

 1
90917-11022

3SFE..SV32,33

 1
90917-11022

3SFE,4SFE..SV30,32,33

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74060

3SFE,4SFE..SV3#

 1
Common parts
17341-74301
90339-03005
90339-07001
90467-10049
90467-10106
90999-92002
91512-60812
91621-60612
Linked diagrams
7701
