SV33-AEMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)SED

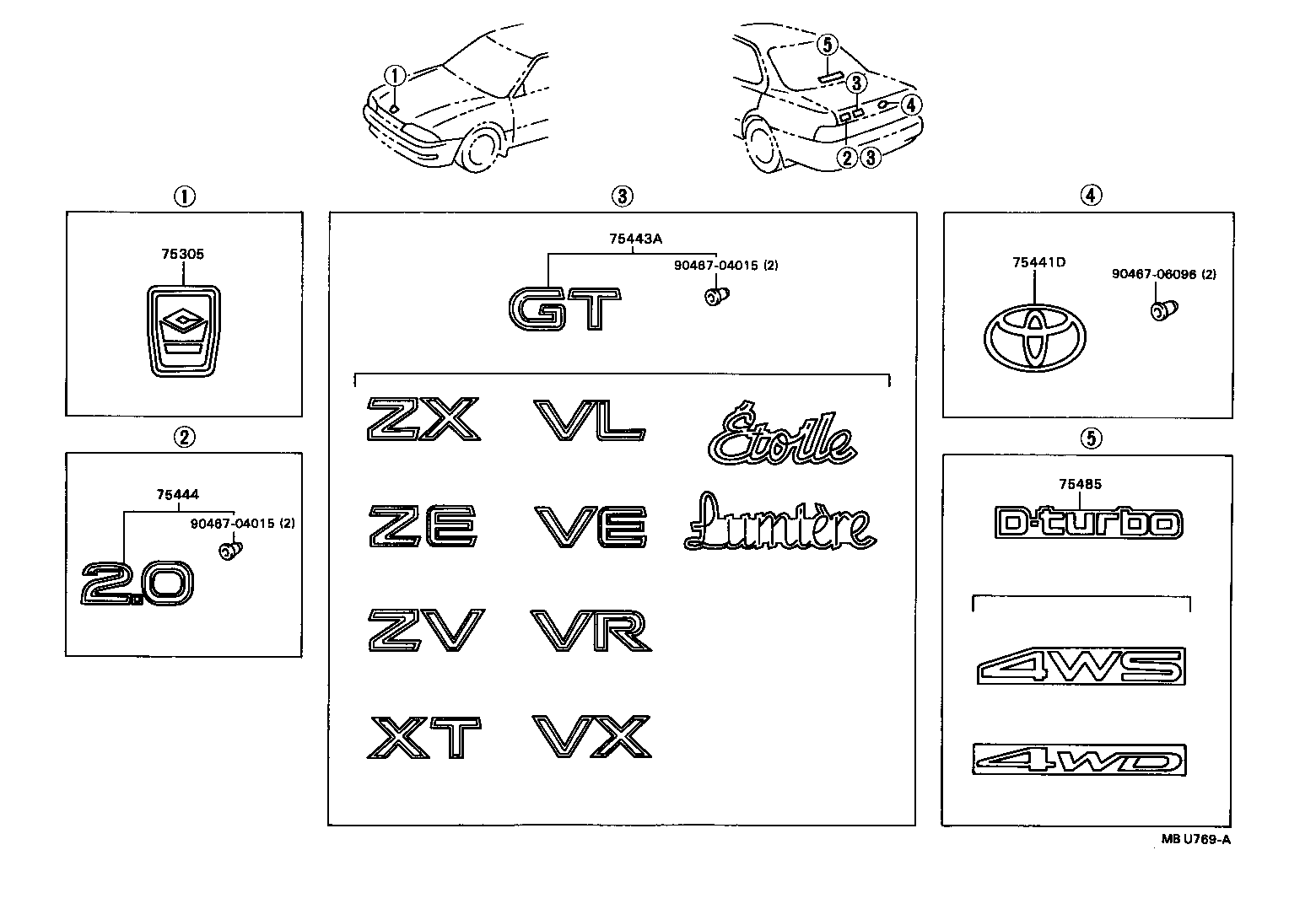

Click highlighted areas on diagram

diagram 75305 75441D 75443A 75444 75485 9046704015 9046704015 9046706096
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-32030

CV30,SV3#..CAM

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-32120

CV30,SV3#..SED

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-32580

SV32,33..SED..GT

GT

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-32150

SV32,33,35..SED

2.0

 1
75485 - PLATE, BACK WINDOW NAME
75485-32110

SV33,VZV31,33

4WS

 1
Common parts
90467-04015
90467-06096
