SV33-AEMVF (1990)
Toyota Camry/Vista

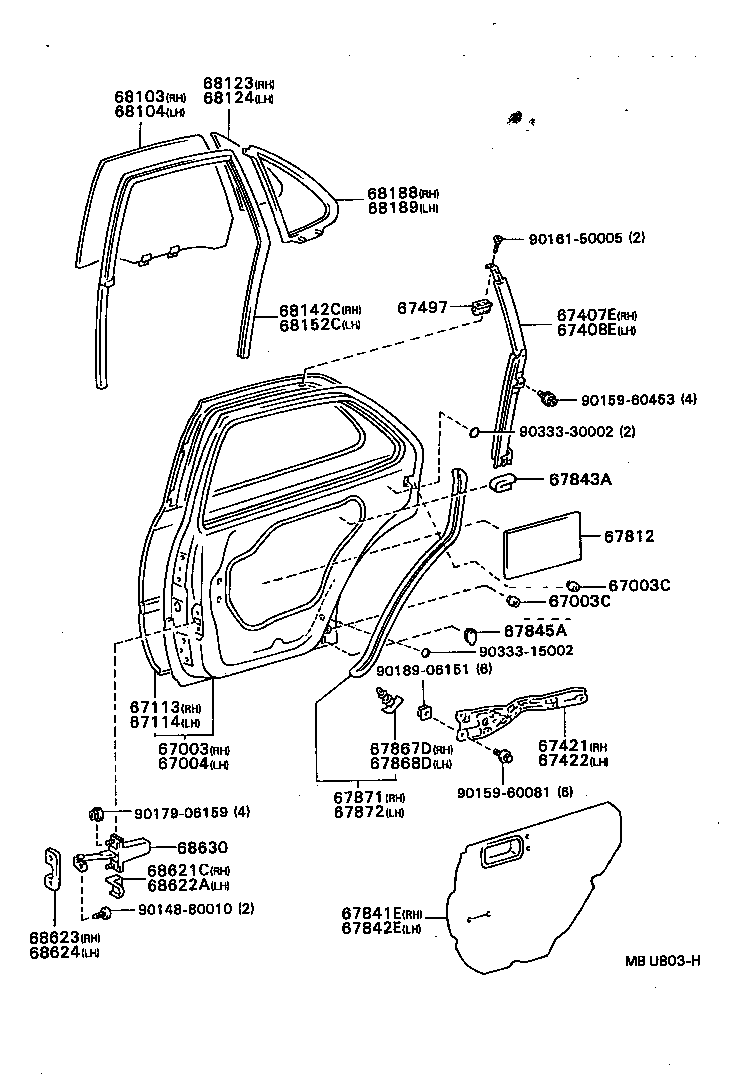

ILLUST NO. 1 OF 2(9007- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32290 |
CV30,SV3#..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#..SED |
4 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#..SED |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32290 |
CV30,SV3#..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32090 |
CV30,SV3#..SED |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32090 |
CV30,SV3#..SED |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-32060 |
CV30,SV3#..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-32060 |
CV30,SV3#..SED |
1 | ||
| 67421 - FRAME, REAR DOOR WINDOW, FRONT UPPER RH | ||||
| 67421-32050 |
CV30,SV3#..SED |
1 | ||
| 67422 - FRAME, REAR DOOR WINDOW, FRONT UPPER LH | ||||
| 67422-32050 |
CV30,SV3#..SED |
1 | ||
| 67497 - BRACKET, REAR DOOR FRAME | ||||
| 67497-32010 |
CV30,SV3#..SED |
2 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-12010 |
CV30,SV3#,VZV3# |
2 | ||
| 67812-12010 |
CV30,SV3# |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-32080 |
CV30,SV3#..SED |
1 | ||
| 67841-32081 |
CV30,SV3#..SED |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-32051 |
CV30,SV3#..SED |
1 | ||
| 67842-32050 |
CV30,SV3#..SED |
1 | ||
| 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 | ||||
| 67843-32020 |
CV30,SV3#..SED |
2 | ||
| 67845A - SUB-SHEET, REAR DOOR SERVICE HOLE | ||||
| 67845-32010 |
CV30,SV3#..SED |
4 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
CV30,SV3#..SED UPPER(TOP) |
1 | ||
| 67868-22020 |
CV30,SV3#..SED LOWER |
7 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
CV30,SV3#..SED UPPER(TOP) |
1 | ||
| 67867-22020 |
CV30,SV3#..SED LOWER |
7 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32090 |
CV30,SV3#..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32090 |
CV30,SV3#..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-32120 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-32130 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-32120 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68104-32130 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-32020 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123-32030 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-32020 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124-32030 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-32060 |
CV30,SV3#..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-32020 |
CV30,SV3#..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-32010 |
CV30,SV3#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-32010 |
CV30,SV3#..SED |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68623-32010 |
CV30,SV3#..SED |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68623-32010 |
CV30,SV3#..SED |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32050 |
CV30,SV3#..SED W(DOOR CHECK COVER),右側 |
1 | ||
| 68640-32040 |
CV30,SV3#..SED 左側 |
1 | ||
| Common parts | ||||
| 90148-80010 | ||||
| 90159-60081 | ||||
| 90159-60453 | ||||
| 90161-50005 | ||||
| 90179-06159 | ||||
| 90189-06151 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||

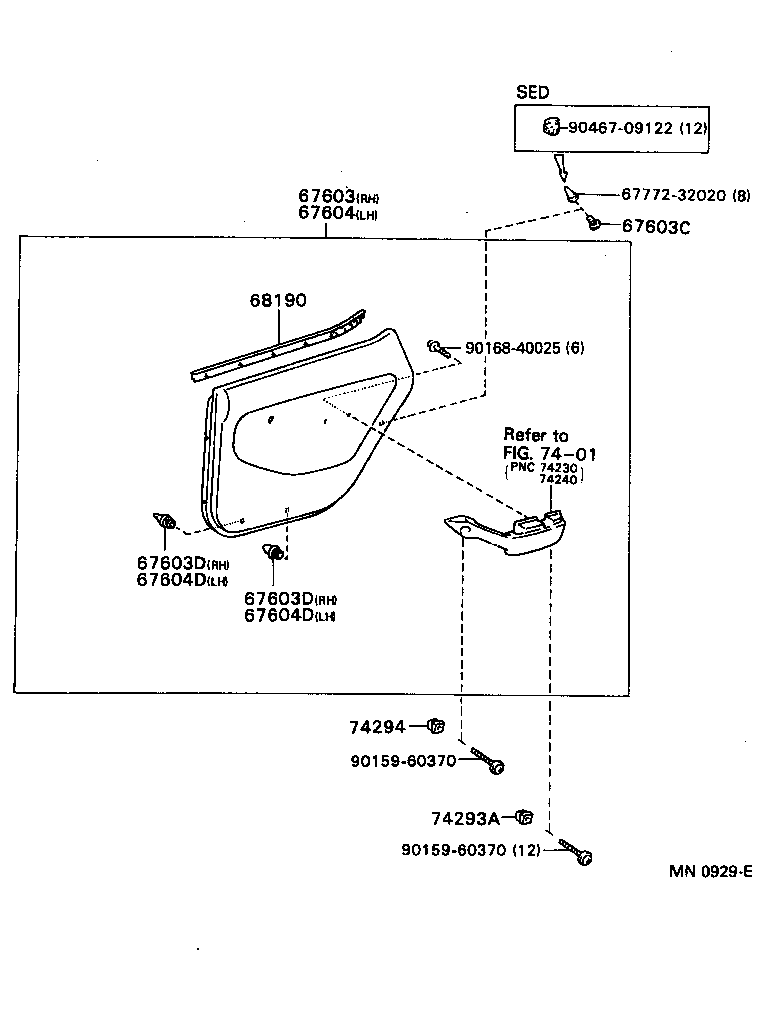

ILLUST NO. 2 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3H08002 |
SV32,33..SED..GT TAUPE,TRIM9# |
1 | ||
| 67630-3H08003 |
SV32,33..SED..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706623 |
CV30,SV3#..SED MEDIUM GRAY,TRIM1# |
8 | ||
| 90467-0706612 |
CV30,SV3#..SED TAUPE,TRIM9# |
8 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
CV30,SV3#..SED |
3 | ||
| 67771-32140 |
CV30,SV3#..SED |
3 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
CV30,SV3#..SED |
3 | ||
| 67771-32140 |
CV30,SV3#..SED |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3H08003 |
SV32,33..SED..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-3H08002 |
SV32,33..SED..GT TAUPE,TRIM9# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-32140 |
CV30,SV3#..SED |
3 | ||
| 67771-12050 |
CV30,SV3#..SED |
3 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-32140 |
CV30,SV3#..SED |
3 | ||
| 67771-12050 |
CV30,SV3#..SED |
3 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-32030 |
CV30,SV3#..SED 左側 |
1 | ||
| 68190-32050 |
CV30,SV3#..SED 右側 |
1 | ||
| 74293A - PLATE, REAR DOOR ARMREST, NO.1 | ||||
| 74293-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74294-32010 |
CV30,SV3#,VZV3# |
2 | ||
| Common parts | ||||
| 67772-32020 | ||||
| 90159-60370 | ||||
| 90168-40025 | ||||
| 90467-09122 | ||||
| Linked diagrams | ||||
| 7401 | ||||
