SV33-AEMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

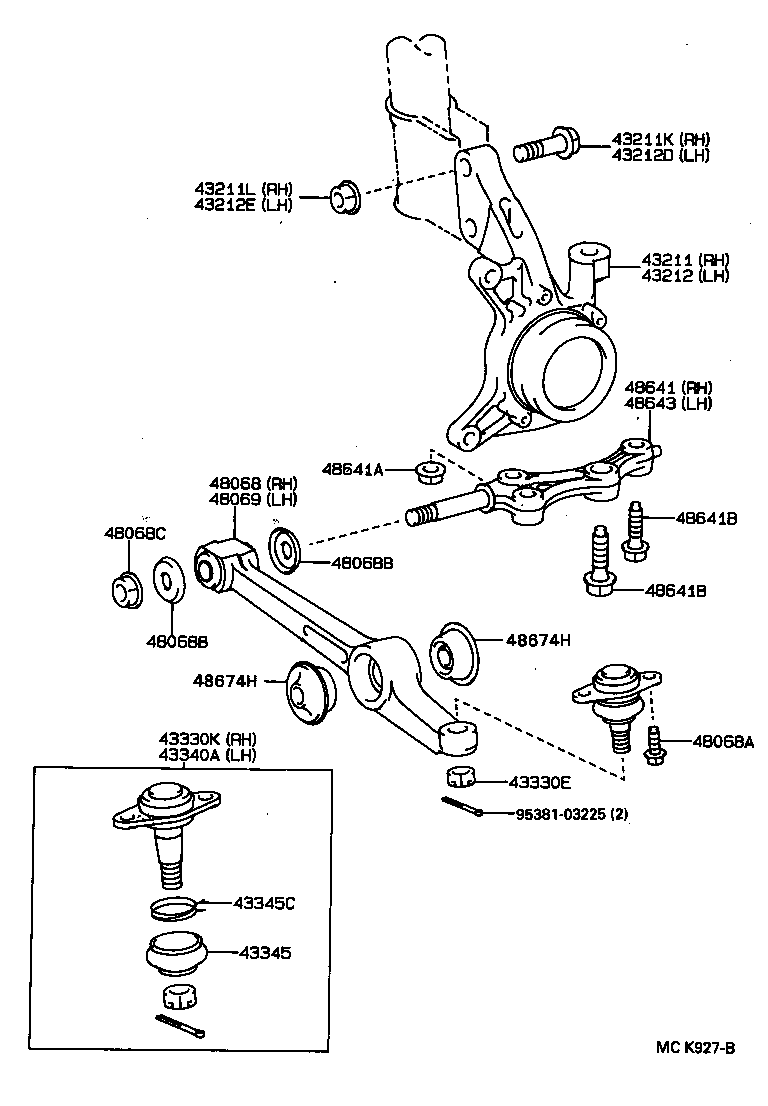

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330E 43330K 43340A 43345 43345C 48068 48068A 48068B 48068B 48068C 48069 48641 48641A 48641B 48641B 48643 48674H 48674H 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-32090

SV33,VZV31,33

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17001

SV33..GT,VX,ZX;CV30,SV30,32,35,VZV3#

外径=17

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-17001

SV33..GT,VX,ZX;CV30,SV30,32,35,VZV3#

 2
43212 - KNUCKLE, STEERING, LH
43212-32090

SV33,VZV31,33

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17001

CV30,SV3#,VZV3#

外径=17

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-17001

CV30,SV3#,VZV3#

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90171-14002

CV30,SV3#,VZV3#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39275

CV30,SV3#,VZV3#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-39275

CV30,SV3#,VZV3#

 1
43345 - COVER, LOWER BALL JOINT DUST
43345-32030

CV30,SV3#,VZV3#

 2
43345C - WIRE (FOR LOWER BALL JOINT DUST COVER)
90580-10002

CV30,SV3#,VZV3#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-32050

CV30,SV3#,VZV3#

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90105-12142

CV30,SV3#,VZV3#

 4
48068B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)
90948-02088

CV30,SV3#,VZV3#

ﾘﾔ

 2
90948-02103

CV30,SV3#,VZV3#

ﾌﾛﾝﾄ

 2
48068B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)
90948-02088

CV30,SV3#,VZV3#

ﾘﾔ

 2
90948-02103

CV30,SV3#,VZV3#

ﾌﾛﾝﾄ

 2
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90179-16004

CV30,SV3#,VZV3#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-32050

CV30,SV3#,VZV3#

 1
48641 - SHAFT, LOWER ARM, RH
48641-32020

CV30,SV30,32,33,VZV3#

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14043

CV30,SV3#,VZV3#

 4
48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT)
90105-14079

CV30,SV3#,VZV3#

*14−1.50PX70−30

 2
90105-14076

CV30,SV3#,VZV3#

*14−1.50PX83−36

 2
48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT)
90105-14079

CV30,SV3#,VZV3#

*14−1.50PX70−30

 2
90105-14076

CV30,SV3#,VZV3#

*14−1.50PX83−36

 2
48643 - SHAFT, LOWER ARM, LH
48643-32020

CV30,SV30,32,33,VZV3#

 1
48674H - CUSHION, STRUT BAR
48674-32120

CV30,SV3#,VZV3#

 4
48674H - CUSHION, STRUT BAR
48674-32120

CV30,SV3#,VZV3#

 4
Common parts
95381-03225
