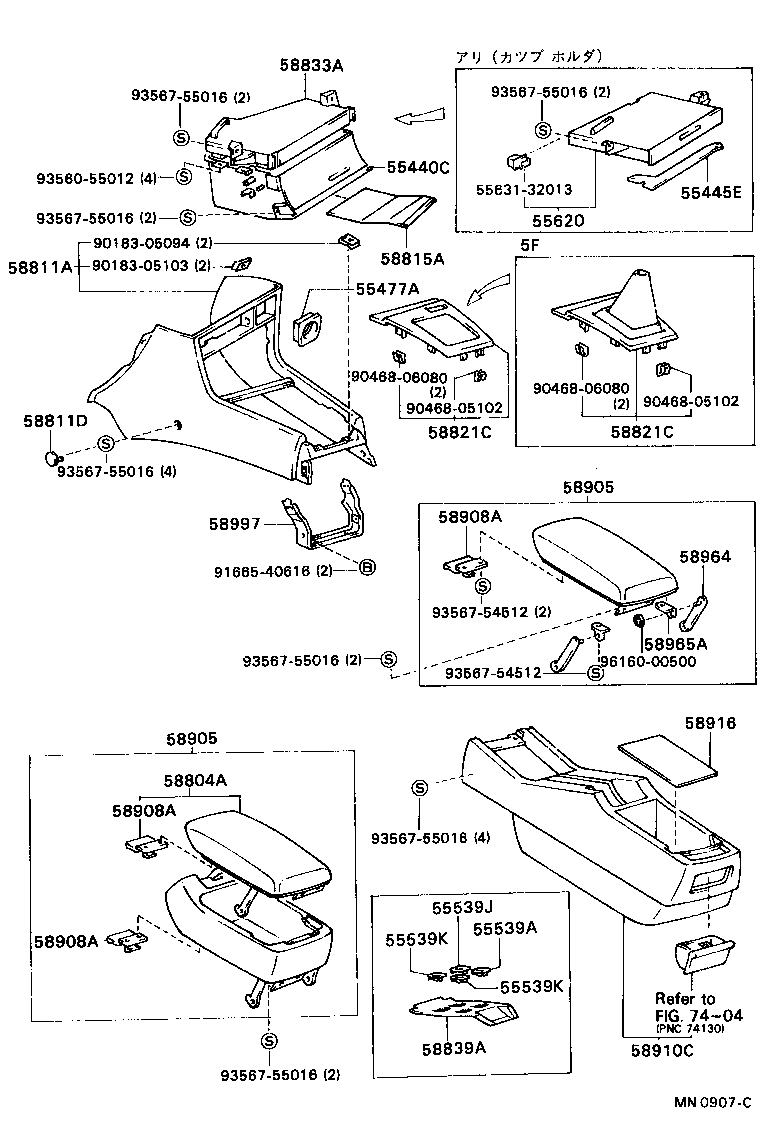

SV33-AEMMK (1990)
Toyota Camry/Vista
(9007- )SV35 ; (9007- )4FC..GT ; (9007-)CV30,SV30,32,33,VZV30,31..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55440-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 55440-32040E0 |
CV30,SV3#,VZV3# OAK,TRIM4# |
1 | ||
| 55440-32040K0 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55440-32040B0 |
CV30,SV3#,VZV3# MI.GRAY,TRIM1# |
1 | ||
| 55445E - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 55445-32020 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 55477-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55477-32040E0 |
CV30,SV3#,VZV3# OAK,TRIM4# |
1 | ||
| 55477-32040S4 |
CV30,SV3#,VZV3# MI.GRAY,TRIM1# |
1 | ||
| 55477-32040K0 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-3203003 |
CV30,SV3#,VZV30,31 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203016 |
VZV32,33 SABLE,TRIM4# |
1 | ||
| 55539-3203003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203012 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3203003 |
VZV32,33 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203012 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539-32030E0 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO OAK,TRIM4# |
1 | ||
| 55539-3203012 |
VZV32,33 TAUPE,TRIM9# |
1 | ||
| 55539-32030S4 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO MI.GRAY,TRIM1# |
1 | ||
| 55539-32030K0 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO TAUPE,TRIM9# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-3203012 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 55539-3203003 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203016 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,SABLE,TRIM4# |
1 | ||
| 55539-3204002 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3203003 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,MEDIUM GARY,TRIM1# |
1 | ||
| 55539-32030E0 |
SV35;CV30,SV30,32,33..5F OAK,TRIM4# |
1 | ||
| 55539-3203012 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,TAUPE,TRIM9# |
1 | ||
| 55539-32030K0 |
SV35;CV30,SV30,32,33..5F TAUPE,TRIM9# |
1 | ||
| 55539-32030S4 |
SV35;CV30,SV30,32,33..5F MI.GRAY,TRIM1# |
1 | ||
| 55539-32040E2 |
SV35,VZV3#;CV30,SV30,32,33..5F ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),OAK,TRIM4# |
1 | ||
| 55539-32040K0 |
SV35,VZV3#;CV30,SV30,32,33..5F ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),TAUPE,TRIM9# |
1 | ||
| 55539-32040S4 |
SV35,VZV3#;CV30,SV30,32,33..5F ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),MI.GRAY,TRIM1# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV3#;VZV3#..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV3#,VZV30,31 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
VZV32,33 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV3#;VZV3#..5F TAUPE,TRIM9# |
1 | ||
| 55539-3204006 |
VZV32,33 SABLE,TRIM4# |
1 | ||
| 55539-3204002 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
VZV32,33 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-32040E2 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO OAK,TRIM4# |
1 | ||
| 55539-32040S4 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO MI.GRAY,TRIM1# |
1 | ||
| 55539-32040K0 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO TAUPE,TRIM9# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV3#;VZV3#..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV3#,VZV30,31 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
VZV32,33 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV3#;VZV3#..5F TAUPE,TRIM9# |
1 | ||
| 55539-3204006 |
VZV32,33 SABLE,TRIM4# |
1 | ||
| 55539-3204002 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
VZV32,33 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-32040E2 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO OAK,TRIM4# |
1 | ||
| 55539-32040S4 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO MI.GRAY,TRIM1# |
1 | ||
| 55539-32040K0 |
CV30,SV30,35;SV32,33..SED;SV32,33..HT..5F;SV32,33..HT..4FC..ETO TAUPE,TRIM9# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-3202002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 55618-3202003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 55618-32020B0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX MI.GRAY,TRIM1# |
1 | ||
| 55618-32021B0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX MI.GRAY,TRIM1# |
1 | ||
| 55618-32021E0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 55618-32020E0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX OAK,TRIM4# |
1 | ||
| 55618-32020K0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 55618-32021K0 |
CV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3210006 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,SABLE,TRIM4# |
1 | ||
| 58804-3210002 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,TAUPE,TRIM9# |
1 | ||
| 58804-3210003 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-3203003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-3203002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 58810-32030K0 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 58810-32030E0 |
CV30,SV3#,VZV3# OAK,TRIM4# |
1 | ||
| 58810-32030S4 |
CV30,SV3#,VZV3# MI.GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90950-01702E0 |
CV30,SV3#,VZV3# OAK,TRIM4# |
2 | ||
| 90950-0170202 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
2 | ||
| 90950-0170203 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
2 | ||
| 90950-01702S4 |
CV30,SV3#,VZV3# MI.GRAY,TRIM1# |
2 | ||
| 90950-01702K0 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-3205002 |
CV30,SV3#,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 58821-32050E0 |
CV30,SV3#..5F OAK,TRIM4# |
1 | ||
| 58821-32050K0 |
CV30,SV3#..5F TAUPE,TRIM9# |
1 | ||
| 58821-3205003 |
CV30,SV3#,VZV30,31..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58821-32050S4 |
CV30,SV3#..5F MI.GRAY,TRIM1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-3205002 |
CV30,SV3#,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 58821-32050E0 |
CV30,SV3#..5F OAK,TRIM4# |
1 | ||
| 58821-32050K0 |
CV30,SV3#..5F TAUPE,TRIM9# |
1 | ||
| 58821-3205003 |
CV30,SV3#,VZV30,31..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58821-32050S4 |
CV30,SV3#..5F MI.GRAY,TRIM1# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3205002 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 58839-3205003 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3204006 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,SABLE,SABLE,TRIM4# |
1 | ||
| 58839-3204002 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,TAUPE,TAUPE,TRIM9# |
1 | ||
| 58839-3204003 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,MEDIUM GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-32050E0 |
SV35;CV30,SV30,32,33..5F OAK,TRIM4# |
1 | ||
| 58839-32050S4 |
SV35;CV30,SV30,32,33..5F MI.GRAY,TRIM1# |
1 | ||
| 58839-32050K0 |
SV35;CV30,SV30,32,33..5F TAUPE,TRIM9# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3218002 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9# |
1 | ||
| 58905-3218003 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 58905-32180E0 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) OAK,TRIM4# |
1 | ||
| 58905-32180S4 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) MI.GRAY,TRIM1# |
1 | ||
| 58905-32180K0 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) TAUPE,TRIM9# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3218002 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9# |
1 | ||
| 58905-3218003 |
SV35..ETO,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 58905-32180E0 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) OAK,TRIM4# |
1 | ||
| 58905-32180S4 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) MI.GRAY,TRIM1# |
1 | ||
| 58905-32180K0 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) TAUPE,TRIM9# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32020 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32020 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32020 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-3203002 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 58910-3203003 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58910-3201003 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 58910-3201006 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,SABLE,TRIM4# |
1 | ||
| 58910-3201002 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99,TAUPE,TRIM9# |
1 | ||
| 58910-32030E0 |
SV35;CV30,SV30,32,33..5F OAK,TRIM4# |
1 | ||
| 58910-32030K0 |
SV35;CV30,SV30,32,33..5F TAUPE,TRIM9# |
1 | ||
| 58910-32030S4 |
SV35;CV30,SV30,32,33..5F MI.GRAY,TRIM1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32090 |
VZV32,33 ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(ﾚｻﾞ- ｼ-ﾄ)-*99 |
1 | ||
| 58916-32120 |
CV30,SV3#,VZV3# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) 左側 |
1 | ||
| 58964-32040 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) 右側 |
1 | ||
| 58964-16010 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) 左側 |
1 | ||
| 58965-16010 |
SV35..ETO,LUM;CV30,SV30,32,33..5F..(ETO,LUM,VL,XT) 右側 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-20020 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) 右側 |
1 | ||
| 58965-12010 |
SV35..ETO,LUM,ZV;CV30,SV30,32,33..5F..(ETO,LUM,VE,VL,XT,ZV) 左側 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-32020 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90468-05102 | ||||
| 90468-06080 | ||||
| 91665-40616 | ||||
| 93560-55012 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
