SV32-BTPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

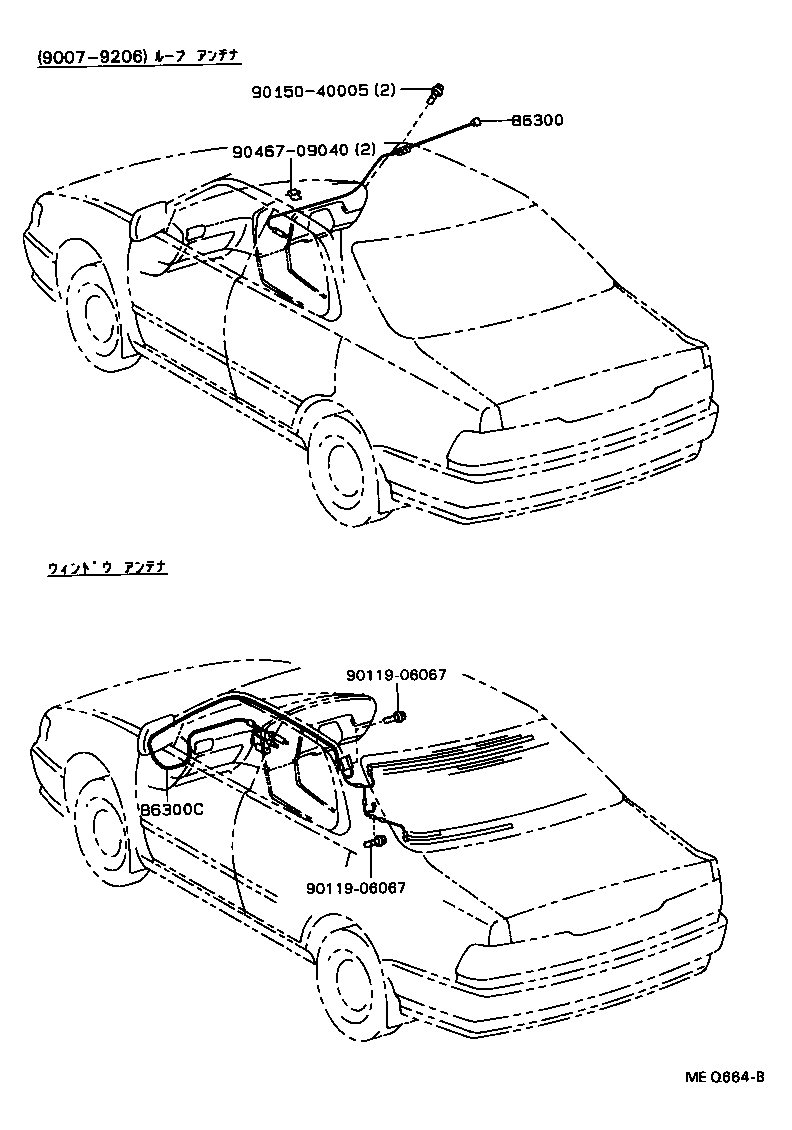

Click highlighted areas on diagram

diagram 86300 86300C 9011906067 9011906067 9015040005 9046709040
Part # Description Qty Price
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-32340

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *AF ﾂｷ ﾗｼﾞｵ)

 1
86300-32350

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

ｱﾘ(*MR & *AF ﾂｷ ﾗｼﾞｵ & *WDL)

 1
86300-32320

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

ｱﾘ(*AF ﾂｷ ﾗｼﾞｵ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-32360

CV30,SV3#,VZV31..HT..(GT,PRO,VR,VX)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-32310

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

ｱﾘ(*AF ﾂｷ ﾗｼﾞｵ)

 1
86300-32330

CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
86300-32370

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-32340

SV30..HT..5F..VR;CV30,SV32,33,35..HT..(GT,VR,VX)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & *AF ﾂｷ ﾗｼﾞｵ)

 1
86300-32320

CV30,SV3#..HT..(GT,VR,VX)

ｱﾘ(*AF ﾂｷ ﾗｼﾞｵ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
86300-32350

SV30..HT..5F..VR;CV30,SV32,33,35..HT..(GT,VR,VX)

ｱﾘ(*MR & *AF ﾂｷ ﾗｼﾞｵ & *WDL)

 1
86300-32310

CV30,SV3#..HT..(GT,VR,VX)

ｱﾘ(*AF ﾂｷ ﾗｼﾞｵ)

 1
86300-32300

CV30,SV3#,VZV30,31..HT

 1
Common parts
90119-06067
90150-40005
90467-09040
