SV32-BTPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

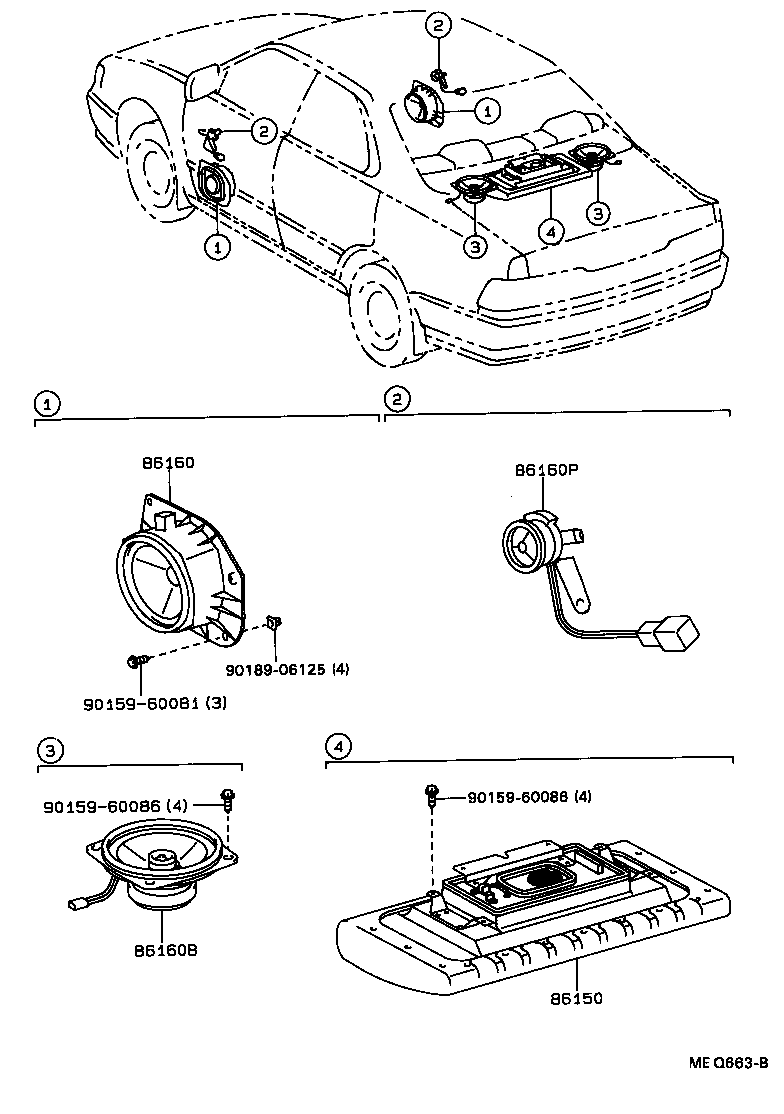

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160P 9015960081 9015960086 9015960086 9018906125
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-32200

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-32420

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

右側

 1
86160-32430

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

左側

 1
86160B - SPEAKER ASSY, REAR
86160-32270

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*AF CD ﾌﾟﾚ-ﾔ ﾂｷ 2DIN ﾗｼﾞｵ)

 2
86160-32260

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-32250

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

左側

 1
86160-32240

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

右側

 1
86160-32250

CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX

左側

 1
86160-32240

CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX

右側

 1
Common parts
90159-60081
90159-60086
90189-06125
