SV32-BTPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)GT,PRO,VR,VX,ZE,ZX

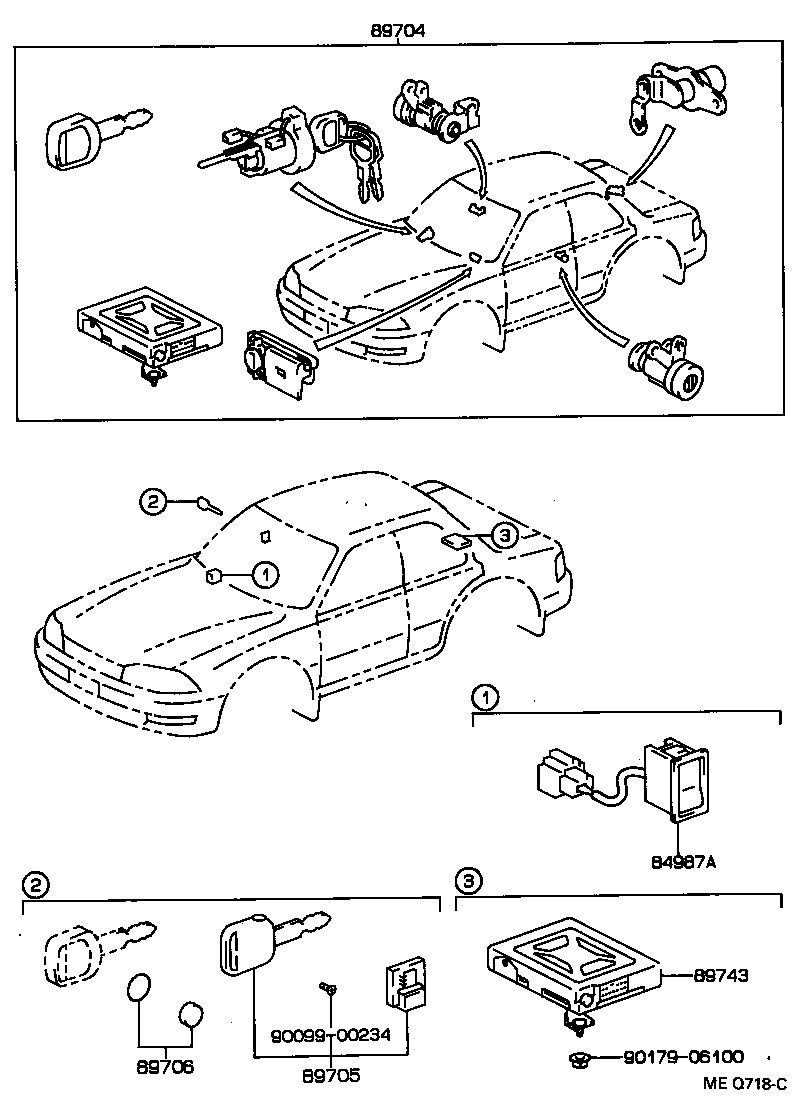

Click highlighted areas on diagram

diagram 84987A 89704 89705 89706 89743 9009900234 9017906100
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-32020

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
89704 - CONTROL SET, WIRELESS DOOR LOCK
89704-32070

CV30,SV3#..HT..(GT,VR,VX)

 1
89705 - TRANSMITTER, DOOR CONTROL
89705-32050

CV30,SV3#..HT..(GT,VR,VX)

 1
89706 - BATTERY SET, TRANSMITTER
89706-30010

CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX

 1
89706-30010

CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
89743 - RECEIVER, DOOR CONTROL
89743-32040

CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)

 1
Common parts
90099-00234
90179-06100
