SV32-BTPVF (1990)
Toyota Camry/Vista

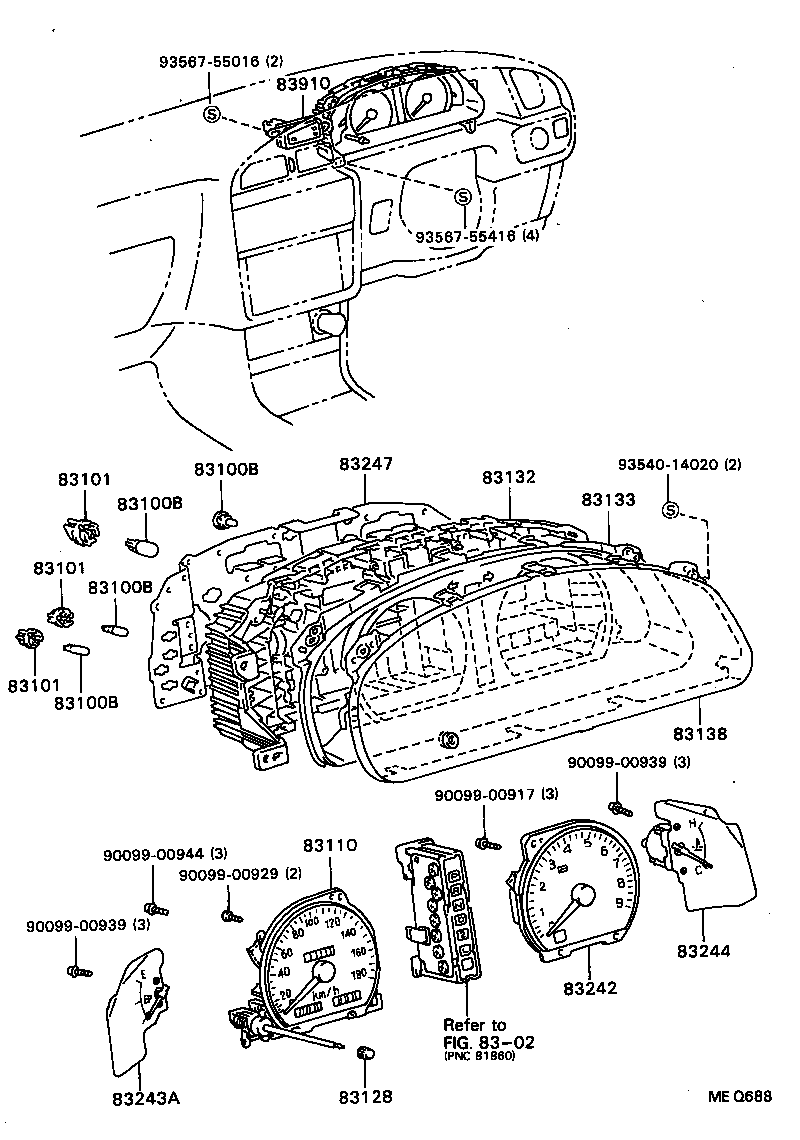

ILLUST NO. 1 OF 2(9007-9206)ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX ; (9206- )
ANALOG W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SV32,33,VZV3#..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-14040 |
SV35..4FC;SV32,33,VZV3# BULB:12V 1.4W |
15 | ||
| 83101-14030 |
CV30,SV3#,VZV3# BULB:12V 3.4W |
4 | ||
| 83101-03202 |
SV32,33..GT ｱﾘ(TEMS) |
1 | ||
| 83101-32020 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14030 |
CV30,SV3# BULB:12V 3.4W |
4 | ||
| 83101-14040 |
SV32,33,VZV32,33..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-32020 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14040 |
SV32,33;SV35..4FC BULB:12V 1.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SV32,33,VZV3#..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-14040 |
SV35..4FC;SV32,33,VZV3# BULB:12V 1.4W |
15 | ||
| 83101-14030 |
CV30,SV3#,VZV3# BULB:12V 3.4W |
4 | ||
| 83101-03202 |
SV32,33..GT ｱﾘ(TEMS) |
1 | ||
| 83101-32020 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14030 |
CV30,SV3# BULB:12V 3.4W |
4 | ||
| 83101-14040 |
SV32,33,VZV32,33..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-32020 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14040 |
SV32,33;SV35..4FC BULB:12V 1.4W |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SV32,33,VZV3#..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-14040 |
SV35..4FC;SV32,33,VZV3# BULB:12V 1.4W |
15 | ||
| 83101-14030 |
CV30,SV3#,VZV3# BULB:12V 3.4W |
4 | ||
| 83101-03202 |
SV32,33..GT ｱﾘ(TEMS) |
1 | ||
| 83101-32020 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14030 |
CV30,SV3# BULB:12V 3.4W |
4 | ||
| 83101-14040 |
SV32,33,VZV32,33..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-32020 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14040 |
SV32,33;SV35..4FC BULB:12V 1.4W |
15 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32660 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-32170 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-14510 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3H170 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83132-3H130 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83132-3H170 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32790 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83138-32130 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32540 |
SV32,33..GT ｱﾘ(TEMS) |
1 | ||
| 83242-32560 |
SV32,33..GT |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-3H190 |
SV30,32,33,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32650 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 83244-32650 |
CV30,SV30,32,33,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-3H490 |
SV35..5F..(VX,ZX);SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83247-3H350 |
SV32,33,VZV3# |
1 | ||
| 83247-3H330 |
SV32,33..GT,VX,ZX ｱﾘ(TEMS) |
1 | ||
| 83247-3H330 |
SV32,33,VZV3#..GT,PRO,VX,ZX ｱﾘ(TEMS) |
1 | ||
| 83247-3H350 |
SV32,33 |
1 | ||
| 83247-3H490 |
SV35..5F..(VX,ZX);SV30,32,33,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32110 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00944 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93567-55416 | ||||
| Linked diagrams | ||||
| 8302 | ||||

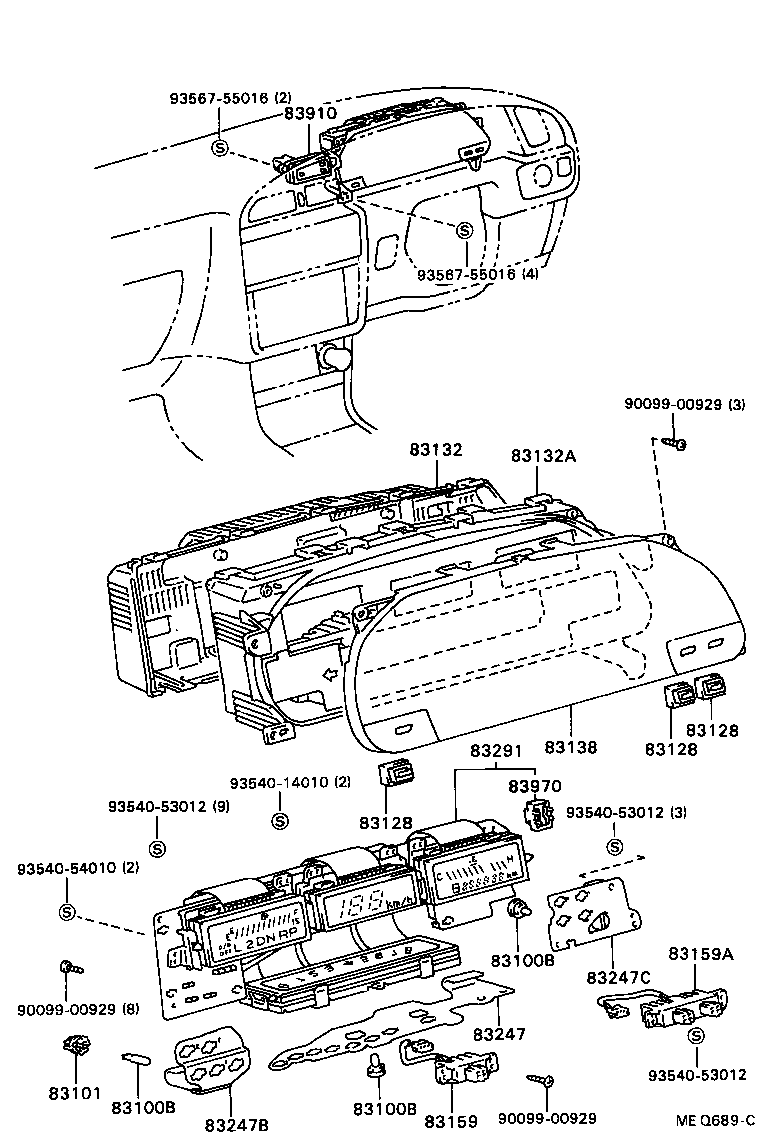

ILLUST NO. 1 OF 2(9007-9406)SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX
DIDITAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-32010 |
CV30,SV3#,VZV3# 14V 3.0W,SOCKET:83101-32020 |
1 | ||
| 83109-24020 |
CV30,SV3#,VZV3# 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 90981-11018 |
SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83109-24010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
SV35..4FC;SV32,33,VZV3# 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
14 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV3#..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 83119-24070 |
SV35..4FC..(VX,ZX);SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.4W ｿｹｯﾄ付き,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
12 | ||
| 90981-11018 |
SV32,33,VZV32,33..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ無し,ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,SOCKET:83101-14040 |
5 | ||
| 83101-20080 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX 12V 1.4W,ｿｹｯﾄ付き |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
SV32,33,VZV3#..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-14040 |
SV35..4FC;SV32,33,VZV3# BULB:12V 1.4W |
15 | ||
| 83101-14030 |
CV30,SV3#,VZV3# BULB:12V 3.4W |
4 | ||
| 83101-03202 |
SV32,33..GT ｱﾘ(TEMS) |
1 | ||
| 83101-32020 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14030 |
CV30,SV3# BULB:12V 3.4W |
4 | ||
| 83101-14040 |
SV32,33,VZV32,33..GT,PRO,VX,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ,BULB:12V 1.4W |
5 | ||
| 83101-32020 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX BULB:12V 3W |
1 | ||
| 83101-14040 |
SV32,33;SV35..4FC BULB:12V 1.4W |
15 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-32170 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-14510 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-32170 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-14510 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-32170 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
3 | ||
| 83128-14510 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3H170 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83132-3H130 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83132-3H170 |
CV30,SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-3H150 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83132-3H150 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83138-32130 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-32150 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83159-32170 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83159-32170 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-3H490 |
SV35..5F..(VX,ZX);SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83247-3H350 |
SV32,33,VZV3# |
1 | ||
| 83247-3H330 |
SV32,33..GT,VX,ZX ｱﾘ(TEMS) |
1 | ||
| 83247-3H330 |
SV32,33,VZV3#..GT,PRO,VX,ZX ｱﾘ(TEMS) |
1 | ||
| 83247-3H350 |
SV32,33 |
1 | ||
| 83247-3H490 |
SV35..5F..(VX,ZX);SV30,32,33,VZV32,33..GT,PRO,VR,VX,ZE,ZX ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-3H530 |
SV32,33,VZV32,33..GT,PRO,VX,ZX |
1 | ||
| 83247-3H530 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83247-3H590 |
SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83247-3H590 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-32170 |
SV32,33..GT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32110 |
CV30,SV3#,VZV3# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
SV35..4FC..(VX,ZX);SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 93540-14010 | ||||
| 93540-53012 | ||||
| 93540-54010 | ||||
| 93567-55016 | ||||

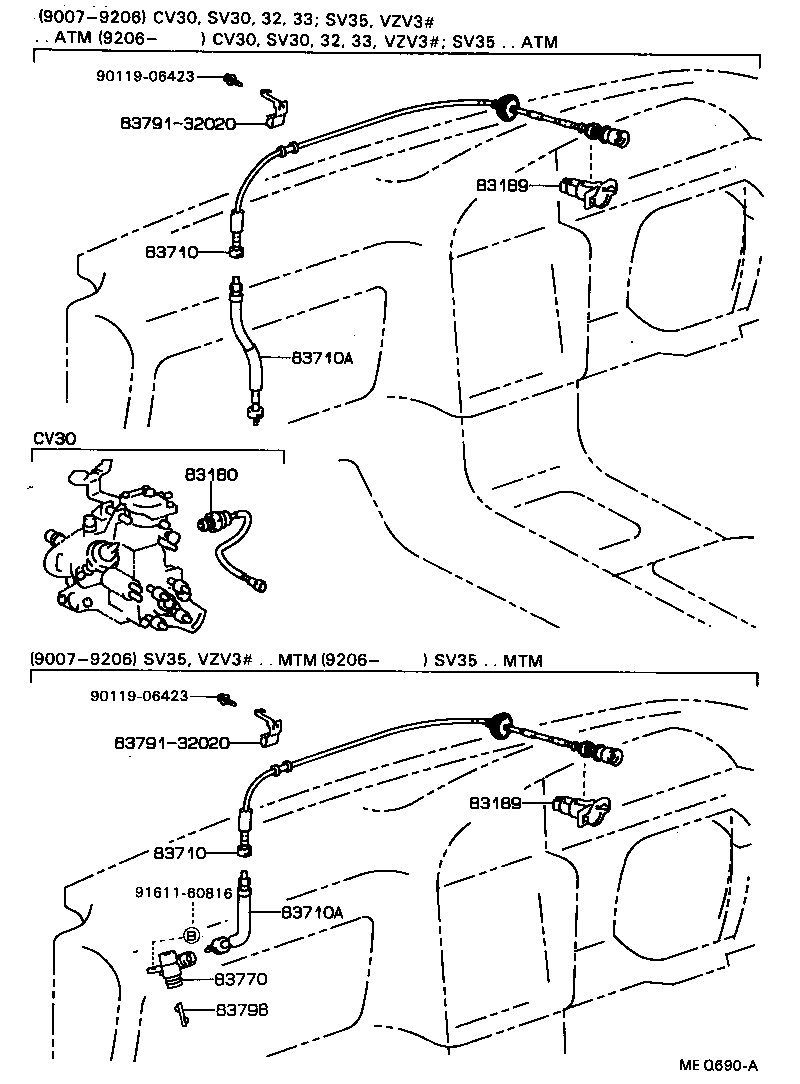

ILLUST NO. 2 OF 2(9007-9406)
SPEEDOMETER CABLE(ANALOG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
CV30,SV3#,VZV3# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
CV30,SV3#,VZV3# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32310 |
VZV3#..4FC;SV3#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83710-32330 |
SV3#,VZV32,33;VZV30,31..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32310 |
VZV3#..4FC;SV3#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83710-32330 |
SV3#,VZV32,33;VZV30,31..4FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32130 |
SV35..4FC;CV30,SV30,32,33,VZV3# |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32130 |
SV35..4FC;CV30,SV30,32,33,VZV3# |
1 | ||
| Common parts | ||||
| 83791-32020 | ||||
| 90119-06423 | ||||
| 91611-60816 | ||||

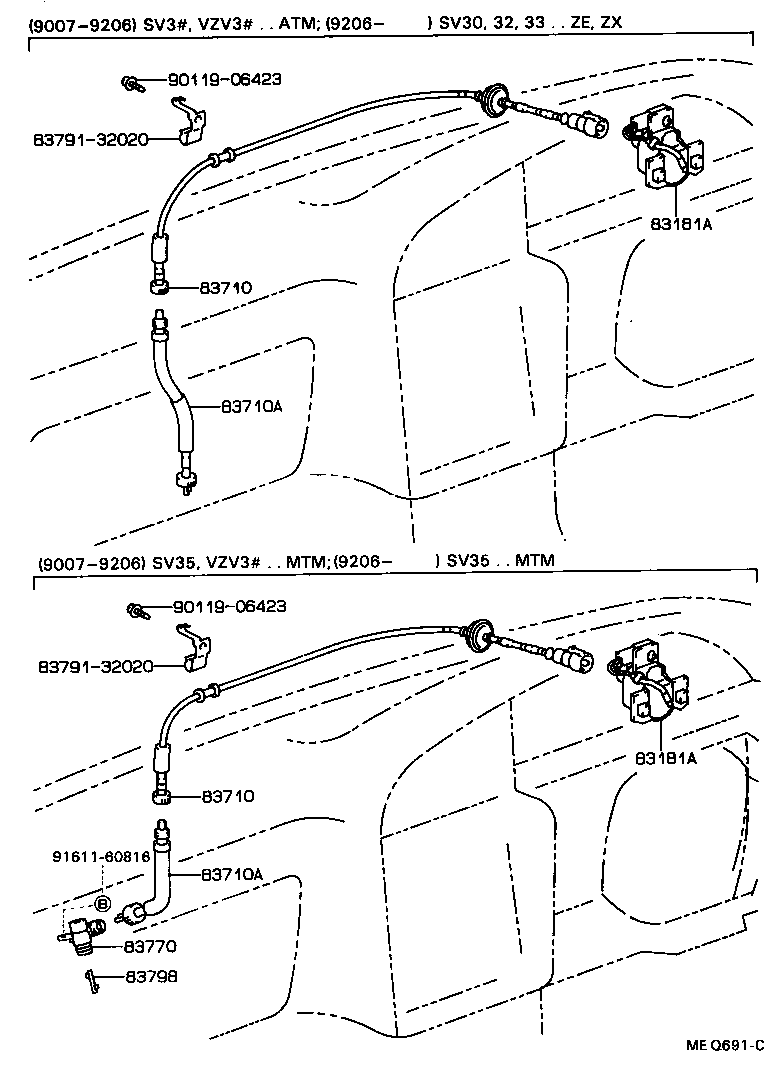

ILLUST NO. 2 OF 2(9007-9406)SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX
SPEEDOMETER CABLE(DIGITAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-32010 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-32010 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32310 |
VZV3#..4FC;SV3#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83710-32330 |
SV3#,VZV32,33;VZV30,31..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32310 |
VZV3#..4FC;SV3#..GT,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83710-32330 |
SV3#,VZV32,33;VZV30,31..4FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32130 |
SV35..4FC;CV30,SV30,32,33,VZV3# |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32130 |
SV35..4FC;CV30,SV30,32,33,VZV3# |
1 | ||
| Common parts | ||||
| 83791-32020 | ||||
| 90119-06423 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
