SV32-BTPNK (1992)
Toyota Camry/Vista

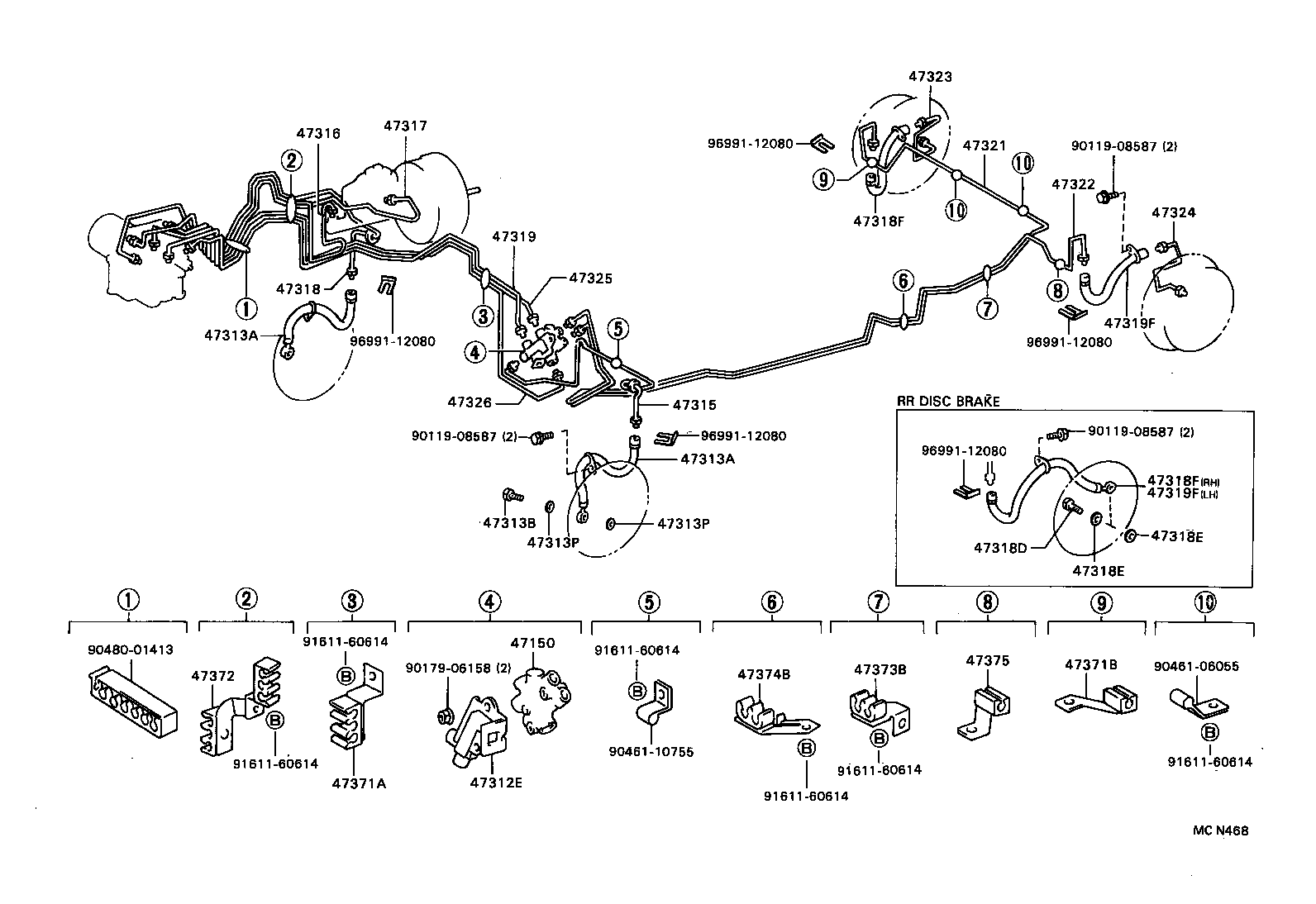

ILLUST NO. 1 OF 2(9206- )SV3#,VZV3#
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12110 |
CV30,SV32,33..ETO,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 47150-20270 |
CV30,SV32,33 ｱﾘ(*66) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10209 |
CV30,SV3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02623 |
CV30,SV3#,VZV3# 右側 |
1 | ||
| 90947-02640 |
CV30,SV3#,VZV3# 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02623 |
CV30,SV3#,VZV3# 右側 |
1 | ||
| 90947-02640 |
CV30,SV3#,VZV3# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV30,SV3#,VZV3# |
2 | ||
| 90401-10015 |
CV30,SV3#,VZV3# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV30,SV3#,VZV3# |
4 | ||
| 47389-30010 |
SV3#,VZV3# ｱﾘ(*66) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV30,SV3#,VZV3# |
4 | ||
| 47389-30010 |
SV3#,VZV3# ｱﾘ(*66) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32110 |
CV30,SV3#,VZV3# |
1 | ||
| 47315-32130 |
CV30,SV3#,VZV3# ｱﾘ(*66) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-32040 |
SV3# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-32040 |
SV3# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-32030 |
SV3# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
SV32,33,35,VZV3# |
2 | ||
| 90401-10015 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
SV32,33,35,VZV3# |
4 | ||
| 47389-30010 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
SV32,33,35,VZV3# |
4 | ||
| 47389-30010 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02650 |
SV32,VZV30,32 |
1 | ||
| 90947-02705 |
SV32,VZV32 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02650 |
SV32,VZV30,32 |
1 | ||
| 90947-02705 |
SV32,VZV32 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-32040 |
SV3# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02651 |
SV32,VZV30,32 |
1 | ||
| 90947-02706 |
SV32,VZV32 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02651 |
SV32,VZV30,32 |
1 | ||
| 90947-02706 |
SV32,VZV32 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32140 |
CV30,SV3#,VZV3# |
1 | ||
| 47321-32120 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32110 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 47322-32130 |
CV30,SV3#,VZV3# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47323-32090 |
SV3# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47324-32100 |
SV3# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32080 |
CV30,SV3#,VZV3# |
1 | ||
| 47371-32090 |
CV30,SV3#,VZV3# ｱﾘ(*66) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-32100 |
CV30,SV3# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-32110 |
CV30,SV3#,VZV3# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-32120 |
CV30,SV3#,VZV3# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-32140 |
CV30,SV30,32,33,VZV3# |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90461-10755 | ||||
| 90480-01413 | ||||
| 91611-60614 | ||||
| 96991-12080 | ||||

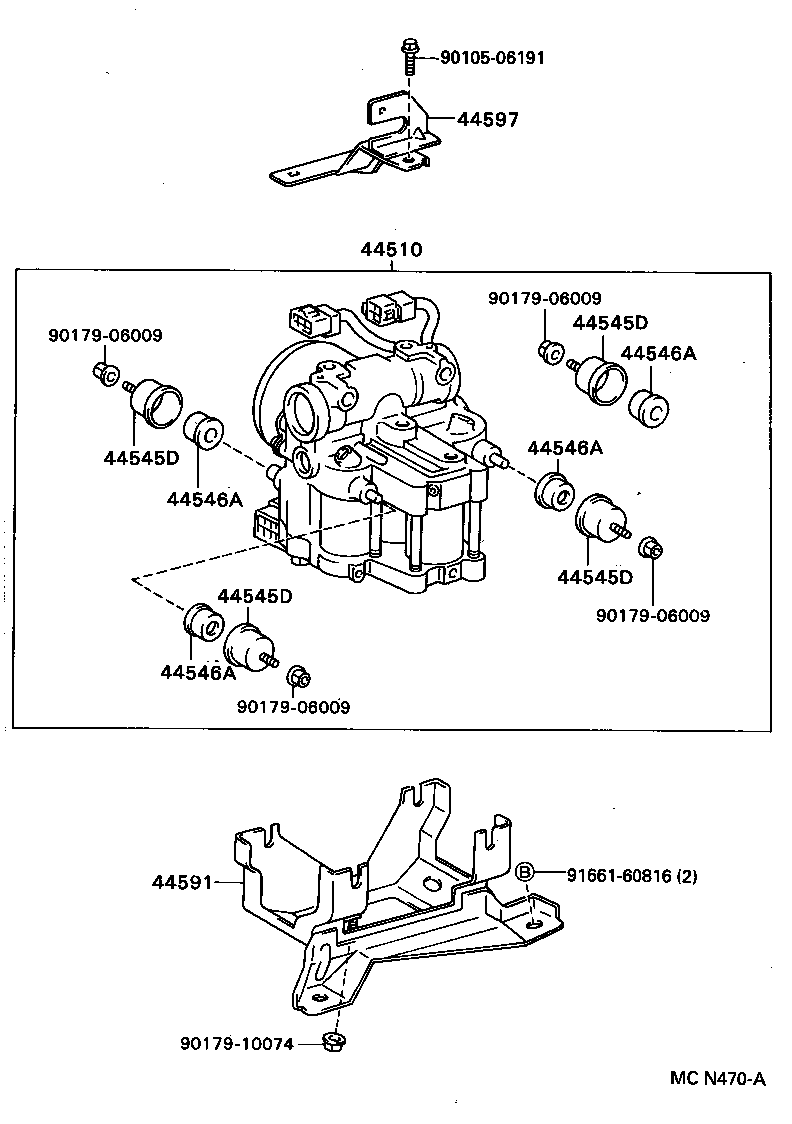

ILLUST NO. 2 OF 2(9206- )SV3#,VZV3#
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-32060 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 44510-32040 |
SV32,33,35,VZV30,31..ETO,GT,PRO,VX,ZV,ZX |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
CV30,SV3#,VZV3# |
4 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-32010 |
SV3#,VZV3# |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-32010 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90105-06191 | ||||
| 90179-06009 | ||||
| 90179-10074 | ||||
| 91661-60816 | ||||
