SV32-BTPGK (1990)
Toyota Camry/Vista

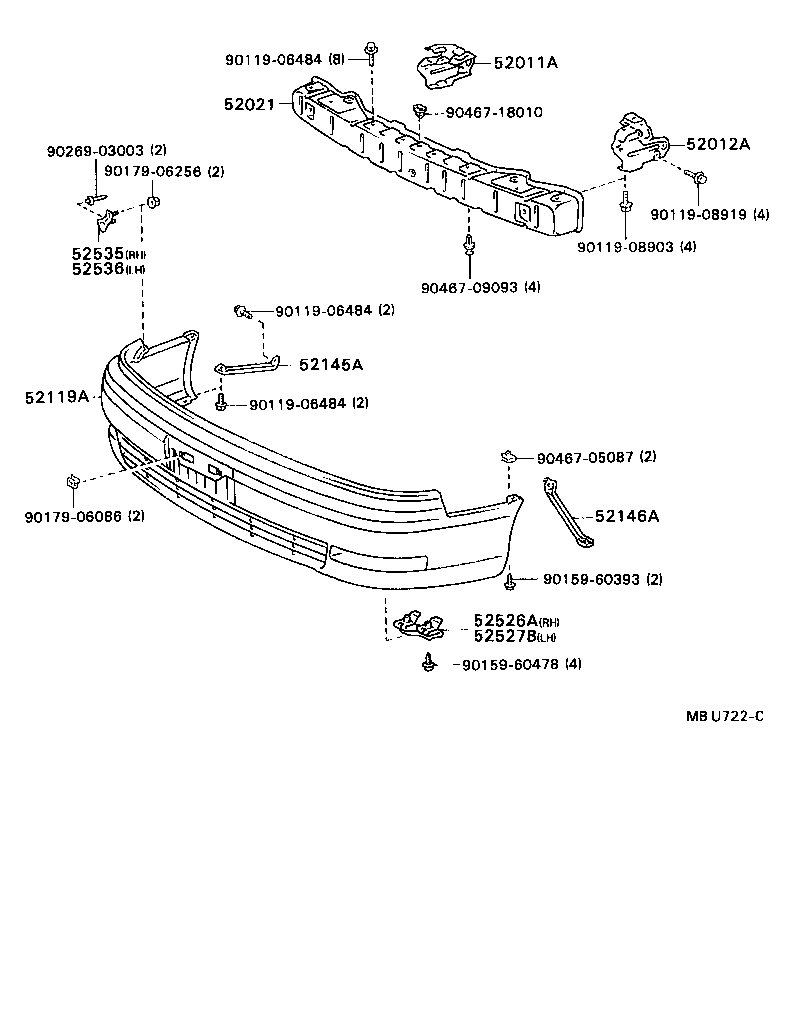

(9007-9206)CV30,SV3#..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-32100 |
CV30,SV3#..HT |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-32080 |
CV30,SV3#..HT |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32130 |
CV30,SV3#,VZV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3236013 |
CV30,SV3#..HT DARK BLUEISH GRAY M,191 |
1 | ||
| 52119-3236002 |
CV30,SV3#..HT RED MICA M,3J9 |
1 | ||
| 52119-3236008 |
CV30,SV3#..HT SUPER WHITE 2,040 |
1 | ||
| 52119-3236003 |
CV30,SV3#..HT AMETHYST SILVER M,920 |
1 | ||
| 52119-3238008 |
CV30,SV3#..HT..(GT,VR,VX) GRACIOUS PEARL TONNI,25R |
1 | ||
| 52119-3236007 |
CV30,SV3#..HT MED TURQUOISE OPAL,744 |
1 | ||
| 52119-3238003 |
CV30,SV3#..HT..(GT,VR,VX) DRESSY NIGHT TONNING,26R |
1 | ||
| 52119-32420A0 |
CV30,SV3#..HT SUPER WHITE 2,040 |
1 | ||
| 52119-3236017 |
CV30,SV3#..HT GRAYISH GREEN M,6K6 |
1 | ||
| 52119-32420B0 |
CV30,SV3#..HT DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32420E0 |
CV30,SV3#..HT LI BEIGE ME,4M3 |
1 | ||
| 52119-32420G0 |
CV30,SV3#..HT GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32420G2 |
CV30,SV3#..HT DK GREEN MICA,6M1 |
1 | ||
| 52119-32430G1 |
CV30,SV3#..HT..(VR,VX) GRACIOUS PEARLTONING,25R |
1 | ||
| 52119-32430G0 |
CV30,SV3#..HT..(VR,VX) OLIVE BREEZE TONING,25U |
1 | ||
| 52119-32460A0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),SUPER WHITE 2,040 |
1 | ||
| 52119-32420K0 |
CV30,SV3#..HT GRAYISH PURPLE M,923 |
1 | ||
| 52119-32460G0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32460K0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRAYISH PURPLE M,923 |
1 | ||
| 52119-32470G0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),OLIVE BREEZE TONING,25U |
1 | ||
| 52119-32460B0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32460G2 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),DK GREEN MICA,6M1 |
1 | ||
| 52119-32470G1 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRACIOUS PEARLTONING,25R |
1 | ||
| 52119-32460E0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),LI BEIGE ME,4M3 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-32040 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32081 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52526-32080 |
CV30,SV3#,VZV3# |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-32040 |
CV30,SV3#,VZV3# |
1 | ||
| 52527-32041 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-32060 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52535-32080 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52536-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| Common parts | ||||
| 90119-06484 | ||||
| 90119-08903 | ||||
| 90119-08919 | ||||
| 90159-60393 | ||||
| 90159-60478 | ||||
| 90179-06086 | ||||
| 90179-06256 | ||||
| 90269-03003 | ||||
| 90467-05087 | ||||
| 90467-09093 | ||||
| 90467-18010 | ||||

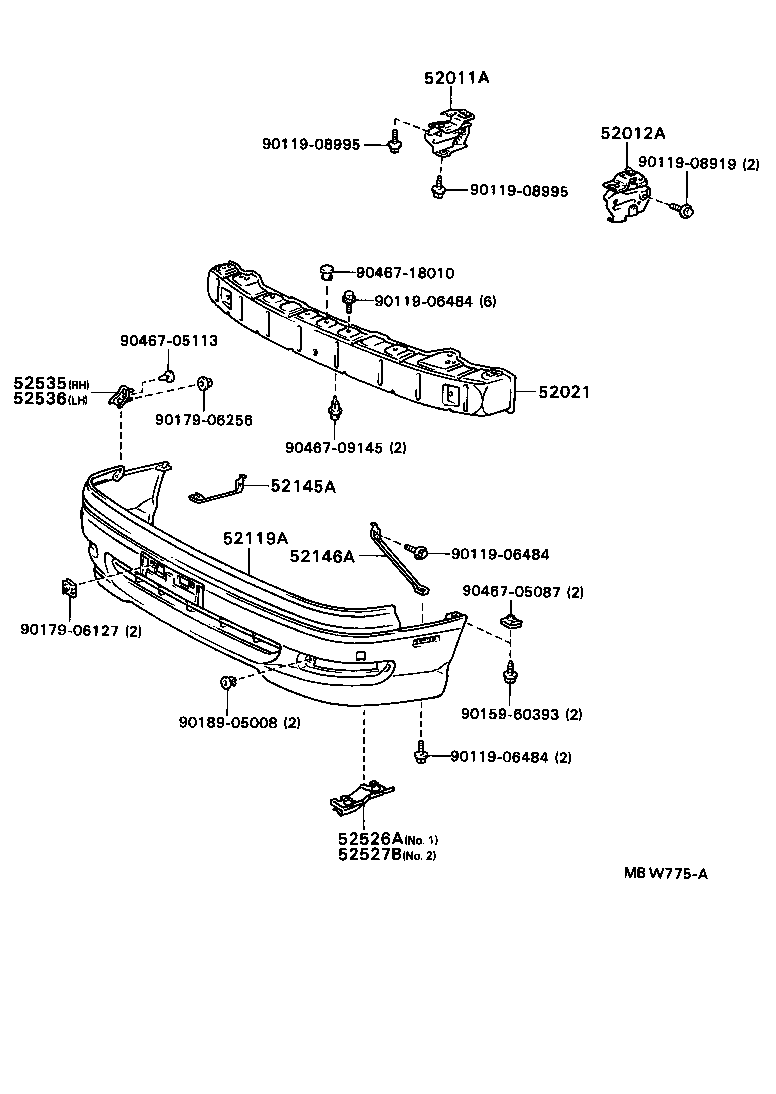

(9206- )CV30,SV3#..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-32100 |
CV30,SV3#..HT |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-32080 |
CV30,SV3#..HT |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32130 |
CV30,SV3#,VZV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3236013 |
CV30,SV3#..HT DARK BLUEISH GRAY M,191 |
1 | ||
| 52119-3236002 |
CV30,SV3#..HT RED MICA M,3J9 |
1 | ||
| 52119-3236008 |
CV30,SV3#..HT SUPER WHITE 2,040 |
1 | ||
| 52119-3236003 |
CV30,SV3#..HT AMETHYST SILVER M,920 |
1 | ||
| 52119-3238008 |
CV30,SV3#..HT..(GT,VR,VX) GRACIOUS PEARL TONNI,25R |
1 | ||
| 52119-3236007 |
CV30,SV3#..HT MED TURQUOISE OPAL,744 |
1 | ||
| 52119-3238003 |
CV30,SV3#..HT..(GT,VR,VX) DRESSY NIGHT TONNING,26R |
1 | ||
| 52119-32420A0 |
CV30,SV3#..HT SUPER WHITE 2,040 |
1 | ||
| 52119-3236017 |
CV30,SV3#..HT GRAYISH GREEN M,6K6 |
1 | ||
| 52119-32420B0 |
CV30,SV3#..HT DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32420E0 |
CV30,SV3#..HT LI BEIGE ME,4M3 |
1 | ||
| 52119-32420G0 |
CV30,SV3#..HT GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32420G2 |
CV30,SV3#..HT DK GREEN MICA,6M1 |
1 | ||
| 52119-32430G1 |
CV30,SV3#..HT..(VR,VX) GRACIOUS PEARLTONING,25R |
1 | ||
| 52119-32430G0 |
CV30,SV3#..HT..(VR,VX) OLIVE BREEZE TONING,25U |
1 | ||
| 52119-32460A0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),SUPER WHITE 2,040 |
1 | ||
| 52119-32420K0 |
CV30,SV3#..HT GRAYISH PURPLE M,923 |
1 | ||
| 52119-32460G0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRAYISH GREEN ME,6K6 |
1 | ||
| 52119-32460K0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRAYISH PURPLE M,923 |
1 | ||
| 52119-32470G0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),OLIVE BREEZE TONING,25U |
1 | ||
| 52119-32460B0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),DK BLUISHGRAY MICA,191 |
1 | ||
| 52119-32460G2 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),DK GREEN MICA,6M1 |
1 | ||
| 52119-32470G1 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),GRACIOUS PEARLTONING,25R |
1 | ||
| 52119-32460E0 |
CV30,SV32,33,35..HT..VX ｱﾘ(ｺ-ﾅ ｿﾅ-),LI BEIGE ME,4M3 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-32040 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32081 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52526-32080 |
CV30,SV3#,VZV3# |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-32040 |
CV30,SV3#,VZV3# |
1 | ||
| 52527-32041 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-32060 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52535-32080 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 52536-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| Common parts | ||||
| 90119-06484 | ||||
| 90119-08919 | ||||
| 90119-08995 | ||||
| 90159-60393 | ||||
| 90179-06127 | ||||
| 90179-06256 | ||||
| 90189-05008 | ||||
| 90467-05087 | ||||
| 90467-05113 | ||||
| 90467-09145 | ||||
| 90467-18010 | ||||
