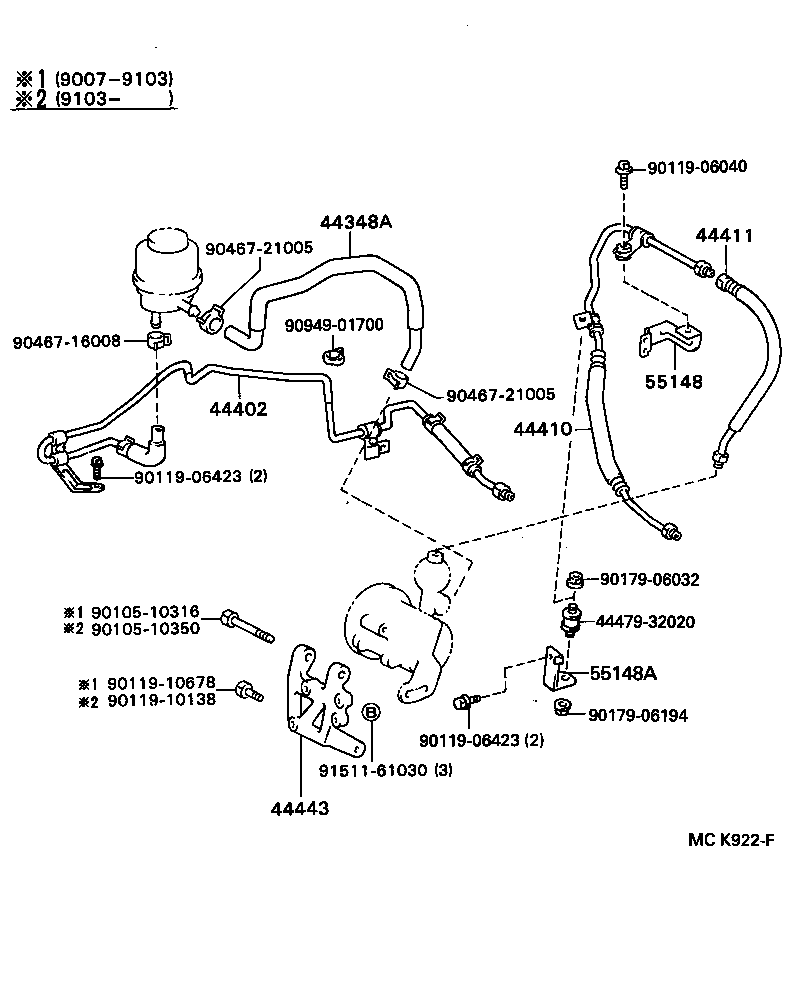

SV32-BTMVF (1990)
Toyota Camry/Vista
(9007- )VZV30,32
ｼﾔｿｸ ｶﾝﾉｳｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32210 |
SV32,33,35..GT,VX,ZX ｱﾘ(*CRC(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)) |
1 | ||
| 44348-32160 |
SV32,33,35 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-32210 |
SV35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-32431 |
SV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44410-32430 |
SV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-32160 |
SV32,33,35 |
1 | ||
| 44411-32161 |
SV32,33,35 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32060 |
SV32,33,35 |
1 | ||
| 55148 - BRACKET, POWER STEERING TUBE, N0.1 | ||||
| 55148-32021 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32020 |
SV3#,VZV3# |
1 | ||
| 55148A - BRACKET, POWER STEERING TUBE, N0.2 | ||||
| 55148-32031 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32030 |
SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 44479-32020 | ||||
| 90105-10075 | ||||
| 90105-10350 | ||||
| 90119-06198 | ||||
| 90119-06423 | ||||
| 90119-06541 | ||||
| 90119-10138 | ||||
| 90179-06032 | ||||
| 90179-06194 | ||||
| 90467-16008 | ||||
| 90467-19015 | ||||
| 90467-21005 | ||||
| 90467-28005 | ||||
| 91511-61025 | ||||
| 91511-61030 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1708 | ||||
(9007- )SV33,35 ; (9007- )SV32..ETO,GT,LUM,VE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32210 |
SV32,33,35..GT,VX,ZX ｱﾘ(*CRC(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)) |
1 | ||
| 44348-32160 |
SV32,33,35 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-32210 |
SV35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-32431 |
SV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44410-32430 |
SV33,35;SV30,32..ETO,GT,LUM,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-32160 |
SV32,33,35 |
1 | ||
| 44411-32161 |
SV32,33,35 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32060 |
SV32,33,35 |
1 | ||
| 55148 - BRACKET, POWER STEERING TUBE, N0.1 | ||||
| 55148-32021 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32020 |
SV3#,VZV3# |
1 | ||
| 55148A - BRACKET, POWER STEERING TUBE, N0.2 | ||||
| 55148-32031 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32030 |
SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 44479-32020 | ||||
| 90105-10316 | ||||
| 90105-10350 | ||||
| 90119-06040 | ||||
| 90119-06423 | ||||
| 90119-10138 | ||||
| 90119-10678 | ||||
| 90179-06032 | ||||
| 90179-06194 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90949-01700 | ||||
| 91511-61030 | ||||
