SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

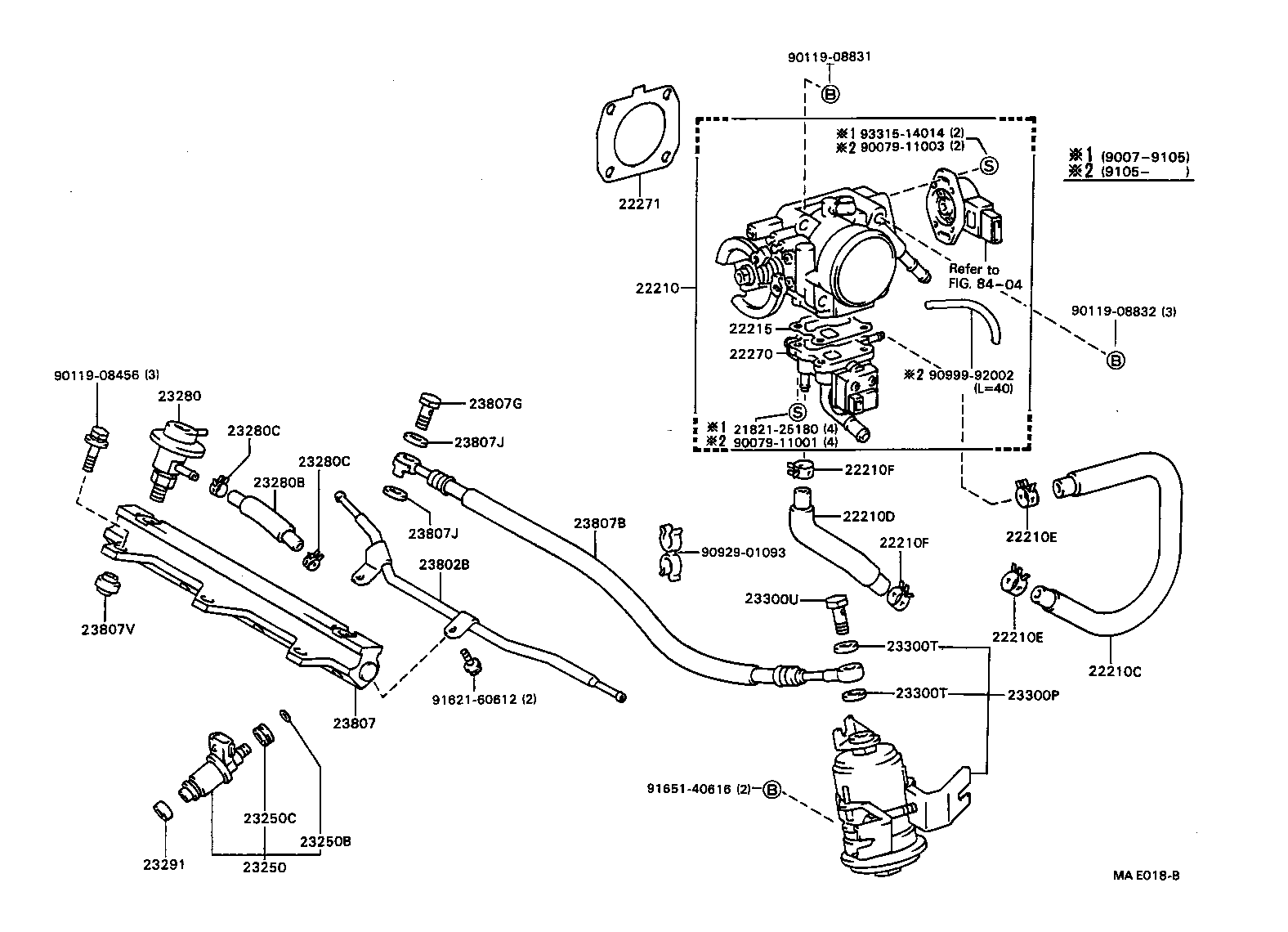

ILLUST NO. 1 OF 2(9007-9206)3SGE

Click highlighted areas on diagram

diagram 2182125180 22210 22210C 22210D 22210E 22210E 22210F 22210F 22215 22270 22271 23250 23250B 23250C 23280 23280B 23280C 23280C 23291 23300P 23300T 23300T 23300U 23802B 23807 23807B 23807G 23807J 23807J 23807V 8404 9007911001 9007911003 9011908456 9011908831 9011908832 9092901093 9099992002 9162160612 9165140616 9331514014
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-74380

3SGE..SV32,33..5F

 1
22210-74730

3SGE..SV32,33..5F

 1
22210C - HOSE, WATER BY-PASS, NO.1
16264-88361

3SGE..SV32,33

 1
22210D - HOSE, WATER BY-PASS, NO.2
16267-88361

3SGE..SV32,33

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050

3S#,4SFE..SV3#

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050

3S#,4SFE..SV3#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050

3S#,4SFE..SV3#

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050

3S#,4SFE..SV3#

 2
22215 - GASKET, THROTTLE BODY COVER
22215-74380

3SGE..SV32,33

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74060

3SGE..SV32,33..5F

 1
22271 - GASKET, THROTTLE BODY
22271-74050

3SGE..SV32,33

 1
23250 - INJECTOR ASSY, FUEL
23209-74080

3SGE..SV32,33

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

3S#,4SFE..SV3#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

3S#,4SFE..SV3#

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74050

3SGE..SV32,33

 1
23280B - HOSE, FUEL PRESSURE REGULATOR RETURN
90447-12051

3SGE..SV32,33

 1
23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
90467-11009

3SGE..SV32,33

 2
23280C - CLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
90467-11009

3SGE..SV32,33

 2
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

3S#,4SFE..SV3#

 4
23300P - FILTER, FUEL(FOR EFI)
23300-79295

3S#,4SFE..SV3#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

3S#,4SFE..SV3#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

3S#,4SFE..SV3#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

3S#,4SFE..SV3#

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-88362

3SGE..SV32,33

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-74050

3SGE..SV32,33

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01382

3SGE..SV32,33

 1
23807G - BOLT, UNION PIPE FUEL DELIVARY INLET
90401-12097

3SGE..SV32,33

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

3SGE..SV32,33

 2
90430-12005

3SGE..SV32,33

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

3SGE..SV32,33

 2
90430-12005

3SGE..SV32,33

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08024

3SGE..SV32,33

 3
Common parts
21821-25180
90079-11001
90079-11003
90119-08456
90119-08831
90119-08832
90929-01093
90999-92002
91621-60612
91651-40616
93315-14014
Linked diagrams
8404

ILLUST NO. 2 OF 2(9007- )3S#,4SFE..SV30,32,33

Click highlighted areas on diagram

diagram 23091 23204 23206A 23206B 23217A 23217A 23220P 23220P 23229 23229 23233 23233B 23233B 23249 8401 9011906351 9015950219 9046712056 9046712056 9098011078 9331914008 9533306020
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-74180

3S#,4SFE..SV30,32,33

 1
23091-74180

3S#,4SFE..SV30,32,33

 1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-74620

3S#,4SFE..SV30,32,33

 1
23204-74620

3S#,4SFE..SV30,32,33

 1
23206A - BRACKET, FUEL PUMP
23206-74620

3S#,4SFE..SV30,32,33

 1
23206-74620

3S#,4SFE..SV30,32,33

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-60010

3S#,4SFE..SV3#

 1
77169-60010

3S#,4SFE..SV3#

 1
23217A - FILTER, FUEL PUMP
23217-74020

3S#,4SFE..SV3#

 1
23217-74020

3S#,4SFE..SV3#

 1
23217A - FILTER, FUEL PUMP
23217-74020

3S#,4SFE..SV3#

 1
23217-74020

3S#,4SFE..SV3#

 1
23220P - PUMP ASSY, FUEL
23220-74020

3S#,4SFE..SV3#

 1
23220-74020

3S#,4SFE..SV3#

 1
23220P - PUMP ASSY, FUEL
23220-74020

3S#,4SFE..SV3#

 1
23220-74020

3S#,4SFE..SV3#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

3S#,4SFE..SV3#

 1
23229-16010

3S#,4SFE..SV3#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

3S#,4SFE..SV3#

 1
23229-16010

3S#,4SFE..SV3#

 1
23233 - HOSE, FUEL PUMP
23239-63010

3S#,4SFE..SV30,32,33

 1
23239-63010

3S#,4SFE..SV30,32,33

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

3S#,4SFE..SV3#

 2
90467-13054

3S#,4SFE..SV3#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

3S#,4SFE..SV3#

 2
90467-13054

3S#,4SFE..SV3#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

3SGE..SV32,33

 1
23249-74610

3SGE..SV32,33

 1
Common parts
90119-06351
90159-50219
90467-12056
90980-11078
93319-14008
95333-06020
Linked diagrams
8401
