Toyota Camry/vista SV32 STARTER - JDM Part Detective

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28100 - STARTER ASSY
28100-74090	3SGE..SV32,33 12V 1.4KW	07/1990 - 06/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-74090	3SGE..SV32,33	08/1990 - 06/1992	1
28119 - COVER, STARTER END FRAME
28199-74070	3SGE..SV32,33	07/1990 - 05/1991	1
28199-74110	3SGE..SV32,33	05/1991 - 06/1992	1
28120 - YOKE ASSY, STARTER
28120-74070	3SGE..SV32,33	08/1990 - 06/1992	1
28120A - RING, O(FOR STARTER YOKE)
90099-14064	2CT,3SGE..CV30,SV32,33	07/1990 - 06/1994	2
28120A - RING, O(FOR STARTER YOKE)
90099-14064	2CT,3SGE..CV30,SV32,33	07/1990 - 06/1994	2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-74090	3SGE..SV32,33	07/1990 - 06/1992	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28143 - SPRING, STARTER BRUSH
90099-17112	2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#	07/1990 - 06/1992	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28160 - ARMATURE ASSY, STARTER
28160-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28160A - BEARING, STARTER ARMATURE
90099-10197	3SGE..SV32,33 NO.1	07/1990 - 06/1994	1
90099-10196	3SGE..SV32,33 NO.2	07/1990 - 06/1994	1
28160A - BEARING, STARTER ARMATURE
90099-10197	3SGE..SV32,33 NO.1	07/1990 - 06/1994	1
90099-10196	3SGE..SV32,33 NO.2	07/1990 - 06/1994	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#	07/1990 - 06/1992	5
28229 - RETAINER, STARTER IDLE GEAR
28229-74070	3SGE..SV32,33	07/1990 - 06/1992	1
28252 - GEAR, STARTER IDLE
28254-74070	3SGE..SV32,33	07/1990 - 06/1992	1
Common parts
28176-15090
90099-04448
90099-04449
90099-05129
90099-05251
90099-12009
90179-08146
91611-61035

SV32-BTMVF (1990)

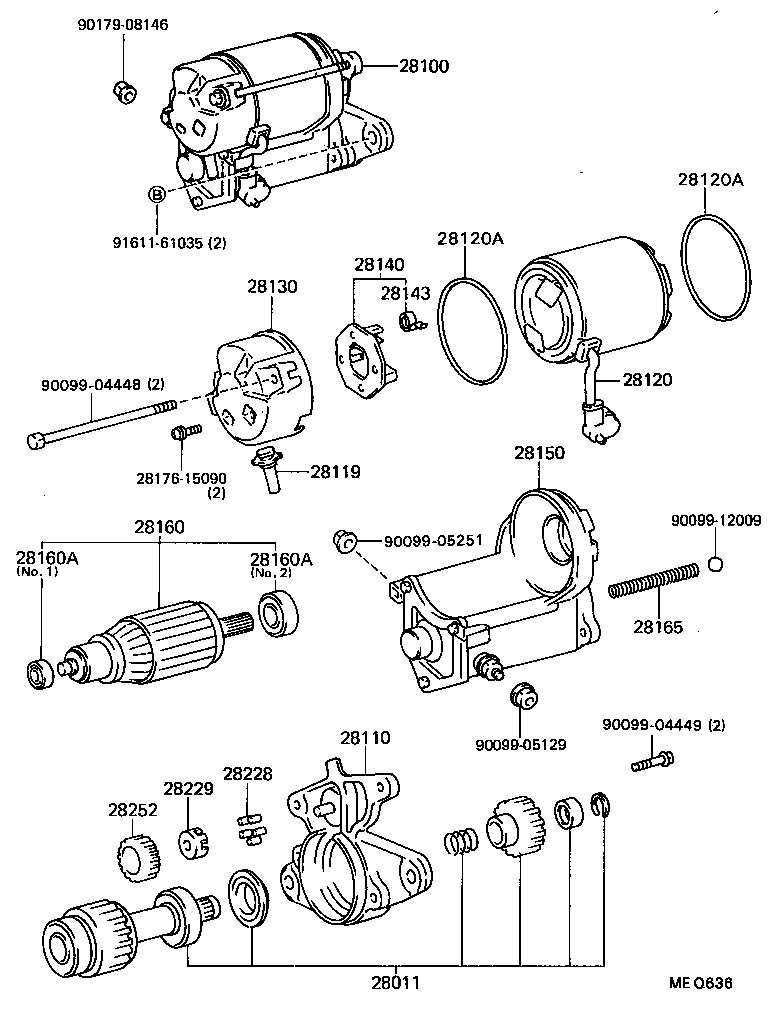

ILLUST NO. 1 OF 2(9007-9206)3SGE
