SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

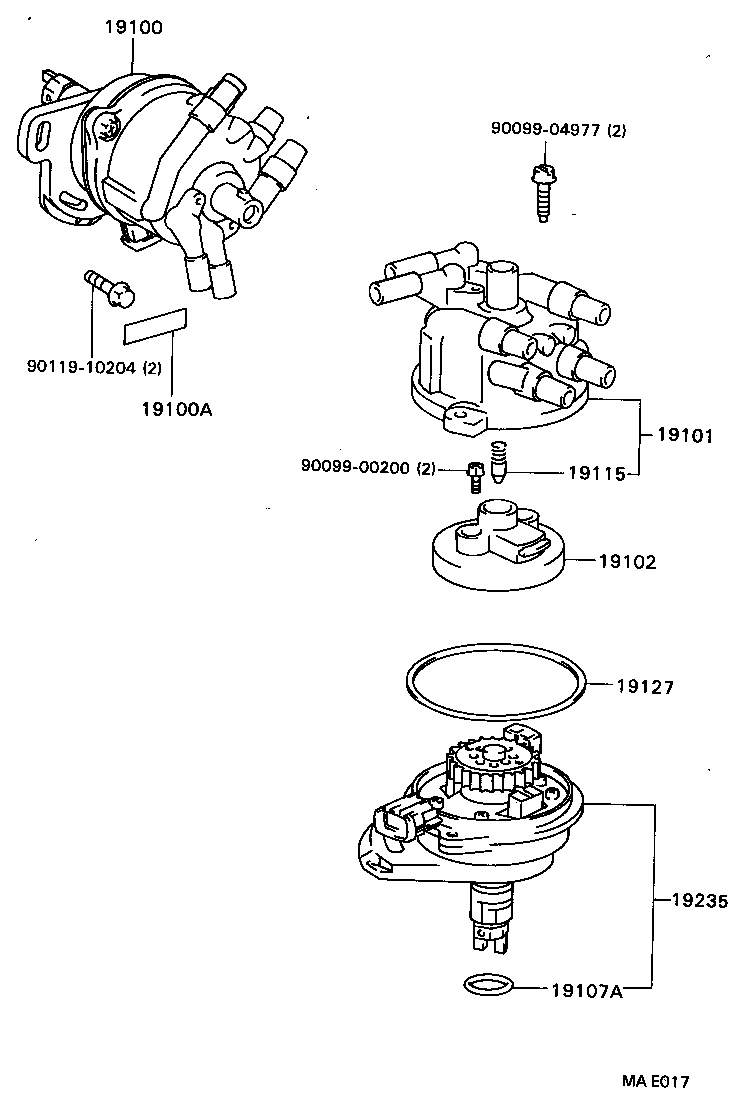

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19235 9009900200 9009904977 9011910204
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-88363

3SGE..SV32,33

 1
19100A - TAPE, SEALING
90919-24004

3S#,4SFE..SV3#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-88363

3SGE..SV32,33

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040

3SGE..SV32,33

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14106

3SGE..SV32,33

 1
90099-14090

3SGE..SV32,33

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

3S#,4SFE..SV3#

 1
19127 - PACKING, DUST PROOF
19127-74040

3S#..SV32,33,35

 1
19235 - HOUSING, DISTRIBUTOR
19235-88363

3SGE..SV32,33

 1
Common parts
90099-00200
90099-04977
90119-10204
