SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

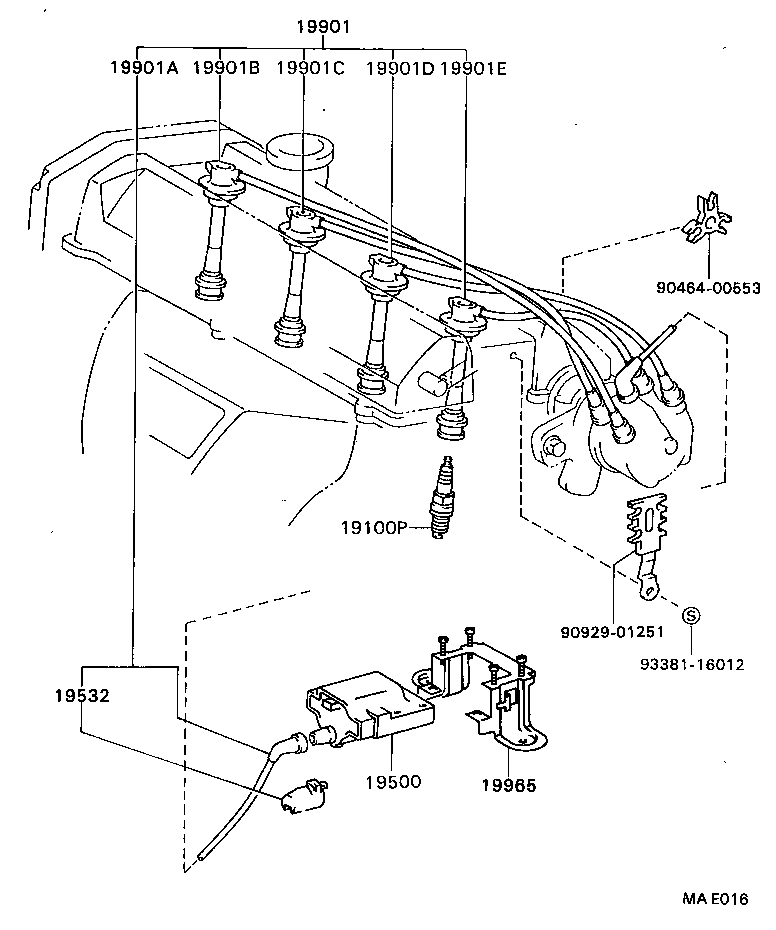

Click highlighted areas on diagram

diagram 19100P 19500 19532 19901 19901A 19901B 19901C 19901D 19901E 19965 9046400553 9092901251 9338116012
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01180

3SGE..SV32,33

PK20R8

 4
90919-01181

3SGE..SV32,33

BKR6EP−8

 4
19500 - COIL ASSY, IGNITION
90919-02175

3SGE..SV32,33

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010

3SGE..SV32,33

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21498

3SGE..SV32,33

 1
19901A - CORD, COIL RESISTIVE
19590-74100

3SGE..SV32,33

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15046

3SGE..SV32,33

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15047

3SGE..SV32,33

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15048

3SGE..SV32,33

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15049

3SGE..SV32,33

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03120

3S#,4SFE..SV3#

 1
Common parts
90464-00553
90929-01251
93381-16012
