SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9007- )3S#,4SFE

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16406A 16442 16451 16452 16462 16491 16491A 16491B 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-74650

3SGE..SV32,33..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

3S#,4SFE..SV3#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

3S#,4SFE..SV3#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090

3S#,4SFE..SV3#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-74680

3SGE..SV32,33..5F;3SFE,4SFE..SV30,32,33..4FC

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16462-74670

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
16451 - PLATE, RADIATOR CORE, UPPER
16452-74680

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-74680

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-74670

3S#,4SFE..SV3#

 1

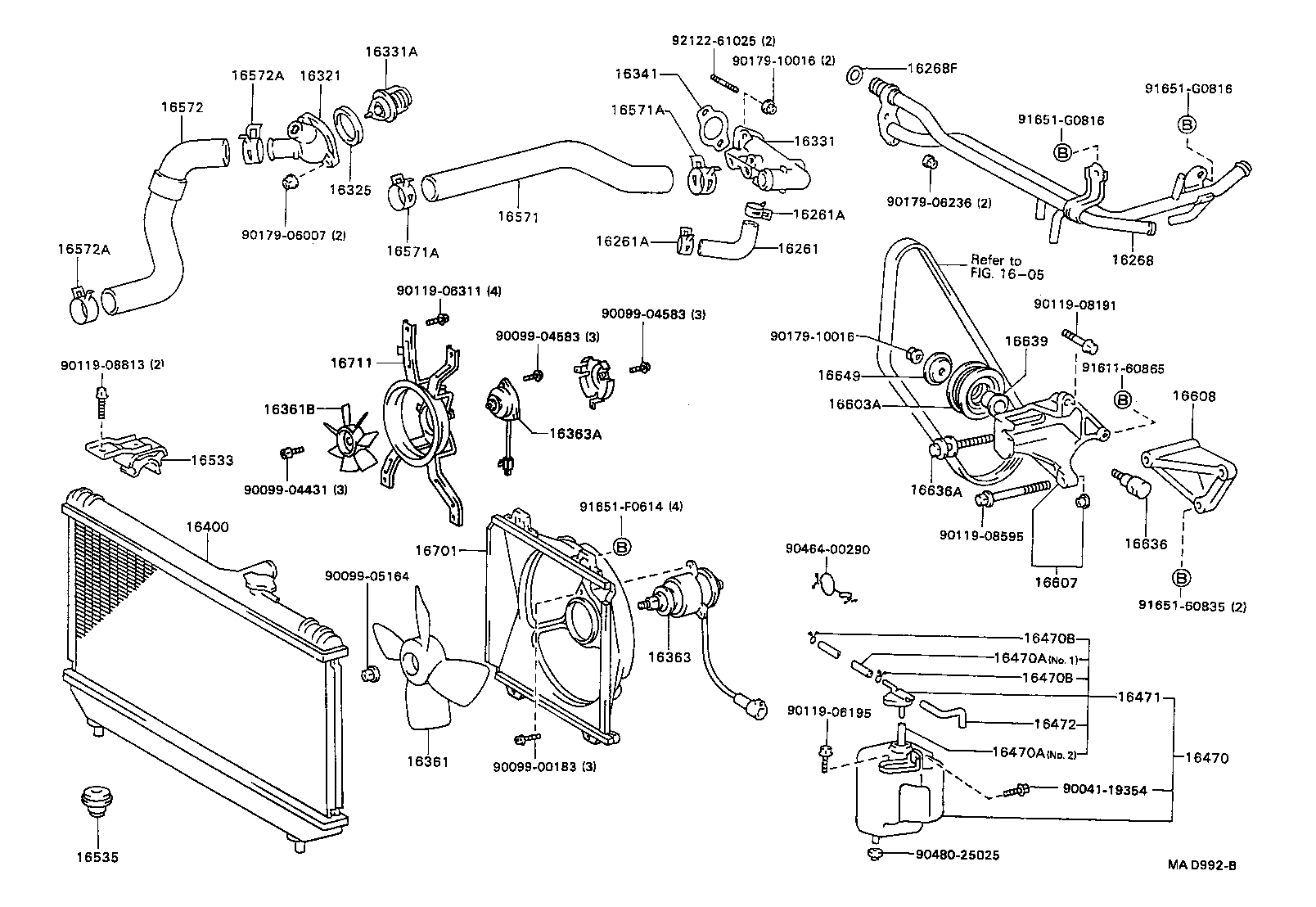

ILLUST NO. 1 OF 2(9007-9206)3SGE

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16268 16268F 16321 16325 16331 16331A 16341 16361 16361B 16363 16363A 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16603A 16607 16608 16636 16636A 16639 16649 16701 16711 9004119354 9009900183 9009904431 9009904583 9009904583 9009905164 9011906195 9011906311 9011908191 9011908595 9011908813 9017906007 9017906236 9017910016 9017910016 9046400290 9048025025 9161160865 9165160835 91651F0614 91651G0816 91651G0816 9212261025
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-88361

3SGE..SV32,33

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3S#,4SFE..SV3#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3S#,4SFE..SV3#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-74100

3SGE..SV32,33

 1
16268-74101

3SGE..SV32,33

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3S#,4SFE..SV3#

 1
16321 - INLET, WATER
16321-88381

3SGE..SV32,33

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

3SGE..SV32,33

 1
16331 - OUTLET, WATER
16304-74121

3SGE..SV32,33

 1
16304-74120

3SGE..SV32,33

 1
16331A - THERMOSTAT
90916-03075

3SGE..SV32,33

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-74030

3SGE..SV32,33

 1
16361 - FAN
16361-74060

3SFE..SV35..5F;3SGE..SV32,33..5F;3SFE,4SFE..SV30,32,33..4FC

 1
16361B - FAN, NO.2
16361-74040

3SGE..SV32,33

 1
16363 - MOTOR, COOLING FAN
16363-11020

3SFE..SV35..5F;3SGE..SV32,33..5F;3SFE,4SFE..SV30,32,33..4FC

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-74050

3SGE..SV32,33

 1
16400 - RADIATOR ASSY
16400-74650

3SGE..SV32,33..5F

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-74140

3S#,4SFE..SV3#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3S#,4SFE..SV3#

長さ=600,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

3S#,4SFE..SV3#

長さ=600,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3S#,4SFE..SV3#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3S#,4SFE..SV3#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-74160

3S#,4SFE..SV3#

 1
16472 - HOSE, BREATHER
85338-74140

3S#,4SFE..SV3#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-62010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74110

3S#,4SFE..SV3#

 2
16571 - HOSE, RADIATOR, INLET
16571-74160

3SFE..SV35;3SGE,4SFE..SV30,32,33

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33003

3S#,4SFE..SV3#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33003

3S#,4SFE..SV3#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-74150

3S#,4SFE..SV3#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33003

3SGE..SV32,33

WATER INLET SIDE

 1
90467-33002

3SGE..SV32,33

ﾗｼﾞｴｰﾀ側

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33003

3SGE..SV32,33

WATER INLET SIDE

 1
90467-33002

3SGE..SV32,33

ﾗｼﾞｴｰﾀ側

 1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-88360

3SGE..SV32,33

 1
16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1
16631-74030

3SGE..SV32,33

 1
16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2
16632-74010

3SGE..SV32,33

 1
16636 - SHAFT, IDLER PULLY, NO.1
16636-74020

3SGE..SV32,33

 1
16636A - BOLT(FOR IDLER PULLY TENSION)
90109-08191

3SGE..SV32,33

 1
16639 - SPACER, IDLER PULLEY
16639-88361

3SGE..SV32,33

 1
16649 - PLATE, IDLER PULLEY COVER
16649-88360

3SGE..SV32,33

 1
16701 - SHROUD SUB-ASSY, FAN
16711-74390

3SGE..SV32,33..5F

 1
16711 - SHROUD, FAN
16711-74380

3SGE..SV32,33

 1
Common parts
90041-19354
90099-00183
90099-04431
90099-04583
90099-05164
90119-06195
90119-06311
90119-08191
90119-08595
90119-08813
90179-06007
90179-06236
90179-10016
90464-00290
90480-25025
91611-60865
91651-60835
91651-F0614
91651-G0816
92122-61025
Linked diagrams
1605
