SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

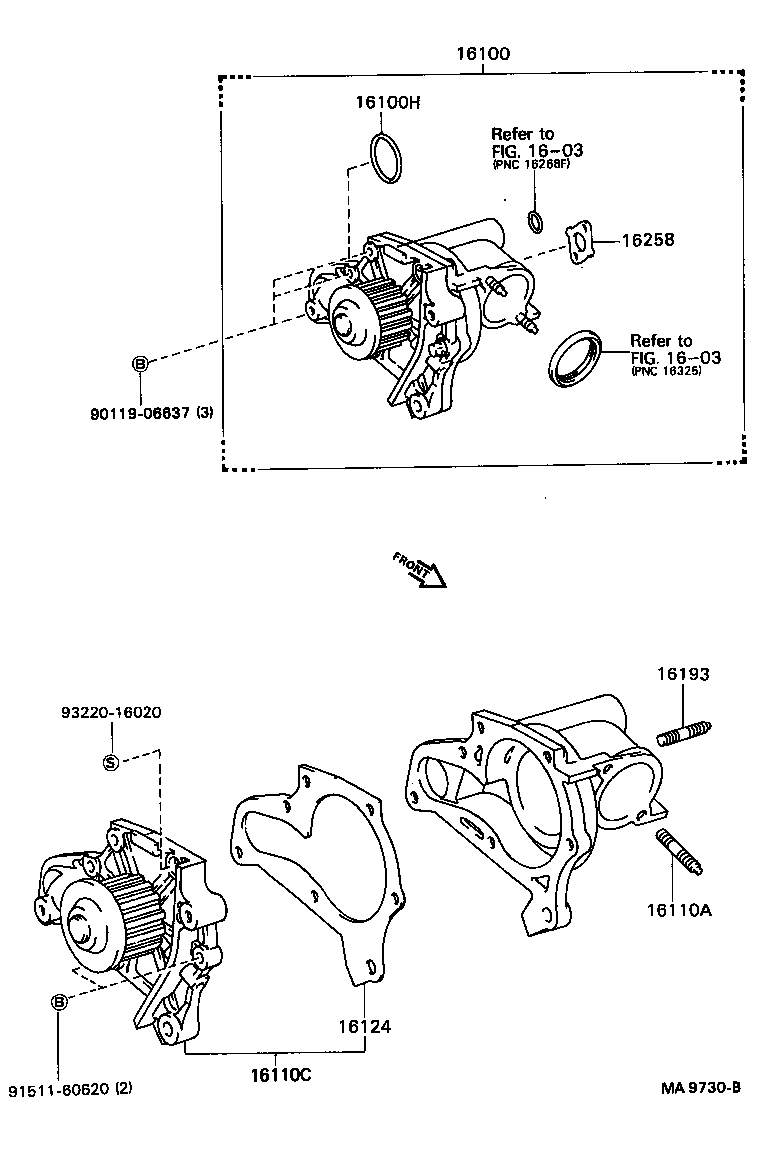

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16110A 16110C 16124 16193 16258 9011906637 9151160620 9322016020
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79175

3SGE..SV32,33

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3S#,4SFE..SV3#

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

3S#,4SFE..SV3#

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-79115

3SGE..SV32,33

 1
16124 - GASKET, WATER PUMP COVER
16124-74020

3S#,4SFE..SV3#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

3S#,4SFE..SV3#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-74030

3SGE..SV32,33

 1
Common parts
90119-06637
91511-60620
93220-16020
Linked diagrams
1603
