SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE..5F

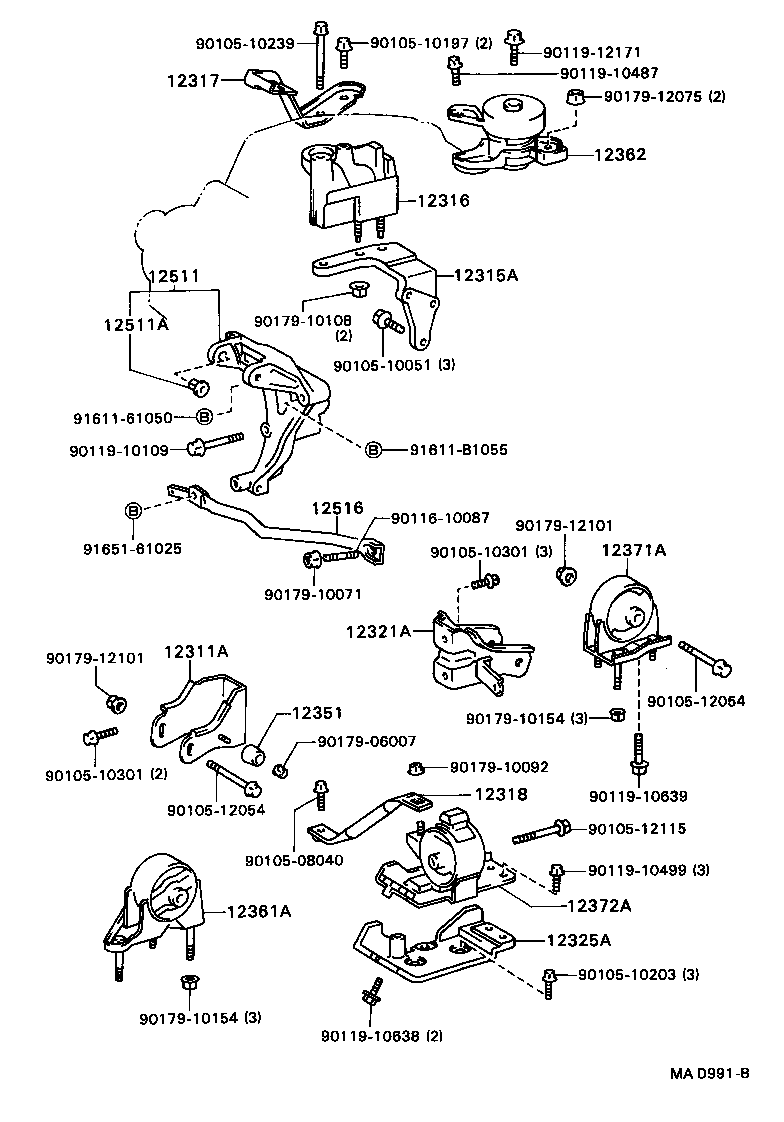

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12317 12318 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 12511A 12516 9010508040 9010510051 9010510197 9010510203 9010510239 9010510301 9010510301 9010512054 9010512054 9010512115 9011610087 9011910109 9011910487 9011910499 9011910638 9011910639 9011912171 9017906007 9017910071 9017910092 9017910108 9017910154 9017910154 9017912075 9017912101 9017912101 9161161050 91611B1055 9165161025
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74030

3S#,4SFE..SV30,32,33

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74060

3S#,4SFE..SV30,32,33

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-74020

3S#,4SFE..SV3#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74110

3SGE..SV32,33

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-74060

3S#,4SFE..SV30,32,33..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74210

3S#,4SFE..SV30,32,33..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74140

3S#,4SFE..SV30,32,33..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

3S#,4SFE..SV30,32,33..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74200

3S#,4SFE..SV30,32,33..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74270

3SFE..SV35;3SGE..SV32,33

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-62030

3S#,4SFE..SV30,32,33..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74300

3S#,4SFE..SV30,32,33..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74060

3SGE..SV32,33

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGE..SV32,33

 1
12516 - BRACKET, ALTERNATOR, NO.2
12512-74030

3SGE..SV32,33

 1
Common parts
90105-08040
90105-10051
90105-10197
90105-10203
90105-10239
90105-10301
90105-12054
90105-12115
90116-10087
90119-10109
90119-10487
90119-10499
90119-10638
90119-10639
90119-12171
90179-06007
90179-10071
90179-10092
90179-10108
90179-10154
90179-12075
90179-12101
91611-61050
91611-B1055
91651-61025
