SV32-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

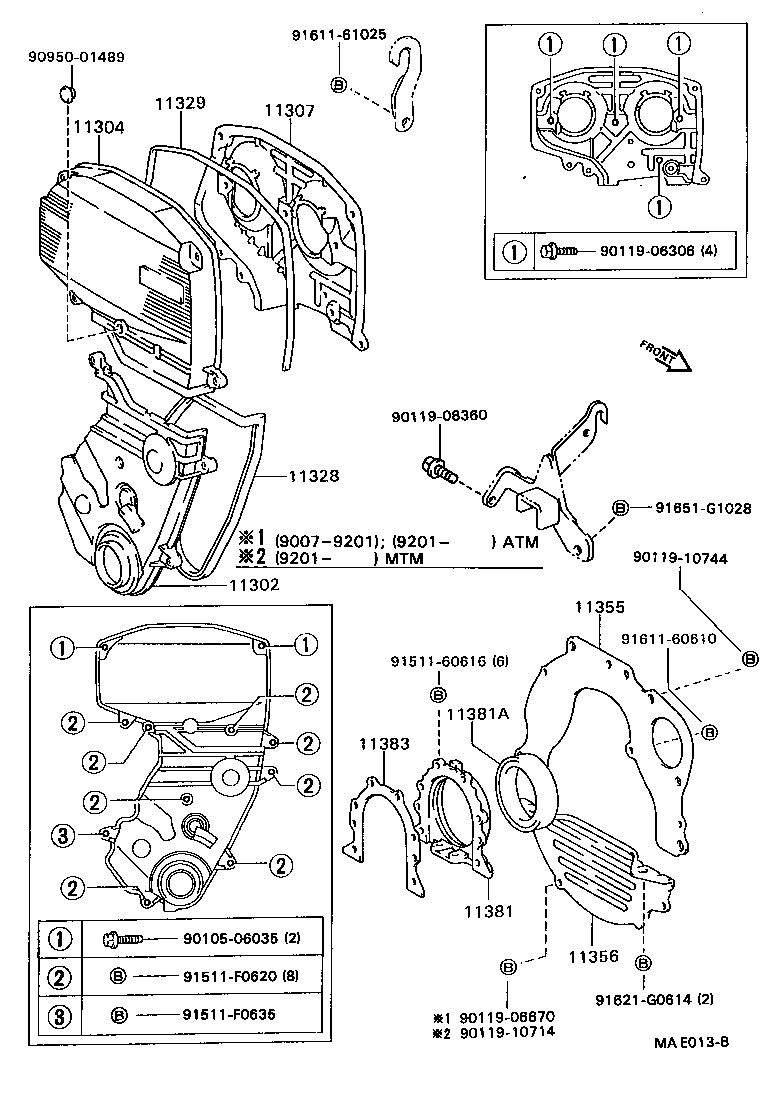

Click highlighted areas on diagram

diagram 11302 11304 11307 11328 11329 11355 11356 11381 11381A 11383 9010506035 9011906306 9011906670 9011908360 9011910714 9011910744 9095001489 9151160616 91511F0620 91511F0635 9161160610 9161161025 91621G0614 91651G1028
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-74031

3SGE..SV32,33

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-88361

3SGE..SV32,33

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11323-74050

3SGE..SV32,33

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88361

3SGE..SV32,33

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88360

3SGE..SV32,33

 1
11355 - PLATE, REAR END
11355-74010

3S#,4SFE..SV30,32,33

 1
11356 - PLATE, REAR END, NO.2
11356-63031

3SFE..SV35;3SGE,4SFE..SV30,32,33

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3S#,4SFE..SV3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-89001

3SGE..SV32,33

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63011

3S#,4SFE..SV3#

 1
11383-74020

3S#,4SFE..SV3#

 1
Common parts
90105-06035
90119-06306
90119-06670
90119-08360
90119-10714
90119-10744
90950-01489
91511-60616
91511-F0620
91511-F0635
91611-60610
91611-61025
91621-G0614
91651-G1028
