SV32-BTMMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )HT

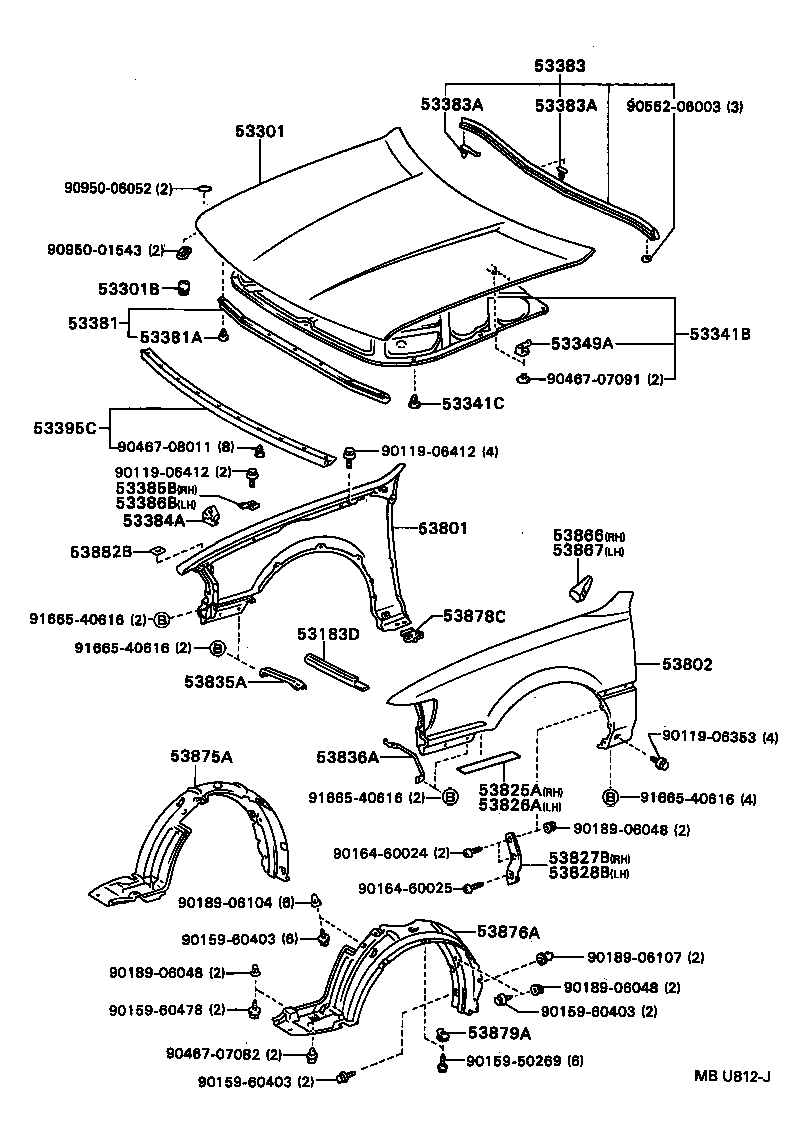

Click highlighted areas on diagram

diagram 53183D 53301 53301B 53341B 53341C 53349A 53381 53381A 53383 53383A 53383A 53384A 53385B 53386B 53395C 53801 53802 53825A 53826A 53827B 53828B 53835A 53836A 53866 53867 53875A 53876A 53878C 53879A 53882B 9011906353 9011906412 9011906412 9015950269 9015960403 9015960403 9015960403 9015960478 9016460024 9016460025 9018906048 9018906048 9018906048 9018906104 9018906107 9046707082 9046707091 9046708011 9056206003 9095001543 9095006052 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-32130

CV30,SV3#..HT

 1
53301B - CUSHION, HOOD BUMPER
90541-15016

CV30,SV3#,VZV3#

 2
53341B - INSULATOR, HOOD
53341-32060

CV30,SV32,33,35,VZV3#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

CV30,SV32,33,35,VZV3#

 13
53349A - RETAINER, HOOD INSULATOR
53349-50010

CV30,SV32,33,35,VZV3#

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-32030

CV30,SV3#,VZV3#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

CV30,SV3#,VZV3#

 6
53383 - SEAL, HOOD TO COWL TOP
53383-32030

CV30,SV3#,VZV3#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08108

CV30,SV3#,VZV3#

ﾌﾞﾗｯｸ

 8
90467-08141

CV30,SV3#,VZV3#

NATURAL

 2
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08108

CV30,SV3#,VZV3#

ﾌﾞﾗｯｸ

 8
90467-08141

CV30,SV3#,VZV3#

NATURAL

 2
53384A - BUMPER, FENDER TO HOOD
53384-32010

CV30,SV3#,VZV3#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-20020

CV30,SV3#,VZV3#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-20020

CV30,SV3#,VZV3#

 1
53395C - SEAL, HOOD TO RADIATOR GRILLE
53183-32040

CV30,SV3#..HT

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-32250

CV30,SV3#,VZV3#..HT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-32240

CV30,SV3#,VZV3#..HT

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-32230

CV30,SV3#,VZV3#..HT

 1
53802-32240

CV30,SV3#,VZV3#..HT

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-32020

CV30,SV3#,VZV3#..HT

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-32020

CV30,SV3#,VZV3#..HT

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53851-32020

CV30,SV3#,VZV3#..HT

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53852-32020

CV30,SV3#,VZV3#..HT

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-32050

CV30,SV3#,VZV3#..HT

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-32050

CV30,SV3#,VZV3#..HT

 1
53875A - LINER, FRONT FENDER, RH
53875-32040

CV30,SV3#,VZV3#..HT

 1
53876A - LINER, FRONT FENDER, LH
53876-32040

CV30,SV3#,VZV3#..HT

 1
53878C - SPACER, FRONT FENDER
53878-20040

CV30,SV3#,VZV3#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

CV30,SV3#,VZV3#

 8
Common parts
90119-06353
90119-06412
90159-50269
90159-60403
90159-60478
90164-60024
90164-60025
90189-06048
90189-06104
90189-06107
90467-07082
90467-07091
90467-08011
90562-06003
90950-01543
90950-06052
91665-40616
