SV32-BTMMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

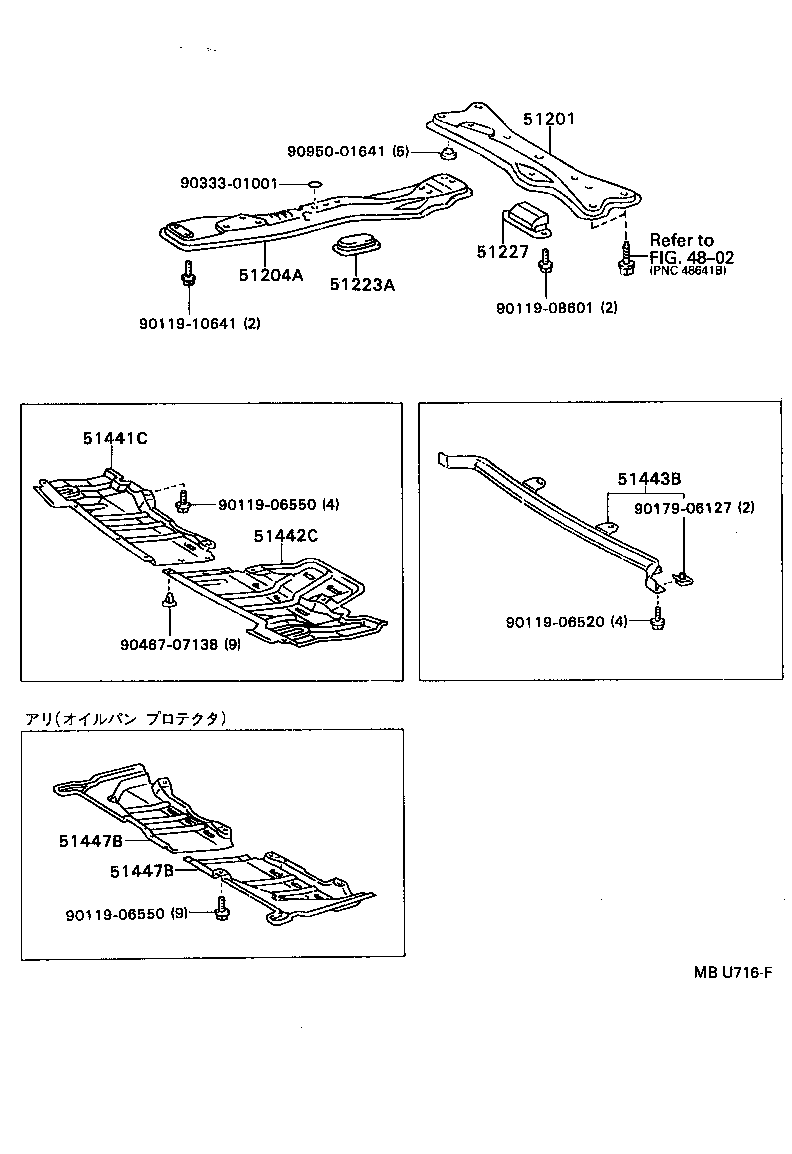

ILLUST NO. 1 OF 2(9007- )HT

Click highlighted areas on diagram

diagram 4802 51201 51204A 51223A 51227 51441C 51442C 51443B 51447B 51447B 9011906520 9011906550 9011906550 9011908601 9011910641 9017906127 9033301001 9046707138 9095001641
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-32040

CV30,SV3#,VZV3#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-32030

CV30,SV3#,VZV3#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

CV30,SV3#,VZV3#

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-32020

CV30,SV3#

 1
51441C - COVER, ENGINE UNDER, RH
51441-32040

CV30,SV3#,VZV3#

 1
51442C - COVER, ENGINE UNDER, LH
51442-32060

CV30,SV3#,VZV30,31..5F

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-32010

CV30,SV3#,VZV3#..HT

 1
51447B - PROTECTOR, OIL PAN
51447-32030

CV30,SV3#,VZV3#

右側

 1
51448-32030

CV30,SV3#,VZV3#

左側

 1
51447B - PROTECTOR, OIL PAN
51447-32030

CV30,SV3#,VZV3#

右側

 1
51448-32030

CV30,SV3#,VZV3#

左側

 1
Common parts
90119-06520
90119-06550
90119-08601
90119-10641
90179-06127
90333-01001
90467-07138
90950-01641
Linked diagrams
4802

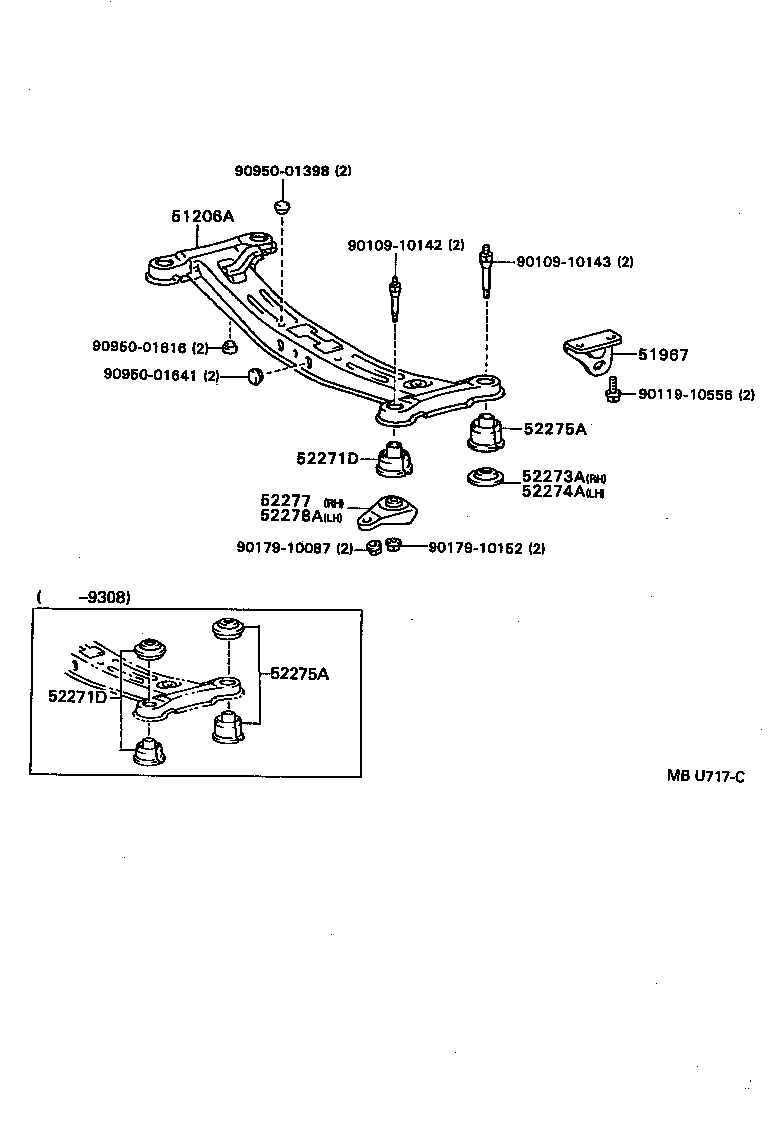

ILLUST NO. 2 OF 2(9007- )CV30,SV30,32,VZV30,32

Click highlighted areas on diagram

diagram 51206A 51967 52271D 52271D 52273A 52274A 52275A 52275A 52277 52278A 9010910142 9010910143 9011910556 9017910087 9017910152 9095001398 9095001616 9095001641
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-32030

CV30,SV30,32,VZV30,32

 1
51967 - HOOK, TRANSPORT, REAR
51967-32060

CV30,SV3#,VZV3#

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-32020

CV30,SV30,32,33,VZV3#

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-32020

CV30,SV30,32,33,VZV3#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-32010

CV30,SV30,32,33,VZV3#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-32010

CV30,SV30,32,33,VZV3#

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-32030

CV30,SV30,32,33,VZV3#

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-32030

CV30,SV30,32,33,VZV3#

 2
52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52203-32010

CV30,SV30,32,33,VZV3#

 1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52204-32010

CV30,SV30,32,33,VZV3#

 1
Common parts
90109-10142
90109-10143
90119-10556
90179-10087
90179-10152
90950-01398
90950-01616
90950-01641
