SV32-BTMGK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)HT

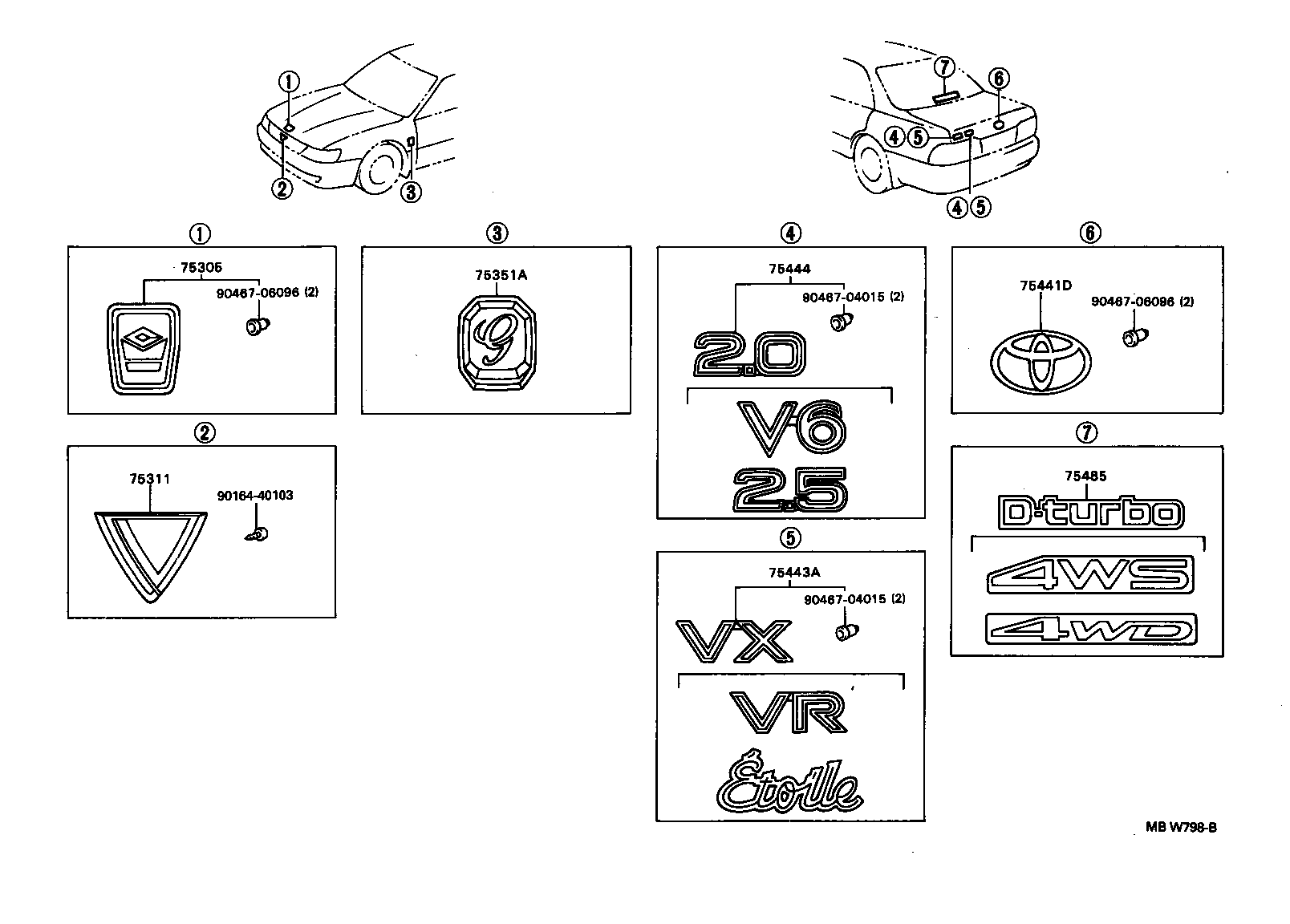

Click highlighted areas on diagram

diagram 75305 75351A 75441D 75443A 75444 75485 9046704015 9046704015 9046706096 9046706096
Part # Description Qty Price
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-32100

CV30,SV3#,VZV3#..HT

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-32690

SV32,33,35..HT..VX

VX

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-32160

SV32,33,35..HT

2.0

 1
Common parts
90467-04015
90467-06096

(9206- )HT

Click highlighted areas on diagram

diagram 75305 75311 75351A 75441D 75443A 75444 75485 9016440103 9046704015 9046704015 9046706096 9046706096
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-32190

CV30,SV3#..HT

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-32100

CV30,SV3#,VZV3#..HT

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-32690

SV32,33,35..HT..VX

VX

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-32160

SV32,33,35..HT

2.0

 1
Common parts
90164-40103
90467-04015
90467-06096
