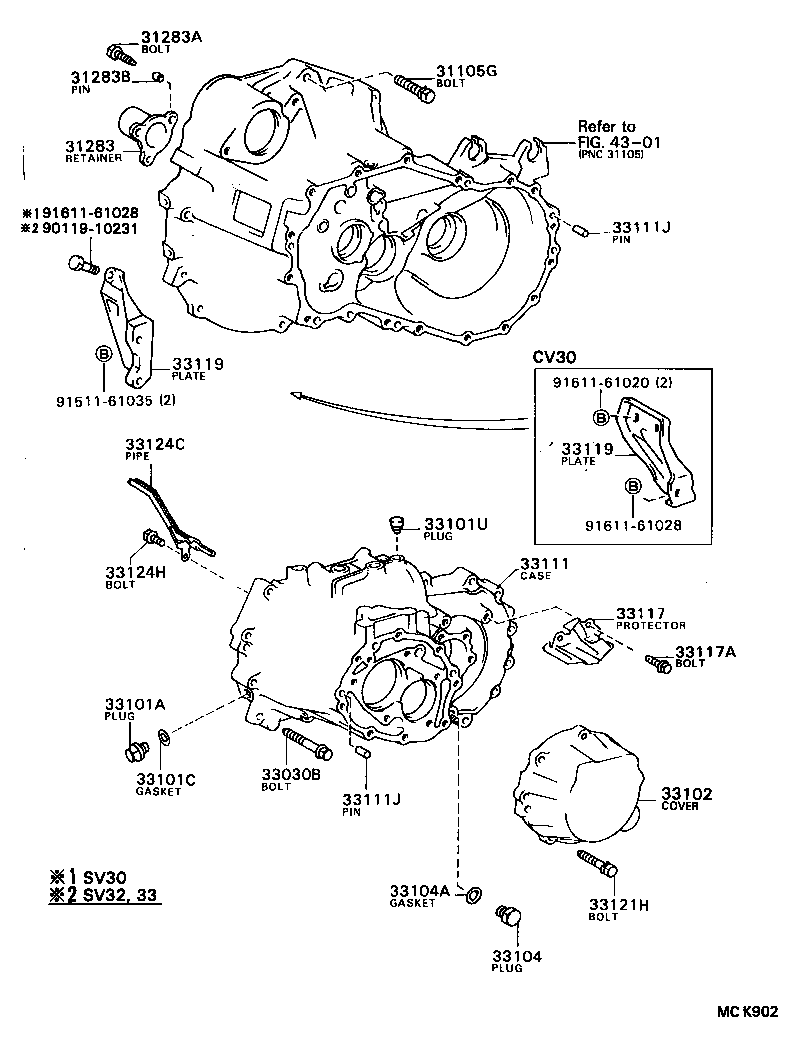

Toyota Camry/vista SV32 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022	SV32,33..5F *10−1.25PX22−22	07/1990 - 06/1994	1
90105-10077	CV30,SV3#..5F *10−1.25PX43−26	07/1990 - 06/1994	1
90119-12168	CV30,SV3#..5F *12−1.25PX55−30	07/1990 - 06/1994	3
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010	CV30,SV30,32,33..5F	07/1990 - 06/1994	1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023	CV30,SV30,32,33..5F	07/1990 - 06/1994	3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002	CV30,SV30,32,33..5F	07/1990 - 06/1994	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042	CV30,SV30,32,33..5F *8−1.25PX45−27.5	07/1990 - 06/1994	17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	CV30,SV30,32,33..5F	06/1993 - 06/1994	1
90341-18033	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1993	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080	CV30,SV30,32,33..5F	07/1990 - 06/1991	1
90930-03133	CV30,SV30,32,33..5F	06/1991 - 06/1994	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-33020	CV30,SV30,32,33..5F	06/1992 - 06/1994	1
33102-32012	CV30,SV30,32,33..5F	07/1990 - 06/1992	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
33111 - CASE, MANUAL TRANSMISSION
33111-33030	CV30,SV30,32,33..5F	06/1992 - 06/1994	1
33111-33020	CV30,SV30,32,33..5F	02/1991 - 06/1992	1
33111-20141	CV30,SV30,32,33..5F	07/1990 - 02/1991	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8	07/1990 - 06/1994	6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	CV30,SV30,32,33,VZV30,31..5F 長さ=23,外径=8	07/1990 - 06/1994	6
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32011	CV30,SV30,32,33..5F	07/1990 - 06/1994	1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08089	CV30,SV30,32,33..5F	07/1990 - 11/1990	8
90105-08273	CV30,SV30,32,33..5F	11/1990 - 06/1994	8
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32012	CV30,SV30,32,33..5F	07/1990 - 06/1992	1
33124-33010	CV30,SV30,32,33..5F	06/1992 - 06/1994	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618	CV30,SV30,32,33..5F	07/1990 - 06/1994	1
Common parts
90119-10231
91511-61035
91611-61020
91611-61028
Linked diagrams
4301

SV32-BTMGK (1990)

(9007- )CV30,SV30,32,33..5F
