SV32-BEPMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

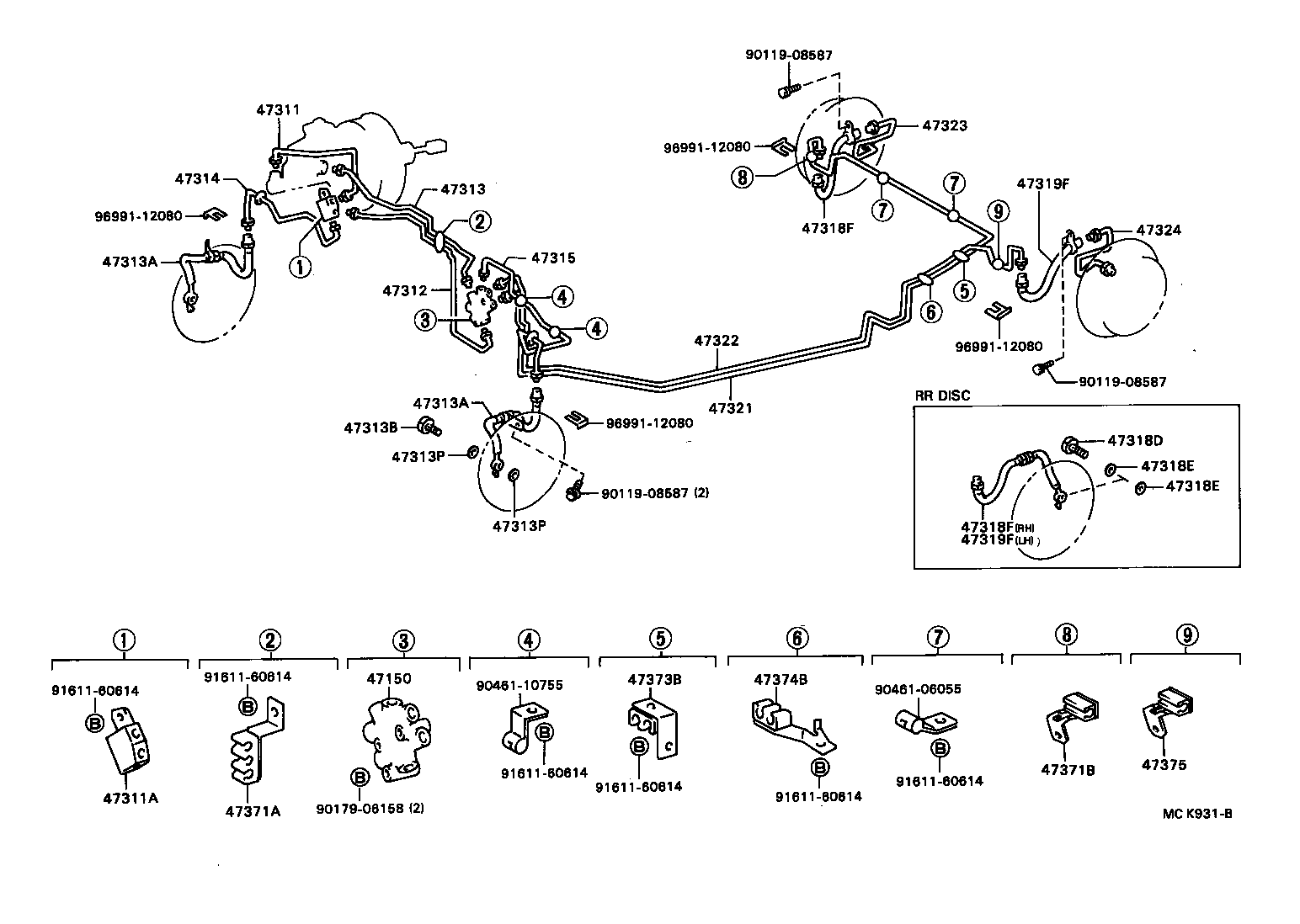

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 47371A 47371B 47373B 47374B 47375 9011908587 9011908587 9011908587 9017906158 9046106055 9046110755 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-32090

SV32,33..LUM,VE,VX,ZX

ｱﾘ(*66)

 1
47150-12110

CV30,SV32,33..ETO,LUM,VE,VR,VX,ZE,ZV,ZX

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-32090

CV30,SV3#,VZV3#

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10253

CV30,SV3#,VZV3#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-32150

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-32140

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02623

CV30,SV3#,VZV3#

右側

 1
90947-02640

CV30,SV3#,VZV3#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02623

CV30,SV3#,VZV3#

右側

 1
90947-02640

CV30,SV3#,VZV3#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV30,SV3#,VZV3#

 2
90401-10045

CV30,SV3#,VZV3#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV30,SV3#,VZV3#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV30,SV3#,VZV3#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-32130

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-32110

CV30,SV3#,VZV3#

 1
47315-32120

SV3#,VZV3#

ｱﾘ(*66)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

SV32,33,35,VZV3#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

SV32,33,35,VZV3#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

SV32,33,35,VZV3#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02650

SV32,VZV30,32

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02650

SV32,VZV30,32

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02651

SV32,VZV30,32

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02651

SV32,VZV30,32

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32120

CV30,SV30,32,33,VZV3#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32110

CV30,SV30,32,33,VZV3#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32090

SV3#,VZV3#

ｱﾘ(*66)

 1
47371-32080

CV30,SV3#,VZV3#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32130

CV30,SV30,32,33,VZV3#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-32110

CV30,SV3#,VZV3#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-32120

CV30,SV3#,VZV3#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-32140

CV30,SV30,32,33,VZV3#

 1
Common parts
90119-08587
90179-06158
90461-06055
90461-10755
91611-60614
96991-12080

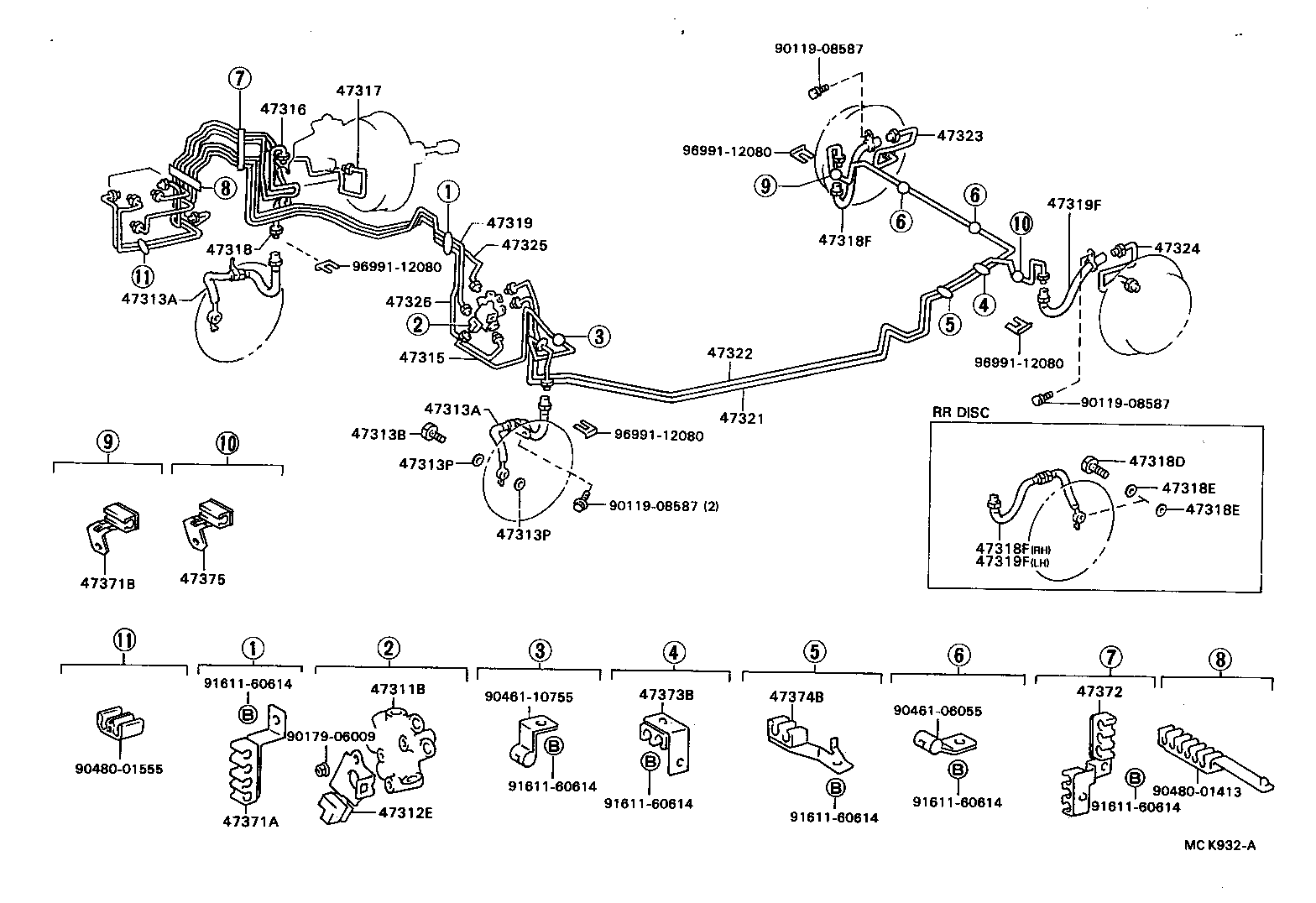

ILLUST NO. 1 OF 2(9007-9206)

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 47311B 47312E 47313A 47313A 47313B 47313P 47313P 47315 47316 47317 47318 47318D 47318E 47318E 47318F 47318F 47319 47319F 47319F 47321 47322 47323 47324 47325 47326 47371A 47371B 47372 47373B 47374B 47375 9011908587 9011908587 9011908587 9017906009 9046106055 9046110755 9048001413 9048001555 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10140

SV3#,VZV30,31

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10155

SV3#,VZV30,31

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02623

CV30,SV3#,VZV3#

右側

 1
90947-02640

CV30,SV3#,VZV3#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02623

CV30,SV3#,VZV3#

右側

 1
90947-02640

CV30,SV3#,VZV3#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CV30,SV3#,VZV3#

 2
90401-10045

CV30,SV3#,VZV3#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV30,SV3#,VZV3#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

CV30,SV3#,VZV3#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-32110

CV30,SV3#,VZV3#

 1
47315-32120

SV3#,VZV3#

ｱﾘ(*66)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-32030

SV3#,VZV30,31

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-32030

SV3#,VZV30,31

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-32020

SV3#,VZV30,31

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

SV32,33,35,VZV3#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

SV32,33,35,VZV3#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

SV32,33,35,VZV3#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02650

SV32,VZV30,32

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02650

SV32,VZV30,32

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-32030

SV3#,VZV30,31

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02651

SV32,VZV30,32

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02651

SV32,VZV30,32

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-32120

CV30,SV30,32,33,VZV3#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-32110

CV30,SV30,32,33,VZV3#

 1
47325 - TUBE, REAR BRAKE, NO.5
47323-32080

SV3#,VZV30,31

 1
47326 - TUBE, REAR BRAKE, NO.6
47324-32090

SV3#,VZV30,31

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-32090

SV3#,VZV3#

ｱﾘ(*66)

 1
47371-32080

CV30,SV3#,VZV3#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-32130

CV30,SV30,32,33,VZV3#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-32100

SV3#,VZV30,31

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-32110

CV30,SV3#,VZV3#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-32120

CV30,SV3#,VZV3#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-32140

CV30,SV30,32,33,VZV3#

 1
Common parts
90119-08587
90179-06009
90461-06055
90461-10755
90480-01413
90480-01555
91611-60614
96991-12080

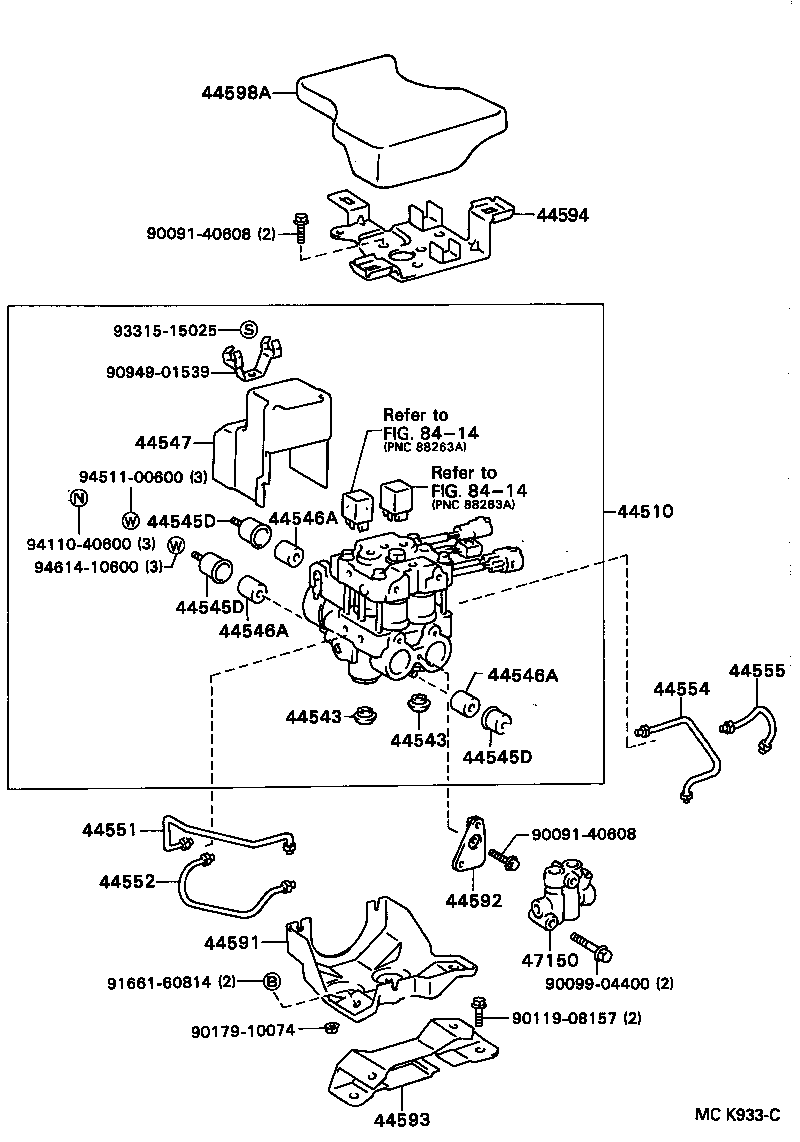

ILLUST NO. 2 OF 2(9007-9206)

Click highlighted areas on diagram

ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 44510 44543 44543 44545D 44545D 44545D 44546A 44546A 44546A 44547 44551 44552 44554 44555 44591 44592 44593 44594 44598A 47150 8414 8414 9009140608 9009140608 9009904400 9011908157 9017910074 9094901539 9166160814 9331515025 9411040600 9451100600 9461410600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-32040

SV32,33,35,VZV30,31

 1
44543 - CAP, RUBBER
44543-14010

SV3#,VZV30,31

 2
44543 - CAP, RUBBER
44543-14010

SV3#,VZV30,31

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

SV3#,VZV30,31

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

SV3#,VZV30,31

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-14010

SV3#,VZV30,31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

SV3#,VZV30,31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

SV3#,VZV30,31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-14010

SV3#,VZV30,31

 3
44547 - CASE, RELAY(FOR BRAKE ACTUATOR)
44547-32040

SV32,33,35,VZV30,31

 1
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-32020

SV3#,VZV30,31

 1
44552 - TUBE, BRAKE ACTUATOR, NO.2
44552-32030

SV3#,VZV30,31

 1
44554 - TUBE, BRAKE ACTUATOR, NO.4
44554-32020

SV3#,VZV30,31

 1
44555 - TUBE, BRAKE ACTUATOR, NO.5
44555-32040

SV3#,VZV30,31

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-32020

SV3#,VZV30,31

 1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-32020

SV3#,VZV30,31

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-32020

SV3#,VZV30,31

 1
44594 - BRACKET, BRAKE ACTUATOR, NO.4
44594-32010

SV3#,VZV30,31

 1
44598A - COVER, BRAKE ACTUATOR
44598-32020

SV3#,VZV30,31

 1
47150 - VALVE ASSY, PROPORTIONING
47150-32090

SV32,33..LUM,VE,VX,ZX

ｱﾘ(*66)

 1
47150-12110

CV30,SV32,33..ETO,LUM,VE,VR,VX,ZE,ZV,ZX

 1
Common parts
90091-40608
90099-04400
90119-08157
90179-10074
90949-01539
91661-60814
93315-15025
94110-40600
94511-00600
94614-10600
Linked diagrams
8414
