SV32-BEPGK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

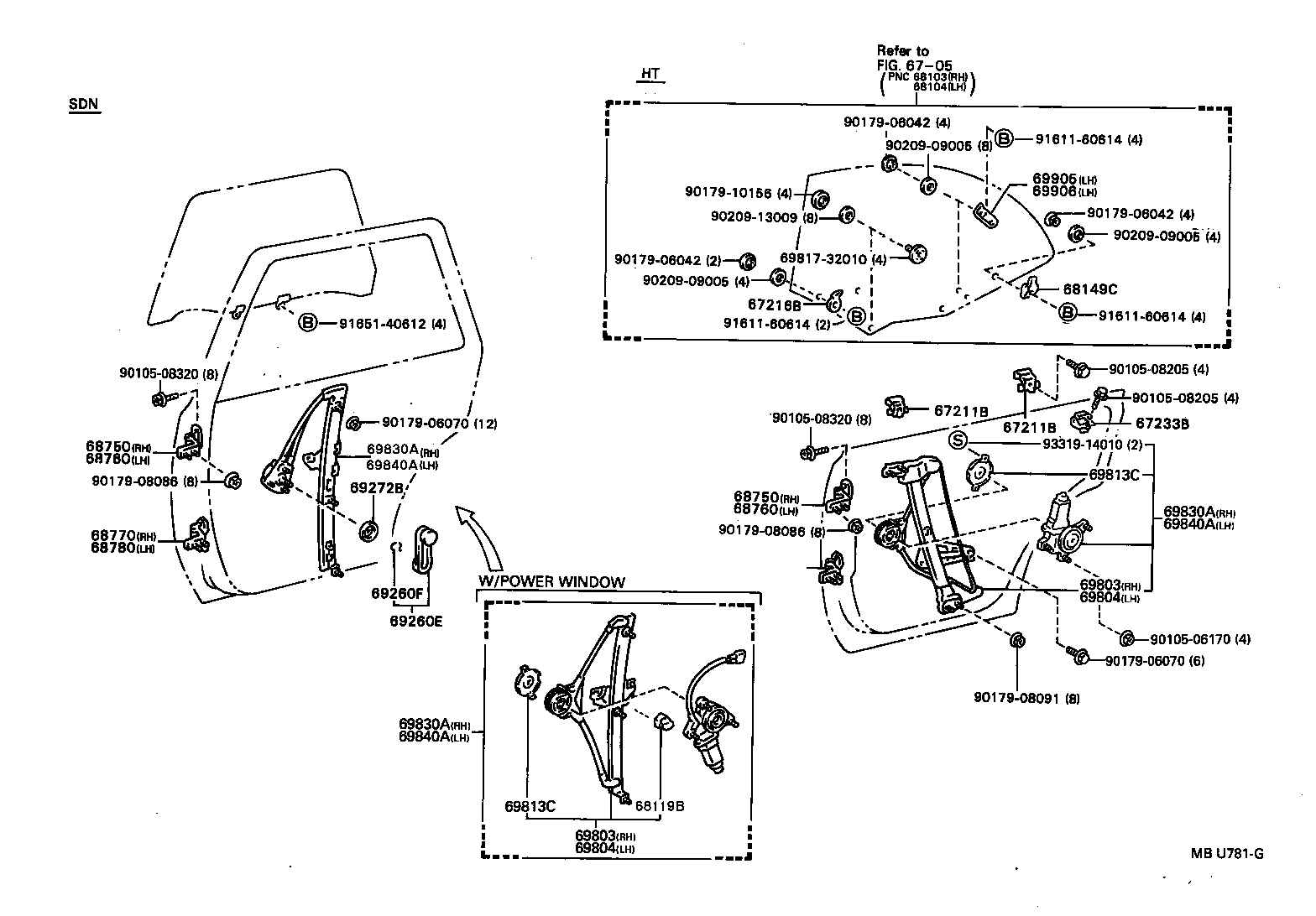

Click highlighted areas on diagram

diagram 6705 67211B 67211B 67216B 67233B 68119B 68149C 68750 68750 68760 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69813C 69813C 6981732010 69830A 69830A 69830A 69840A 69840A 69840A 69905 69906 9010506170 9010508205 9010508205 9010508320 9010508320 9017906042 9017906042 9017906042 9017906070 9017906070 9017908086 9017908086 9017908091 9017910156 9020909005 9020909005 9020909005 9020913009 9161160614 9161160614 9161160614 9165140612 9331914010
Part # Description Qty Price
68119B - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2
69888-33011

CV30,SV3#..SED

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32040

CV30,SV3#,VZV3#

 1
68750-32041

CV30,SV3#,VZV3#

 1
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32040

CV30,SV3#,VZV3#

 1
68750-32041

CV30,SV3#,VZV3#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32040

CV30,SV3#,VZV3#

 1
68760-32041

CV30,SV3#,VZV3#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32040

CV30,SV3#,VZV3#

 1
68760-32041

CV30,SV3#,VZV3#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32040

CV30,SV3#..SED

 1
68770-32041

CV30,SV3#..SED

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32040

CV30,SV3#..SED

 1
68780-32041

CV30,SV3#..SED

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69803-32050

CV30,SV3#..SED

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69803-32050

CV30,SV3#..SED

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32050

CV30,SV3#..SED

 1
69804-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-32050

CV30,SV3#..SED

 1
69804-32050

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69813-32010

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 2
69813-32010

CV30,SV3#..SED

 2
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69813-32010

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)

 2
69813-32010

CV30,SV3#..SED

 2
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-32090

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)

 1
Common parts
69817-32010
90105-06170
90105-08205
90105-08320
90179-06042
90179-06070
90179-08086
90179-08091
90179-10156
90209-09005
90209-13009
91611-60614
91651-40612
93319-14010
Linked diagrams
6705
