SV32-BEMNK (1992)

Toyota Camry/Vista

Production Jun 1992 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

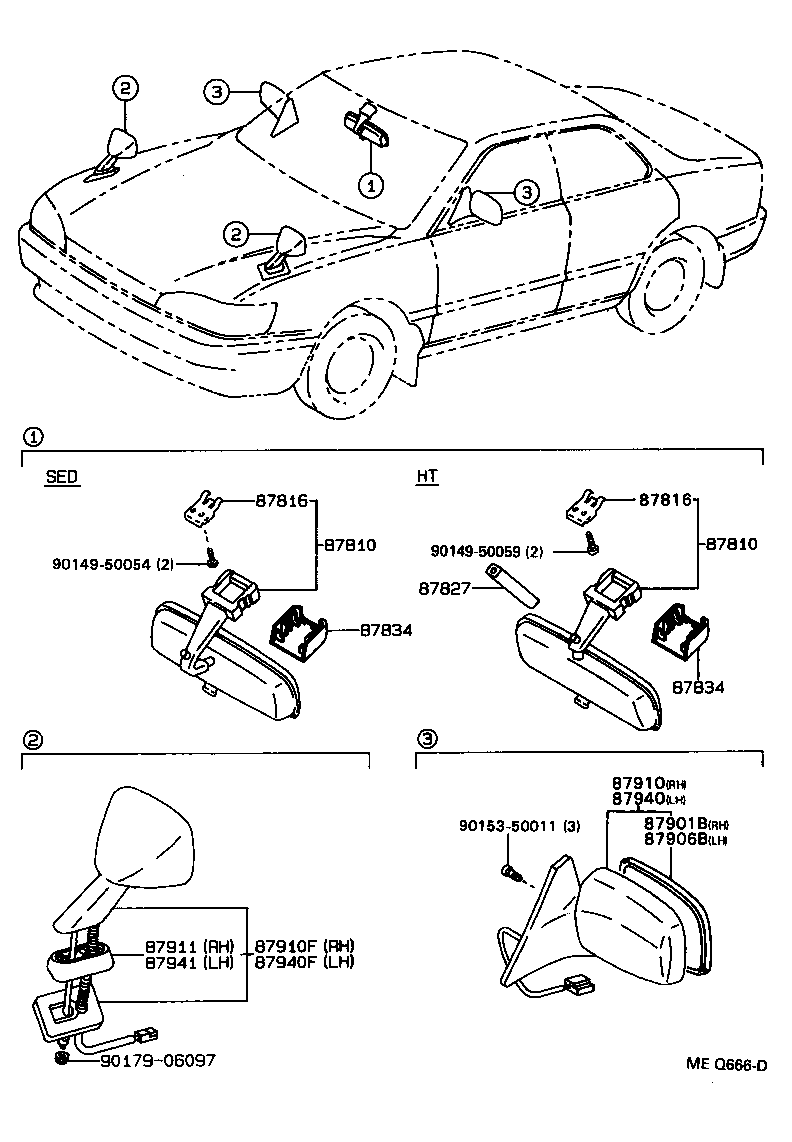

Click highlighted areas on diagram

diagram 87810 87810 87816 87816 87827 87834 87834 87901B 87906B 87910 87910F 87911 87940 87940F 87941 9014950054 9014950059 9015350011 9017906097
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2219012

CV30,SV3#..SED

TAUPE,TRIM9#

 1
87810-22190K0

CV30,SV3#..SED

TAUPE,TRIM9#

 1
87810-22190B0

CV30,SV3#..SED

MEDIUM GRAY,TRIM1#

 1
87810-22190E1

CV30,SV3#..SED

OAK,TRIM4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2219012

CV30,SV3#..SED

TAUPE,TRIM9#

 1
87810-22190K0

CV30,SV3#..SED

TAUPE,TRIM9#

 1
87810-22190B0

CV30,SV3#..SED

MEDIUM GRAY,TRIM1#

 1
87810-22190E1

CV30,SV3#..SED

OAK,TRIM4#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

CV30,SV3#,VZV3#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

CV30,SV3#,VZV3#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-3201003

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
87834-32010K0

CV30,SV3#,VZV3#

TAUPE,TRIM9#

 1
87834-32010B0

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
87834-3201002

CV30,SV3#,VZV3#

LIGHT TAUPE,TRIM9#

 1
87834-32010E0

CV30,SV3#,VZV3#

LIGHT OAK,TRIM4#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-3201003

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
87834-32010K0

CV30,SV3#,VZV3#

TAUPE,TRIM9#

 1
87834-32010B0

CV30,SV3#,VZV3#

LIGHT GRAY,TRIM1#

 1
87834-3201002

CV30,SV3#,VZV3#

LIGHT TAUPE,TRIM9#

 1
87834-32010E0

CV30,SV3#,VZV3#

LIGHT OAK,TRIM4#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-32510

CV30,SV3#,VZV3#

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-32540

CV30,SV3#,VZV3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-3251002

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

RED MICA M,3J9

 1
87910-3251003

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

DK BLUISH GRAY MICA,191

 1
87910-3251007

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

MED TURQUOISE OPAL,744

 1
87910-3251008

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

SUPER WHITE 2,040

 1
87910-3251013

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

AMETHYST SILVER M,920

 1
87910-32510G2

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

DK GREEN MICA,6M1

 1
87910-32510E1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

LI.BEIGE ME,4M3

 1
87910-32510K1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

GRAYISH PURPLE M,923

 1
87910-32510A1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

SUPER WHITE 2,040

 1
87910-32510G1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

GRAYISH GREEN M.,6K6

 1
87910-3251011

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

DK BLUISH GRAY MICA,191

 1
87910F - MIRROR ASSY, FENDER, RH
87910-32480

CV30,SV3#..SED

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-32040

CV30,SV3#..SED

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-3254002

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

RED MICA M,3J9

 1
87940-3254008

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

SUPER WHITE 2,040

 1
87940-3254013

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

AMETHYST SILVER M,920

 1
87940-3254003

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

DK BLUISH GRAY MICA,191

 1
87940-3254007

CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)

MED TURQUOISE OPAL,744

 1
87940-32540A1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

SUPER WHITE 2,040

 1
87940-3254011

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

DK BLUISH GRAY MICA,191

 1
87940-32540K1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

GRAYISH PURPLE M,923

 1
87940-32540E1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

LI.BEIGE ME,4M3

 1
87940-32540G2

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

DK GREEN MICA,6M1

 1
87940-32540G1

CV30,SV3#..SED..(ETO,LUM,VR,VX,ZE,ZX)

GRAYISH GREEN M.,6K6

 1
87940F - MIRROR ASSY, FENDER, LH
87940-32510

CV30,SV3#..SED

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-32040

CV30,SV3#..SED

 1
Common parts
90149-50054
90149-50059
90153-50011
90179-06097
