SV32-BEMMK (1990)
Toyota Camry/Vista
(9007- )CV30,SV30,32,VZV30,32

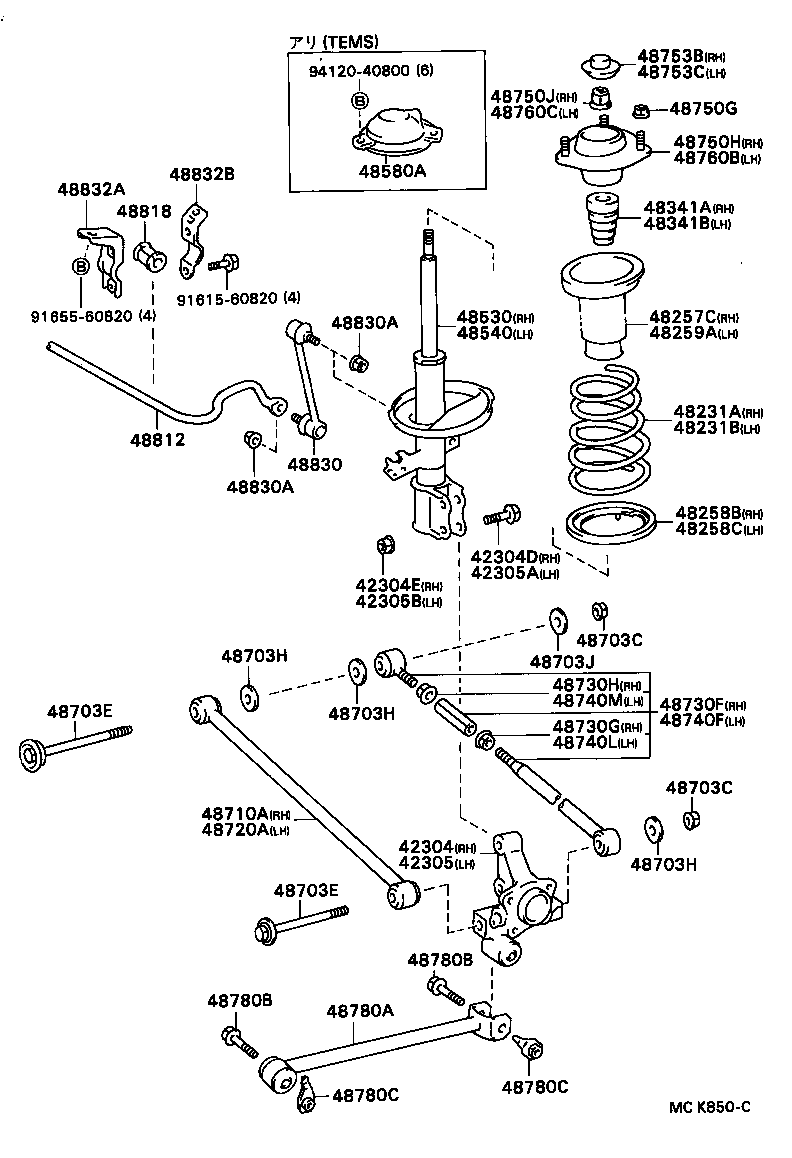

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20090 |
SV32,VZV30,32 ｱﾘ(*66) |
1 | ||
| 42304-20070 |
SV32,VZV30,32 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
CV30,SV3#,VZV3# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
CV30,SV3#,VZV3# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-20090 |
SV32,VZV30,32 ｱﾘ(*66) |
1 | ||
| 42305-20070 |
SV32,VZV30,32 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
CV30,SV3#,VZV3# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
CV30,SV3#,VZV3# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-32820 |
SV32..ETO,LUM,VE,VX,ZX |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-32820 |
SV32..ETO,LUM,VE,VX,ZX |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-32060 |
SV32,33,VZV3# |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48259-32020 |
SV32,33,VZV3# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32050 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32050 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-32240 |
SV32,33..ETO,LUM,VE,VX,ZX ﾏｰｸ 48530−32240 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-32240 |
SV32,33..ETO,LUM,VE,VX,ZX ﾏｰｸ 48540−32240 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CV30,SV30,32,VZV30,32 |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CV30,SV30,32,VZV30,32 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19001 |
CV30,SV30,32,VZV30,32 *14−1.50PX260−26,CARRIER SIDE |
2 | ||
| 90901-09001 |
CV30,SV30,32,VZV30,32 *14−1.50PX260−26,BODY SIDE |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19001 |
CV30,SV30,32,VZV30,32 *14−1.50PX260−26,CARRIER SIDE |
2 | ||
| 90901-09001 |
CV30,SV30,32,VZV30,32 *14−1.50PX260−26,BODY SIDE |
2 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
CV30,SV30,32,VZV30,32 |
6 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
CV30,SV30,32,VZV30,32 |
6 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
CV30,SV30,32,VZV30,32 |
6 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 48715-32010 |
CV30,SV30,32,VZV30,32 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-32040 |
CV30,SV32,VZV30,32 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-32040 |
CV30,SV32,VZV30,32 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-32060 |
CV30,SV32,VZV30,32 |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-16018 |
CV30,SV30,32,VZV30,32 |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-16004 |
CV30,SV30,32,VZV30,32 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-32020 |
CV30,SV32,VZV30,32 |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-16004 |
CV30,SV30,32,VZV30,32 |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-16018 |
CV30,SV30,32,VZV30,32 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CV30,SV3#,VZV3# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-32130 |
SV32,33,VZV3# |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94182-11400 |
CV30,SV3#,VZV3# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-32050 |
SV32,33,VZV3# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-32050 |
SV32,33,VZV3# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-32040 |
SV32,33,VZV3# |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94182-11400 |
CV30,SV3#,VZV3# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12010 |
CV30,SV30,32,35,VZV30,32 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV30,SV30,32,35,VZV30,32 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV30,SV30,32,35,VZV30,32 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
CV30,SV3#,VZV3# BODY SIDE |
2 | ||
| 90179-12062 |
CV30,SV30,32,35,VZV30,32 CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
CV30,SV3#,VZV3# BODY SIDE |
2 | ||
| 90179-12062 |
CV30,SV30,32,35,VZV30,32 CARRIER SIDE |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-32310 |
CV30,SV32..ETO,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-32070 |
SV33..GT;CV30,SV32..ETO,LUM,VE,VR,VX,ZE,ZV,ZX |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-32030 |
CV30,SV32,33,VZV3# |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32030 |
CV30,SV32,33,VZV3# |
2 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-32040 |
CV30,SV32,33,VZV3# |
2 | ||
| Common parts | ||||
| 91615-60820 | ||||
| 91655-60820 | ||||
| 94120-40800 | ||||
