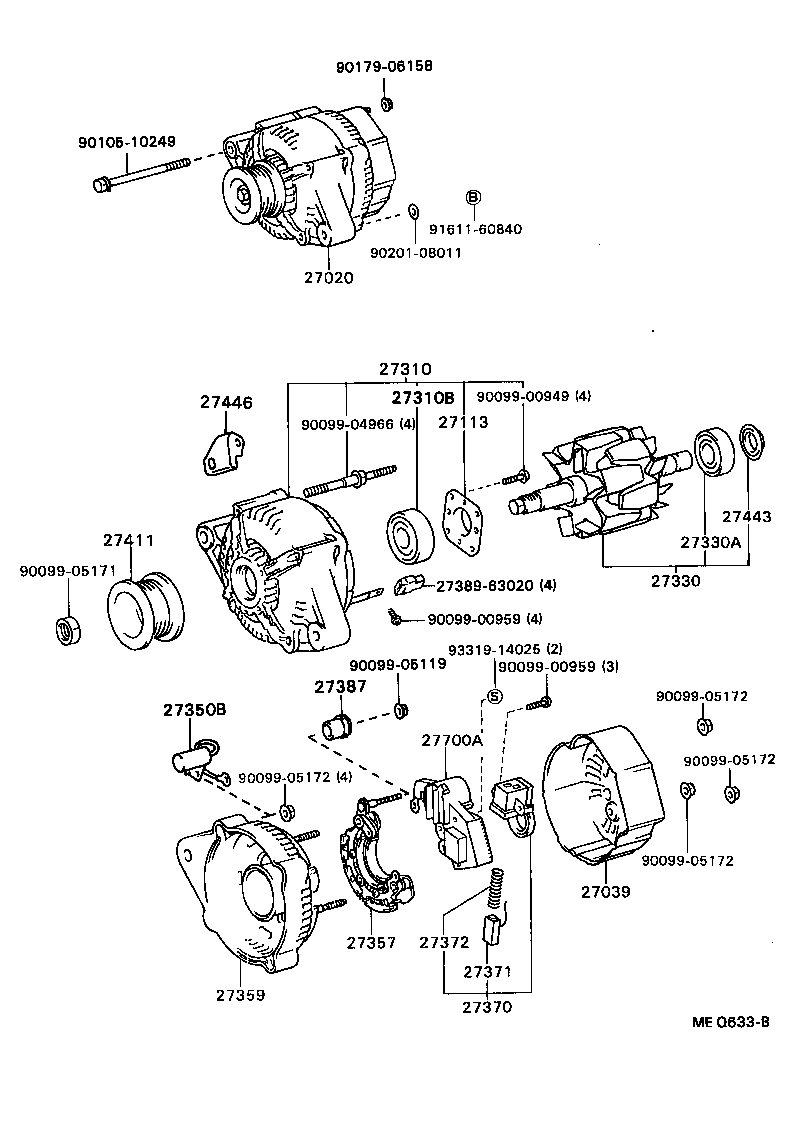

Toyota Camry/vista SV32 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-74210	3SFE,4SFE..SV3#..5F 12V 70A	07/1990 - 06/1992	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-70200	1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 06/1994	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70100	3SFE,4SFE..SV3#..5F	07/1990 - 06/1994	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 06/1994	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101	1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 06/1994	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#	07/1990 - 06/1992	1
27350B - CONDENSER, ALTERNATOR
90099-52028	3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70081	3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74130	3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021	1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	1
27371 - BRUSH, ALTERNATOR
27371-63020	1VZFE,4VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	3SFE,4SFE..SV3#..5F	05/1991 - 06/1992	2
27372-72100	1VZFE..VZV3#;3SFE,4SFE..SV3#..5F	07/1990 - 05/1991	2
27387 - INSULATOR, TERMINAL
27387-74130	3SFE,4SFE..SV3#..5F	07/1990 - 06/1992	1
27411 - PULLEY, ALTERNATOR
27411-16211	3SFE,4SFE..SV3#..5F	07/1990 - 06/1994	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#	07/1990 - 06/1992	1
27700A - REGULATOR ASSY, GENERATOR
27700-46030	3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#	09/1991 - 06/1992	1
27700-74010	3S#,4SFE..SV3#	04/1991 - 09/1991	1
27700-74010	3S#,4SFE,1VZFE..SV3#,VZV3#	07/1990 - 04/1991	1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10249
90179-06158
90201-08011
91611-60840
93319-14025

SV32-BEMMK (1990)

(9007-9406)3SFE,4SFE..5F
