SV32-AEPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

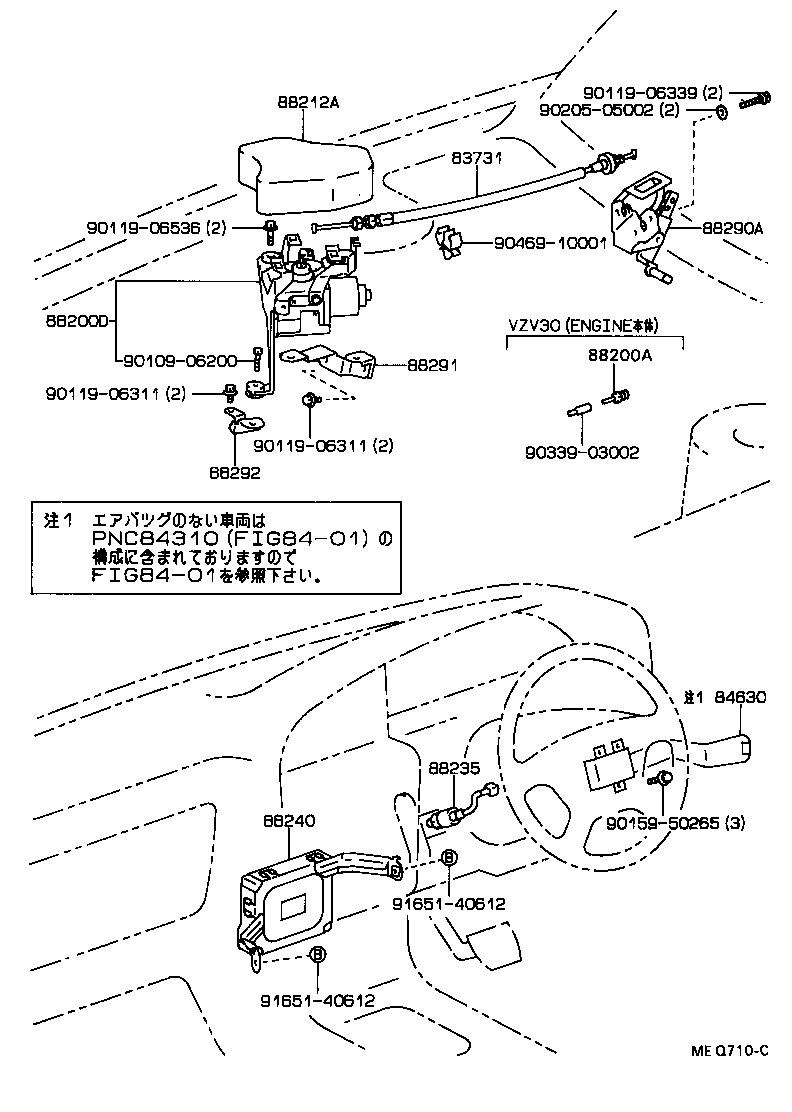

Click highlighted areas on diagram

diagram 83731 84630 88200A 88200D 88212A 88235 88240 88290A 88291 88292 9010906200 9011906311 9011906311 9011906339 9011906536 9015950265 9020505002 9033903002 9046910001 9165140612 9165140612
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-32010

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
83731-32010

SV3#..GT,VR,VX,ZE,ZX

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20090

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
84630-20090

SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-32090

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88200-32090

SV3#..GT,VR,VX,ZE,ZX

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-32050

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88212-32050

SV3#..GT,VR,VX,ZE,ZX

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-32160

SV3#..GT,VR,VX,ZE,ZX

 1
88240-32160

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-32010

SV3#..GT,VR,VX,ZE,ZX

 1
88290-32010

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-32040

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88291-32040

SV3#..GT,VR,VX,ZE,ZX

 1
88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2
88292-32040

SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX

 1
88292-32040

SV3#..GT,VR,VX,ZE,ZX

 1
Common parts
90109-06200
90119-06311
90119-06339
90119-06536
90159-50265
90205-05002
90339-03002
90469-10001
91651-40612
