SV32-AEPVF (1990)
Toyota Camry/Vista

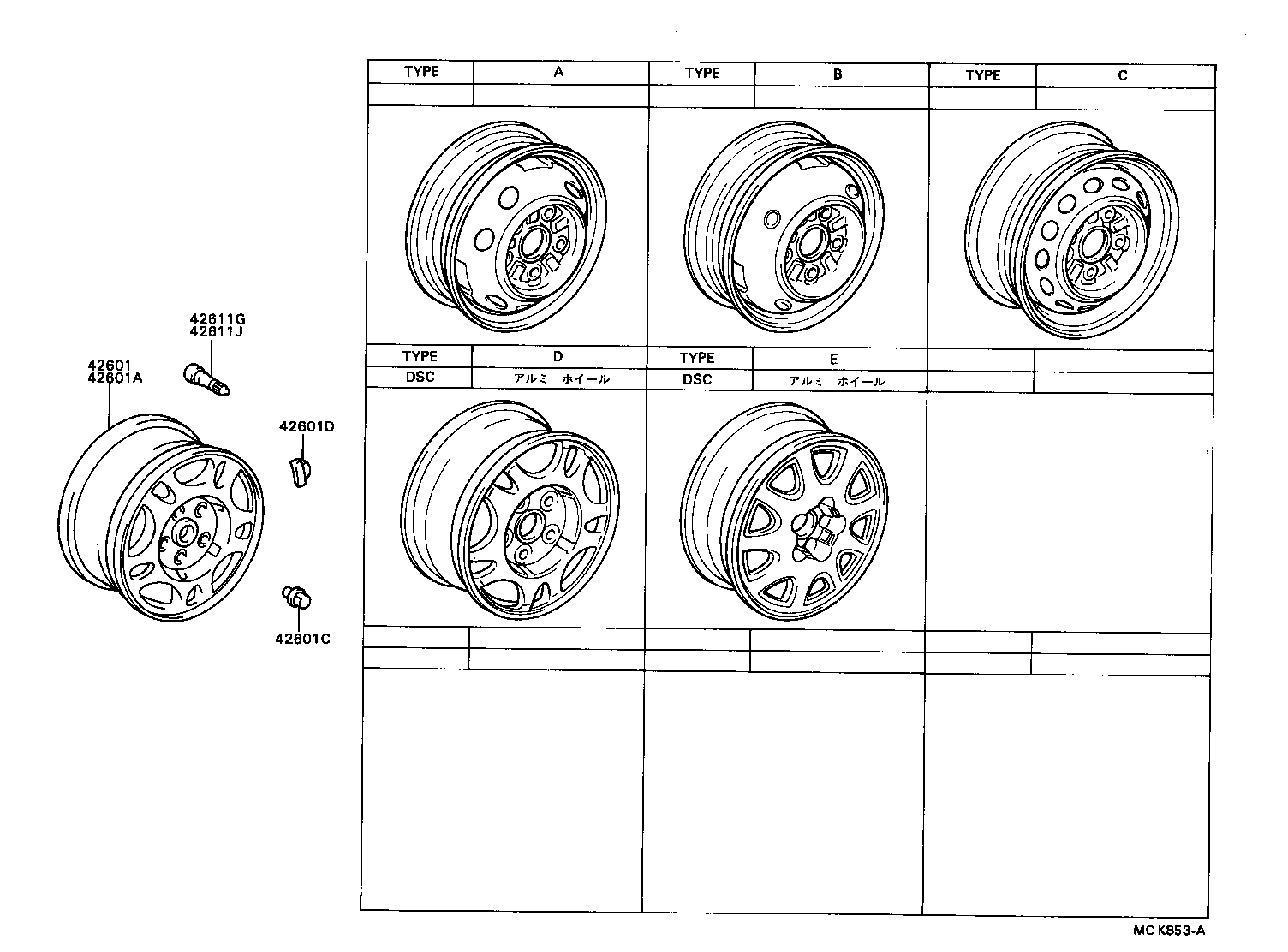

ILLUST NO. 1 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-32300 |
SV32,33,VZV32,33..GT,PRO 15X5.5JJ,#,TYPE D |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-28210 |
SV32,33,VZV3#..GT,PRO 16X4T,TYPE B |
1 | ||
| 42611-32300 |
SV32,33,VZV32,33..GT,PRO 15X5.5JJ,#,TYPE D |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01062 |
SV32,33,VZV32,33..GT,PRO ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
20 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03148 |
SV32,33,VZV32,33..GT,PRO 20G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03151 |
SV32,33,VZV32,33..GT,PRO 35G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03147 |
SV32,33,VZV32,33..GT,PRO 15G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03149 |
SV32,33,VZV32,33..GT,PRO 25G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03150 |
SV32,33,VZV32,33..GT,PRO 30G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03152 |
SV32,33,VZV32,33..GT,PRO 40G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03146 |
SV32,33,VZV32,33..GT,PRO 10G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03167 |
SV32,33,VZV32,33..GT,PRO 5G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03154 |
SV32,33,VZV32,33..GT,PRO 50G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03158 |
SV32,33,VZV32,33..GT,PRO 70G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03153 |
SV32,33,VZV32,33..GT,PRO 45G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03157 |
SV32,33,VZV32,33..GT,PRO 65G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03209 |
SV32,33,VZV32,33..GT,PRO 12.5G,厚さ=7.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03156 |
SV32,33,VZV32,33..GT,PRO 60G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03155 |
SV32,33,VZV32,33..GT,PRO 55G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03159 |
SV32,33,VZV32,33..GT,PRO 75G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03213 |
SV32,33,VZV32,33..GT,PRO 32.5G,厚さ=8.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03208 |
SV32,33,VZV32,33..GT,PRO 7.5G,厚さ=6.1,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03214 |
SV32,33,VZV32,33..GT,PRO 37.5G,厚さ=8.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03212 |
SV32,33,VZV32,33..GT,PRO 27.5G,厚さ=8.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03211 |
SV32,33,VZV32,33..GT,PRO 22.5G,厚さ=8.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03210 |
SV32,33,VZV32,33..GT,PRO 17.5G,厚さ=8.0,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 90942-03160 |
SV32,33,VZV32,33..GT,PRO 80G,ｱﾘ(15ｲﾝﾁ ｱﾙﾐ ﾎｲ-ﾙ) |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
CV30,SV3#,VZV3# |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
CV30,SV3#,VZV3# |
1 | ||

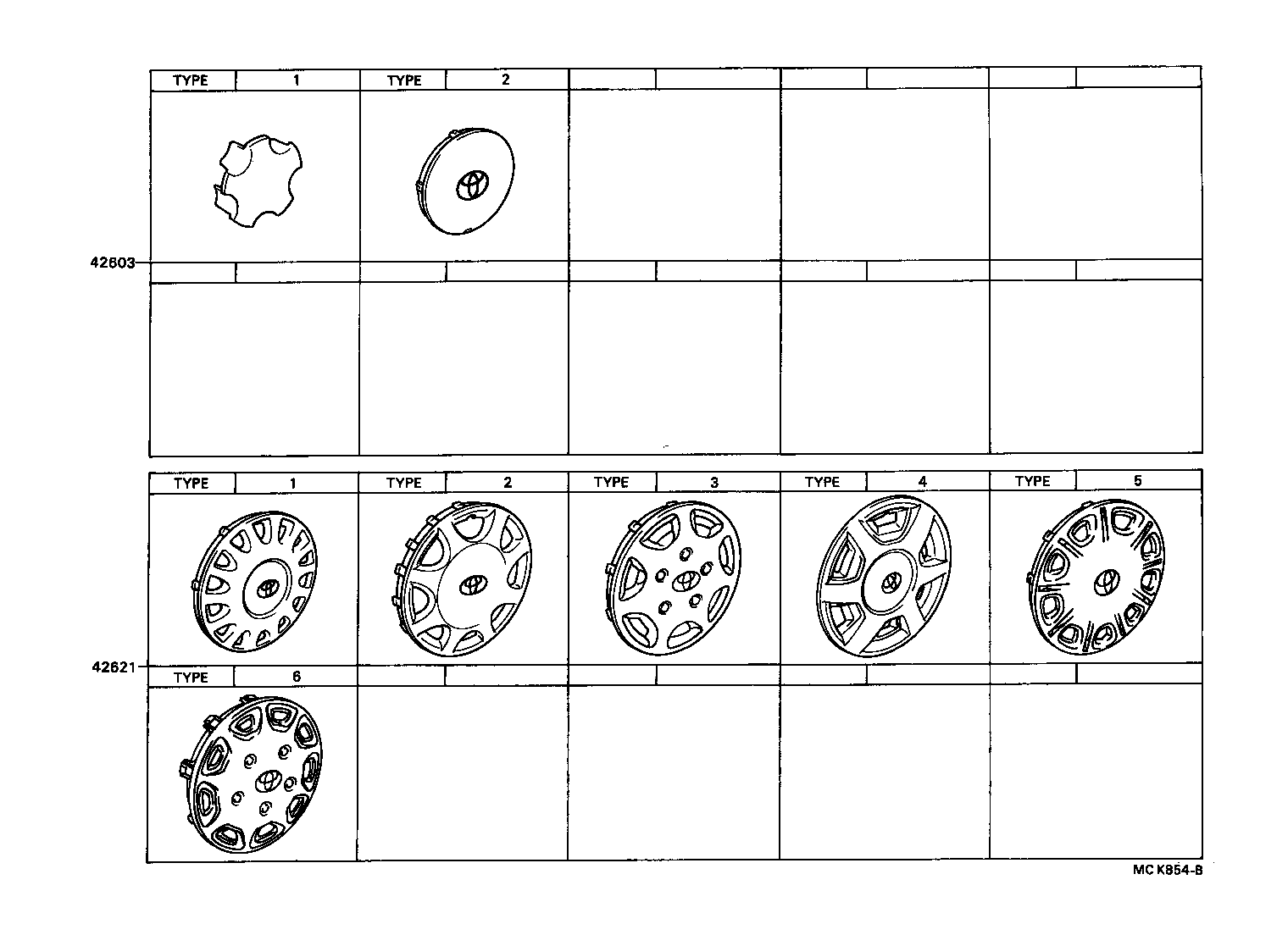

ILLUST NO. 2 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-32160 |
SV32,33,VZV3#..GT,PRO *ALU |
4 | ||
