SV32-AEPMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)

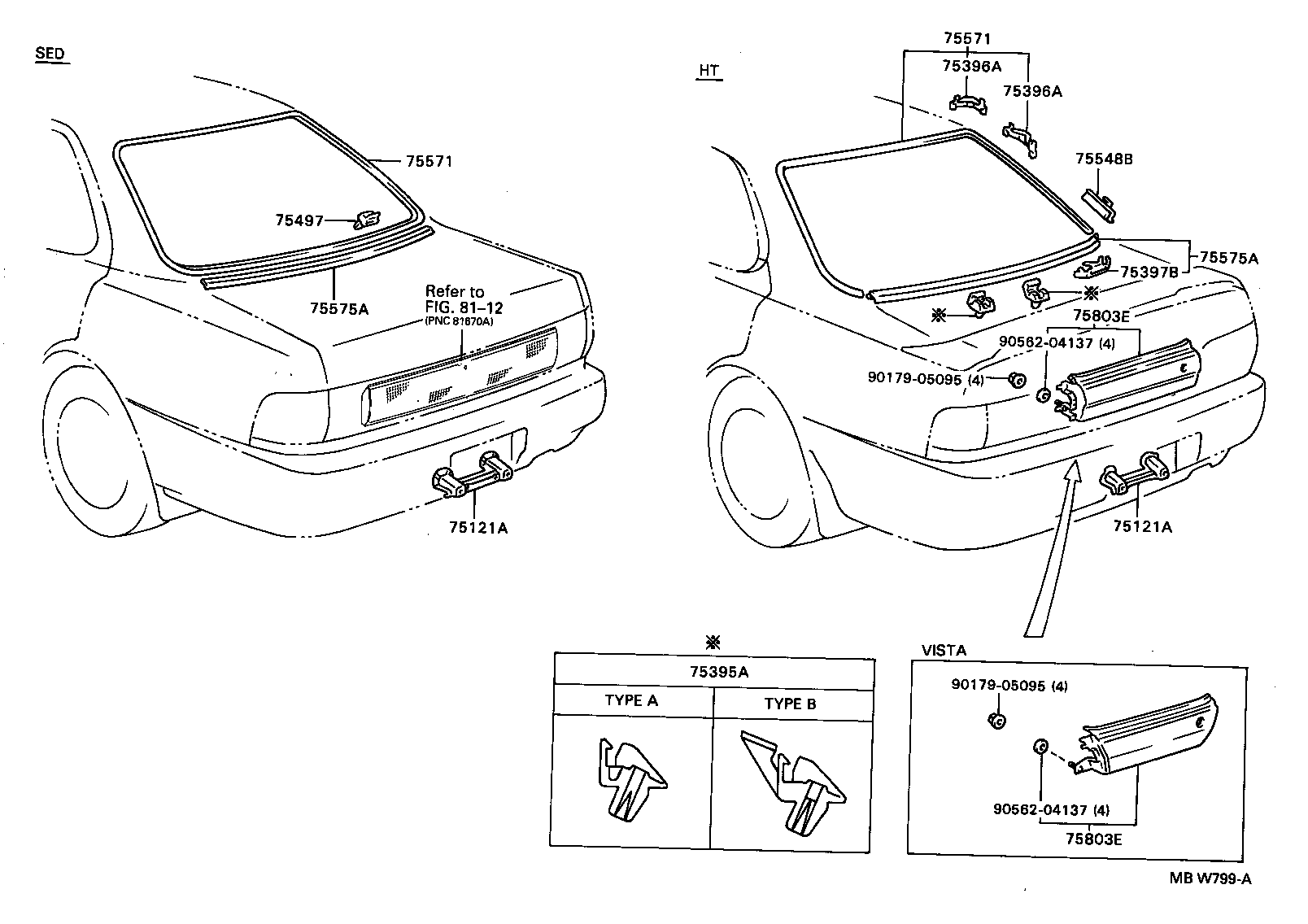

Click highlighted areas on diagram

diagram 75121A 75121A 75395A 75395A 75395A 75396A 75396A 75397B 75497 75548B 75571 75571 75575A 75575A 75803E 76801A 9010905066 9011605009 9011605032 9017905095 9017905095 9046706123 9046710134 9056204137
Part # Description Qty Price
75121A - BRACKET, REAR LICENSE PLATE
75121-32020

CV30,SV3#..SED

 1
75121A - BRACKET, REAR LICENSE PLATE
75121-32020

CV30,SV3#..SED

 1
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-32060

CV30,SV3#..SED

 7
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-32110

CV30,SV3#..SED

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-32110

CV30,SV3#..SED

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32080

CV30,SV3#..SED

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32080

CV30,SV3#..SED

 1
Common parts
90109-05066
90116-05009
90116-05032
90179-05095
90467-06123
90467-10134
90562-04137

(9206- )

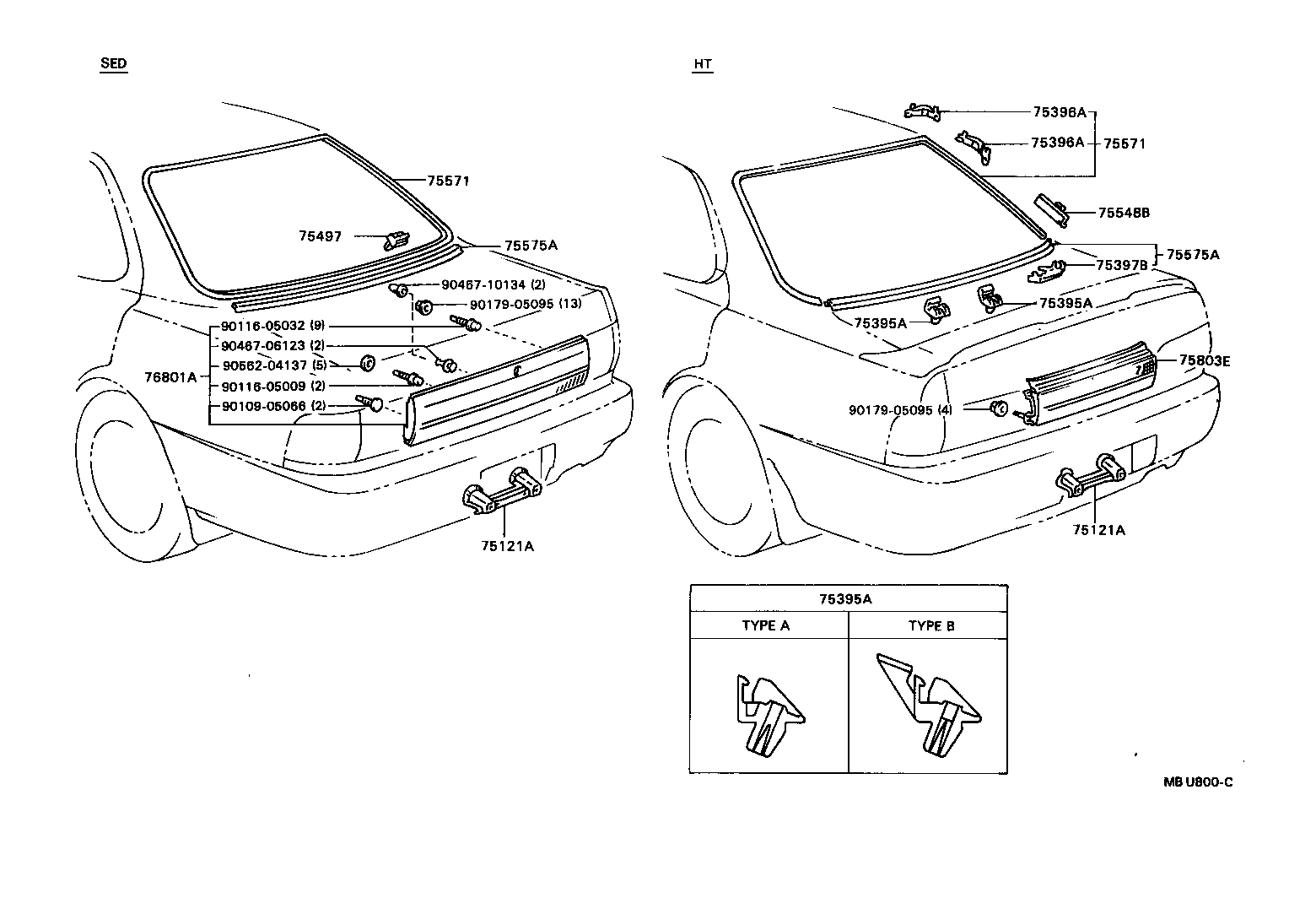

Click highlighted areas on diagram

diagram 75121A 75121A 75395A 75396A 75396A 75397B 75497 75548B 75571 75571 75575A 75575A 75803E 75803E 8112 9017905095 9017905095 9056204137 9056204137
Part # Description Qty Price
75121A - BRACKET, REAR LICENSE PLATE
75121-32020

CV30,SV3#..SED

 1
75121A - BRACKET, REAR LICENSE PLATE
75121-32020

CV30,SV3#..SED

 1
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-32060

CV30,SV3#..SED

 7
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-32110

CV30,SV3#..SED

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-32110

CV30,SV3#..SED

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32080

CV30,SV3#..SED

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-32080

CV30,SV3#..SED

 1
Common parts
90179-05095
90562-04137
Linked diagrams
8112
