SV32-AEPMK (1990)
Toyota Camry/Vista
(9007- )CV30,SV30,32,33..4FC
A140E,A140L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-32020 |
CV30,SV30,32,33..4FC |
1 | ||
| 41109 - CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41109-20011 |
CV30,SV30,32,33..4FC |
1 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV30,SV30,32,33..4FC |
2 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV30,SV30,32,33..4FC |
2 | ||
| 41109B - RING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90301-65003 |
CV30,SV30,32,33..4FC |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-76002 |
CV30,SV30,32,33..4FC |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41141-32041 |
CV30,SV30,32,33..4FC |
1 | ||
| 41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-99018 |
CV30,SV30,32,33..4FC |
1 | ||
| 41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90311-35019 |
CV30,SV30,32,33..4FC |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 91611-60825 |
CV30,SV30,32,33..4FC *8−1.25PX25−25 |
6 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-32012 |
CV30,SV30,32,33..4FC |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-08062 |
CV30,SV30,32,33..4FC *8−1.25PX29−24 |
11 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
CV30,SV30,32,33..4FC |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18038 |
CV30,SV30,32,33..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 90430-18008 |
CV30,SV30,32,33,VZV3#..4FC |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 41182A - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-32010 |
CV30,SV30,32,33..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32030 |
SV30,32,33..4FC |
1 | ||
| 41211-32080 |
SV30,32,33..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35050 |
CV30,SV30,32,33..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40010 |
CV30,SV30,32,33..4FC |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-32010 |
CV30,SV30,32,33..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32100 |
SV30,32,33..4FC;SV32,33..5F..GT |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
CV30,SV30,32,33 |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
CV30,SV30,32,33 |
4 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-20004 |
CV30,SV30,32,33..4FC |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-32010 |
CV30,SV30,32,33..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32023 |
CV30,SV30,32,33..4FC |
1 | ||
| 41301-32071 |
CV30,SV30,32,33..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45011 |
CV30,SV30,32,33 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-49005 |
CV30,SV30,32,33..4FC 厚さ=2.10,ﾏｰｸ 05 |
1 | ||
| 90564-49004 |
CV30,SV30,32,33..4FC 厚さ=2.05,ﾏｰｸ 04 |
1 | ||
| 90564-49009 |
CV30,SV30,32,33..4FC 厚さ=2.30,ﾏｰｸ 09 |
1 | ||
| 90564-49010 |
CV30,SV30,32,33..4FC 厚さ=2.35,ﾏｰｸ 10 |
1 | ||
| 90564-49001 |
CV30,SV30,32,33..4FC 厚さ=1.90,ﾏｰｸ 01 |
1 | ||
| 90564-49003 |
CV30,SV30,32,33..4FC 厚さ=2.00,ﾏｰｸ 03 |
1 | ||
| 90564-49006 |
CV30,SV30,32,33..4FC 厚さ=2.15,ﾏｰｸ 06 |
1 | ||
| 90564-49014 |
CV30,SV30,32,33..4FC 厚さ=2.55,ﾏｰｸ 14 |
1 | ||
| 90564-49002 |
CV30,SV30,32,33..4FC 厚さ=1.95,ﾏｰｸ 02 |
1 | ||
| 90564-49013 |
CV30,SV30,32,33..4FC 厚さ=2.50,ﾏｰｸ 13 |
1 | ||
| 90564-49015 |
CV30,SV30,32,33..4FC 厚さ=2.60,ﾏｰｸ 15 |
1 | ||
| 90564-49008 |
CV30,SV30,32,33..4FC 厚さ=2.25,ﾏｰｸ 08 |
1 | ||
| 90564-49012 |
CV30,SV30,32,33..4FC 厚さ=2.45,ﾏｰｸ 12 |
1 | ||
| 90564-49007 |
CV30,SV30,32,33..4FC 厚さ=2.20,ﾏｰｸ 07 |
1 | ||
| 90564-49016 |
CV30,SV30,32,33..4FC 厚さ=2.65,ﾏｰｸ 16 |
1 | ||
| 90564-49011 |
CV30,SV30,32,33..4FC 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 90564-49019 |
CV30,SV30,32,33..4FC 厚さ=2.80,ﾏｰｸ 19 |
1 | ||
| 90564-49018 |
CV30,SV30,32,33..4FC 厚さ=2.75,ﾏｰｸ 18 |
1 | ||
| 90564-49017 |
CV30,SV30,32,33..4FC 厚さ=2.70,ﾏｰｸ 17 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
CV30,SV30,32,33 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44001 |
CV30,SV30,32,33..4FC |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CV30,SV30,32,33 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-22030 |
CV30,SV30,32,33 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
CV30,SV30,32,33 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20050 |
CV30,SV30,32,33 |
1 | ||
| 41342-32020 |
CV30,SV30,32,33..4FC |
1 | ||
| 41342-32020 |
CV30,SV30,32,33 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CV30,SV30,32,33 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
CV30,SV30,32,33 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22040 |
CV30,SV30,32,33 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22160 |
CV30,SV30,32,33 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22020 |
CV30,SV30,32,33 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22150 |
CV30,SV30,32,33 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22140 |
CV30,SV30,32,33 厚さ=0.95,ﾏｰｸ 14 |
2 | ||

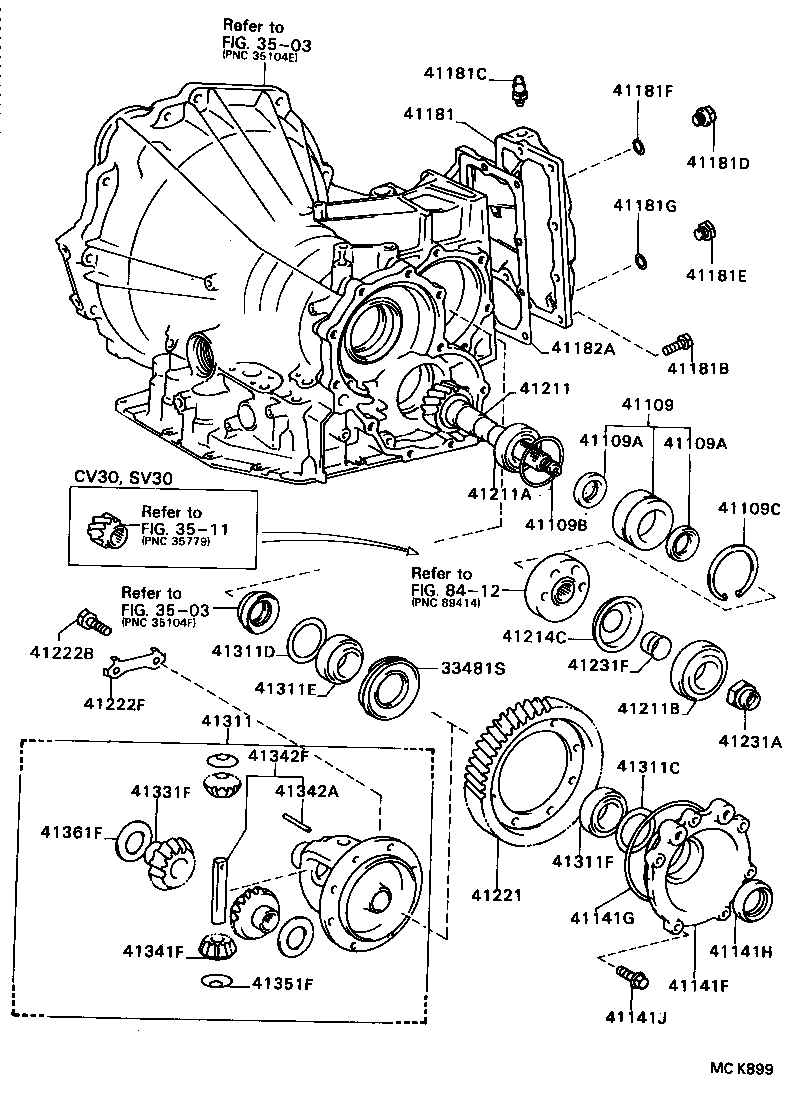

| Linked diagrams | ||||
| 3503 | ||||
| 3511 | ||||
| 8412 | ||||
