SV32-AEMVF (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
3SGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007- )3S#,4SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(9007-9206)3SGE

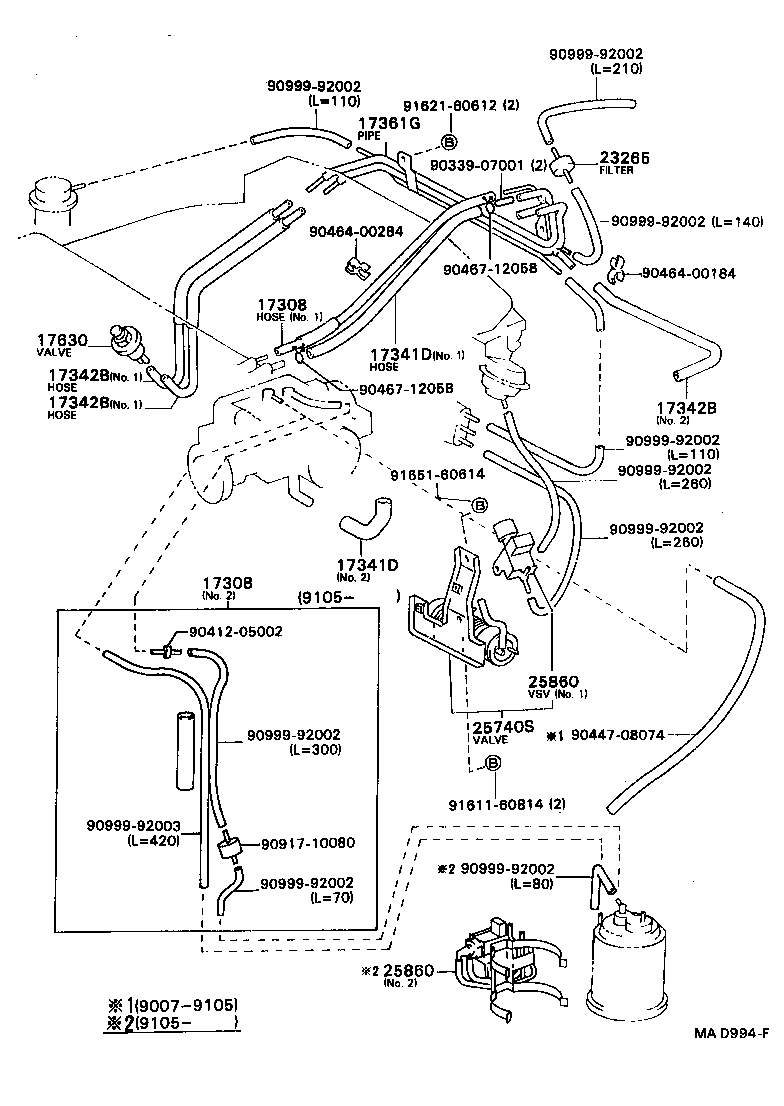

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-74070 |
3SGE..SV32,33 NO.1 |
1 | ||
| 17308-74200 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-74070 |
3SGE..SV32,33 NO.1 |
1 | ||
| 17308-74200 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74150 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17341-74140 |
3SGE..SV32,33 NO.1 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74150 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17341-74140 |
3SGE..SV32,33 NO.1 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-74100 |
3SGE..SV32,33 NO.1 |
2 | ||
| 17342-74050 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-74100 |
3SGE..SV32,33 NO.1 |
2 | ||
| 17342-74050 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-74100 |
3SGE..SV32,33 NO.1 |
2 | ||
| 17342-74050 |
3SGE..SV32,33 NO.2 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74040 |
3SGE..SV32,33 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74030 |
3SGE..SV32,33 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11021 |
3SGE..SV32,33 |
1 | ||
| 25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL) | ||||
| 25740-74010 |
3SGE..SV32,33 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74020 |
3SGE..SV32,33 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74020 |
3SGE..SV32,33 NO.1 |
1 | ||
| Common parts | ||||
| 90339-07001 | ||||
| 90412-05002 | ||||
| 90447-08074 | ||||
| 90464-00184 | ||||
| 90464-00284 | ||||
| 90467-12058 | ||||
| 90917-10080 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60814 | ||||
| 91621-60612 | ||||
| 91651-60614 | ||||
