SV32-AEMGK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )3SFE..SV32,33

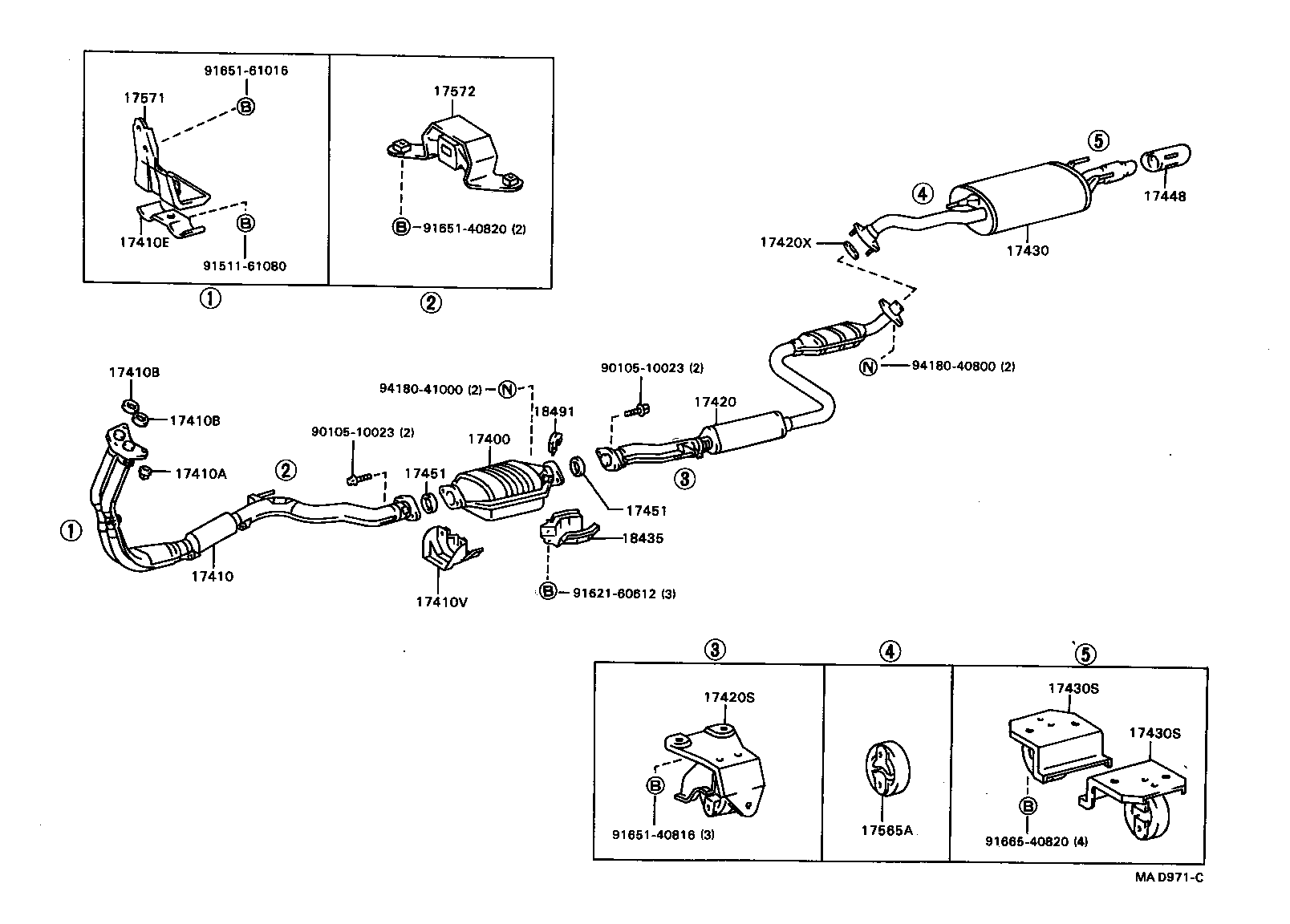

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17410V 17420 17420S 17420X 17430 17430S 17430S 17448 17451 17451 17565A 17571 17572 18435 18491 9010510023 9010510023 9151161080 9162160612 9165140816 9165140820 9165161016 9166540820 9418040800 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74310

3SFE..SV32,33

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74780

3SFE..SV32,33

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2CT,3S#..CV30,SV32,33,35

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

3SFE..SV32,33

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

3SFE..SV32,33

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

3SFE..SV32,33

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-62010

3S#,1VZFE,4VZFE..SV32,33,VZV3#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74540

3SFE..SV32,33

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-74070

3SFE..SV32,33

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

2CT,3SFE..CV30,SV32,33,35

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74890

3SFE..SV32,33

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74100

2CT,3S#,4SFE,1VZFE,4VZFE..CV30,SV3#,VZV3#

 2
17448 - BAFFLE, TAIL PIPE
17408-50010

3SFE..SV32,33,35;4SFE..SV30..LUM,VE,VR,ZE

 1
17408-74040

3SFE..SV32,33,35;4SFE..SV30..LUM,VR,ZE

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

CENTER

 1
90917-06043

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

FRONT

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

CENTER

 1
90917-06043

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

FRONT

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74280

3SFE..SV32,33

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-74080

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18436-74020

3SFE,1VZFE,4VZFE..SV32,33,VZV3#

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-28010

3SFE..SV32,33

 1
Common parts
90105-10023
91511-61080
91621-60612
91651-40816
91651-40820
91651-61016
91665-40820
94180-40800
94180-41000
