SV30-BTPNK (1990)
Toyota Camry/Vista
(9007- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32150 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-32150 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32300 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69055-32290 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-32300 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69055-32290 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32160 |
CV30,SV3#..HT..(ETO,VE) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-32160 |
CV30,SV3#..HT..(ETO,VE) |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32120 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-32120 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-32740 |
CV30,SV3#..HT..(ETO,VE) |
1 | ||
| 69005-32670 |
CV30,SV3#..HT..ETO |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00167 |
CV30,SV3#,VZV3#..HT ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00168 |
CV30,SV3#,VZV3#..HT ｻﾌﾞｷｰ |
1 | ||
| 90999-00166 |
CV30,SV3#,VZV30,31..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00167 |
CV30,SV3#,VZV3#..HT ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00168 |
CV30,SV3#,VZV3#..HT ｻﾌﾞｷｰ |
1 | ||
| 90999-00166 |
CV30,SV3#,VZV30,31..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00167 |
CV30,SV3#,VZV3#..HT ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00168 |
CV30,SV3#,VZV3#..HT ｻﾌﾞｷｰ |
1 | ||
| 90999-00166 |
CV30,SV3#,VZV30,31..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00167 |
CV30,SV3#,VZV3#..HT ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00168 |
CV30,SV3#,VZV3#..HT ｻﾌﾞｷｰ |
1 | ||
| 90999-00166 |
CV30,SV3#,VZV30,31..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00167 |
CV30,SV3#,VZV3#..HT ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00168 |
CV30,SV3#,VZV3#..HT ｻﾌﾞｷｰ |
1 | ||
| 90999-00166 |
CV30,SV3#,VZV30,31..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CV30,SV3#,VZV3# |
1 | ||
| 69555-20030 |
CV30,SV3#,VZV3# |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CV30,SV3#,VZV3# |
1 | ||
| 69555-20030 |
CV30,SV3#,VZV3# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
CV30,SV3#,VZV3#..HT 右側 |
1 | ||
| 69759-32110 |
CV30,SV3#,VZV3#..HT 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
CV30,SV3#,VZV3#..HT 右側 |
1 | ||
| 69759-32110 |
CV30,SV3#,VZV3#..HT 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
CV30,SV3#,VZV3#..HT 右側 |
1 | ||
| 69759-32110 |
CV30,SV3#,VZV3#..HT 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
CV30,SV3#,VZV3#..HT 右側 |
1 | ||
| 69759-32110 |
CV30,SV3#,VZV3#..HT 左側 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 91651-40620 | ||||
| 91656-40620 | ||||

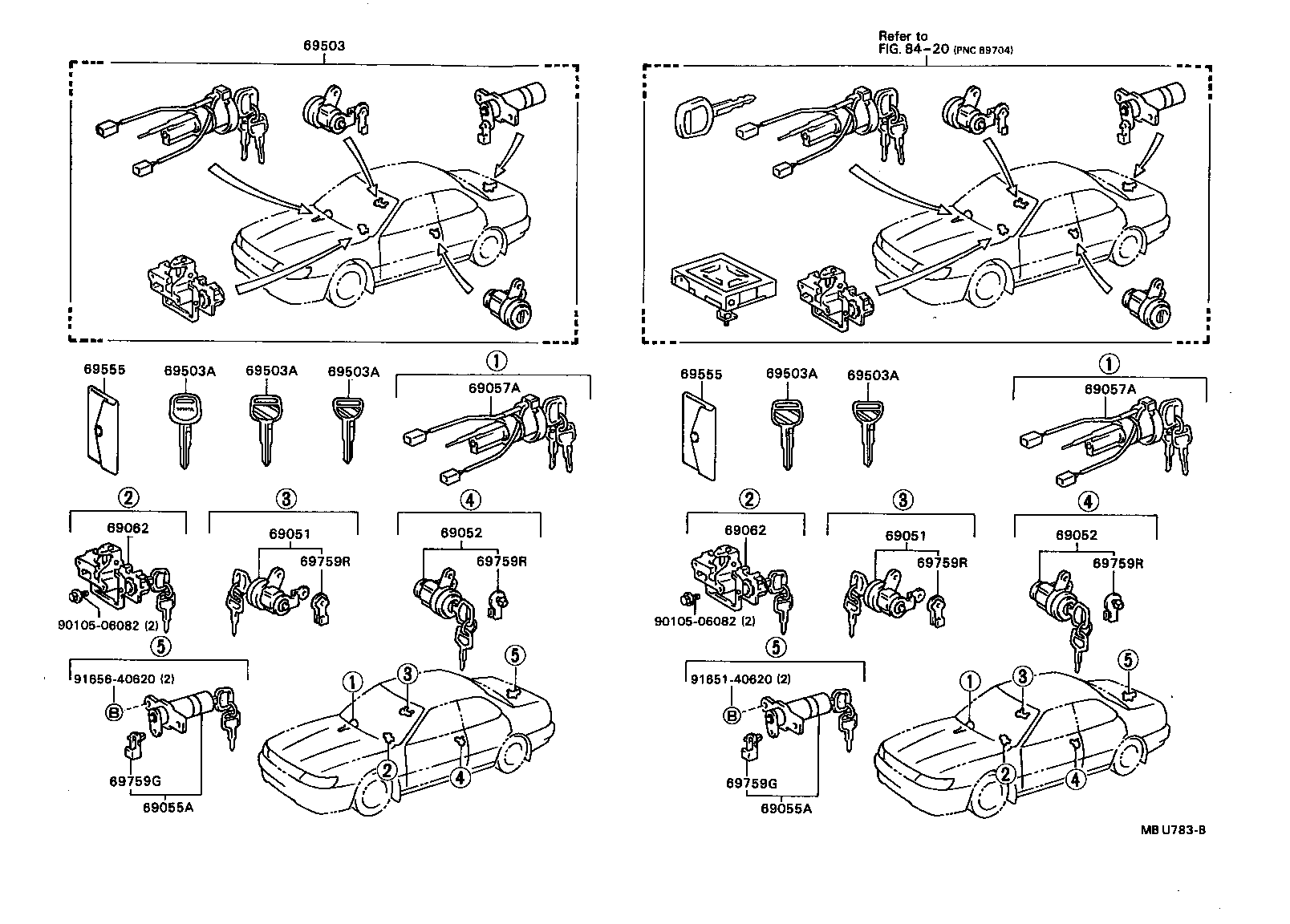

| Linked diagrams | ||||
| 8420 | ||||
