SV30-BTPMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 4SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)HT

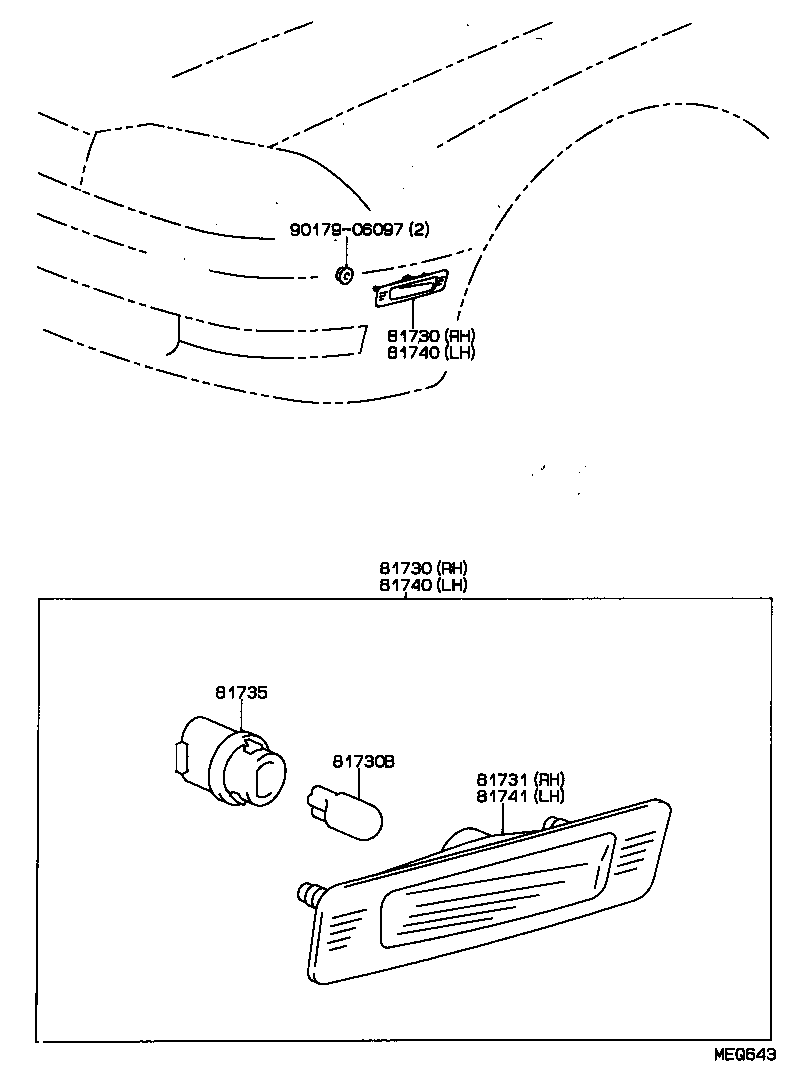

Click highlighted areas on diagram

diagram 81730 81730 81730B 81731 81735 81740 81740 81741 9017906097
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-32010

CV30,SV3#,VZV3#..HT

 1
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-32010

CV30,SV3#,VZV3#..HT

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

CV30,SV3#,VZV3#..HT

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-32010

CV30,SV3#,VZV3#..HT

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81735-12180

CV30,SV3#,VZV3#..HT

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-32010

CV30,SV3#,VZV3#..HT

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-32010

CV30,SV3#,VZV3#..HT

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-32010

CV30,SV3#,VZV3#..HT

 1
Common parts
90179-06097
