SV30-BTPEK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 4SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )3SFE,4SFE

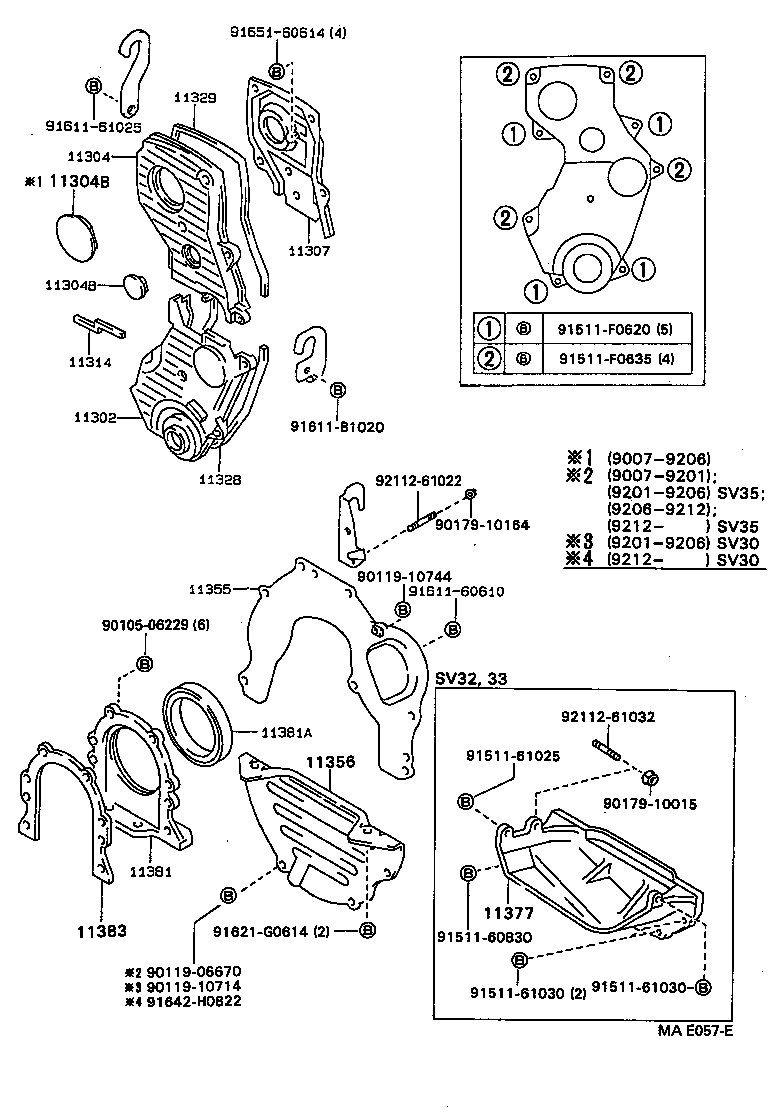

Click highlighted areas on diagram

diagram 11302 11304 11304B 11304B 11307 11314 11328 11329 11355 11356 11377 11381 11381A 11383 9010506229 9011906670 9011910714 9011910744 9017910015 9017910164 9151160830 9151161025 9151161030 9151161030 91511F0620 91511F0635 9161160610 9161161025 91611B1020 91621G0614 91642H0822 9165160614 9211261022 9211261032
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74011

3SFE,4SFE..SV3#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74010

4SFE..SV30

 1
11303-74030

3SFE,4SFE..SV3#

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

3SFE,4SFE..SV3#

外径=33

 1
90950-01489

4SFE..SV30

外径=33,OD=34

 1
90950-01497

4SFE..SV30

外径=76,OD=76

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

3SFE,4SFE..SV3#

外径=33

 1
90950-01489

4SFE..SV30

外径=33,OD=34

 1
90950-01497

4SFE..SV30

外径=76,OD=76

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74010

4SFE..SV30

 1
11304-74030

3SFE,4SFE..SV3#

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-63010

3SFE,4SFE..SV3#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74010

3SFE,4SFE..SV3#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74050

3SFE,4SFE..SV3#

 1
11329-74010

4SFE..SV30

 1
11355 - PLATE, REAR END
11355-74010

3S#,4SFE..SV30,32,33

 1
11356 - PLATE, REAR END, NO.2
11356-74030

3SFE..SV35;3SGE,4SFE..SV30,32,33

 1
11356-63031

3SFE..SV35;3SGE,4SFE..SV30,32,33

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3S#,4SFE..SV3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85003

3SFE,4SFE..SV3#

 1
90311-85006

3SFE,4SFE..SV3#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63011

3S#,4SFE..SV3#

 1
11383-74020

3S#,4SFE..SV3#

 1
11383-74021

3S#,4SFE..SV3#

 1
Common parts
90105-06229
90119-06670
90119-10714
90119-10744
90179-10015
90179-10164
91511-60830
91511-61025
91511-61030
91511-F0620
91511-F0635
91611-60610
91611-61025
91611-B1020
91621-G0614
91642-H0822
91651-60614
92112-61022
92112-61032
