SV30-BTMNK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1994
Engine
4SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007- )3S#,4SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

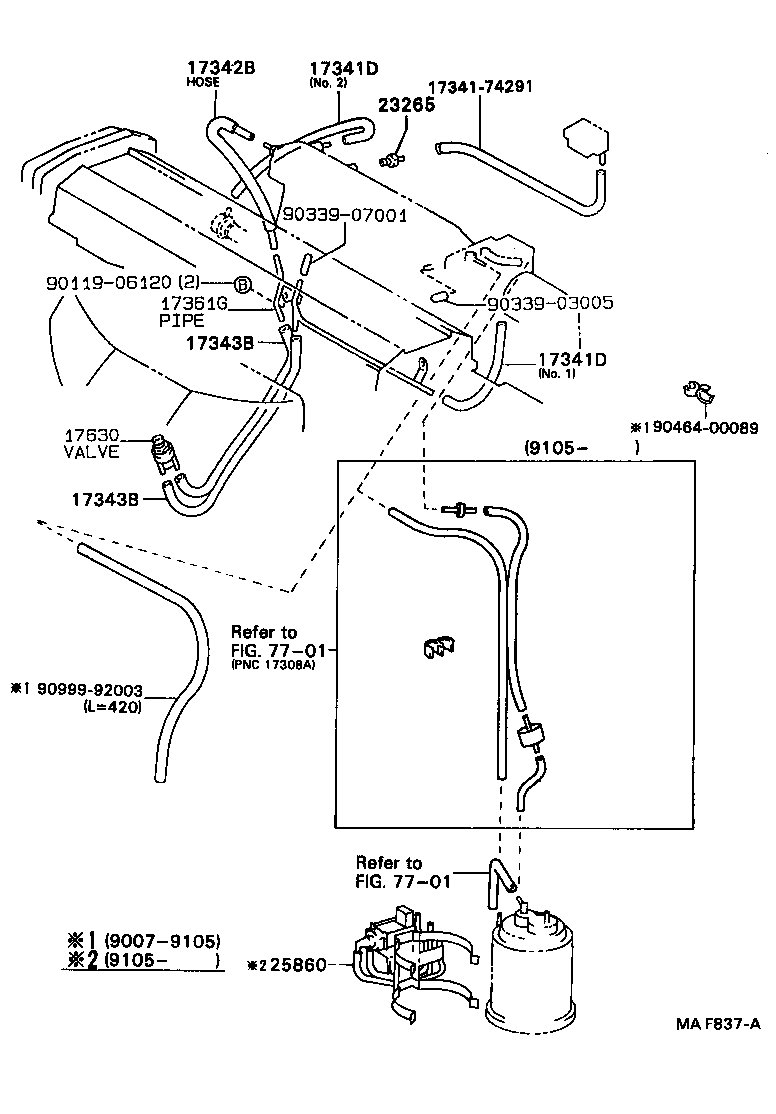

(9007-9206)4SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74040 |
3SFE,4SFE..SV3# NO.1 |
1 | ||
| 17341-74230 |
4SFE..SV30 |
1 | ||
| 17341-74340 |
4SFE..SV30 NO.1 |
1 | ||
| 17341-74340 |
3SFE,4SFE..SV3# |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74040 |
3SFE,4SFE..SV3# NO.1 |
1 | ||
| 17341-74230 |
4SFE..SV30 |
1 | ||
| 17341-74340 |
4SFE..SV30 NO.1 |
1 | ||
| 17341-74340 |
3SFE,4SFE..SV3# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74040 |
4SFE..SV30 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74100 |
4SFE..SV30 |
1 | ||
| 17343-74011 |
4SFE..SV30 |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74100 |
4SFE..SV30 |
1 | ||
| 17343-74011 |
4SFE..SV30 |
2 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74030 |
4SFE..SV30 |
1 | ||
| 17361-74100 |
4SFE..SV30 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
4SFE..SV30 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3SFE,4SFE..SV3# |
1 | ||
| 90917-11032 |
4SFE..SV30 |
1 | ||
| 90917-11022 |
3SFE,4SFE..SV30,32,33 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74060 |
3SFE,4SFE..SV3# |
1 | ||
| Common parts | ||||
| 17341-74291 | ||||
| 90119-06120 | ||||
| 90339-03005 | ||||
| 90339-07001 | ||||
| 90464-00089 | ||||
| 90999-92003 | ||||
| Linked diagrams | ||||
| 7701 | ||||

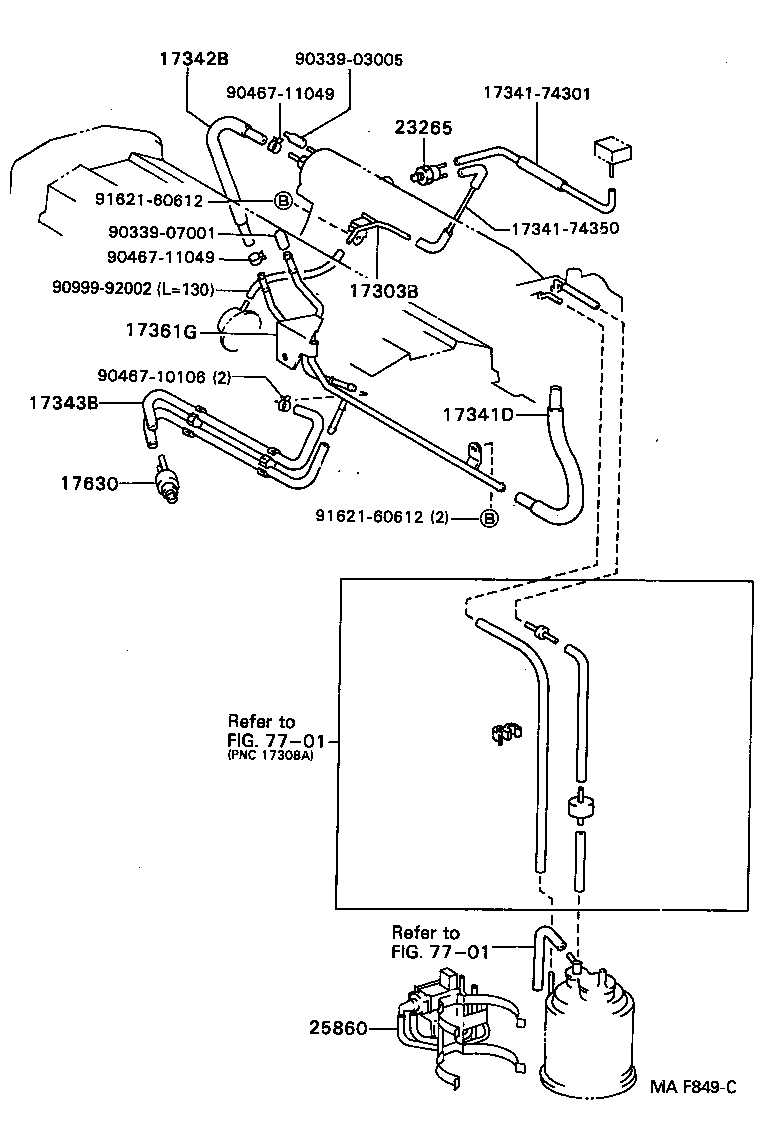

(9206- )4SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-74040 |
4SFE..SV30 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74040 |
3SFE,4SFE..SV3# NO.1 |
1 | ||
| 17341-74230 |
4SFE..SV30 |
1 | ||
| 17341-74340 |
4SFE..SV30 NO.1 |
1 | ||
| 17341-74340 |
3SFE,4SFE..SV3# |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74040 |
4SFE..SV30 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74100 |
4SFE..SV30 |
1 | ||
| 17343-74011 |
4SFE..SV30 |
2 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74030 |
4SFE..SV30 |
1 | ||
| 17361-74100 |
4SFE..SV30 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
4SFE..SV30 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3SFE,4SFE..SV3# |
1 | ||
| 90917-11032 |
4SFE..SV30 |
1 | ||
| 90917-11022 |
3SFE,4SFE..SV30,32,33 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-74060 |
3SFE,4SFE..SV3# |
1 | ||
| Common parts | ||||
| 17341-74301 | ||||
| 17341-74350 | ||||
| 90339-03005 | ||||
| 90339-07001 | ||||
| 90467-10106 | ||||
| 90467-11049 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 7701 | ||||
