SV30-BTMEK (1990)
Toyota Camry/Vista

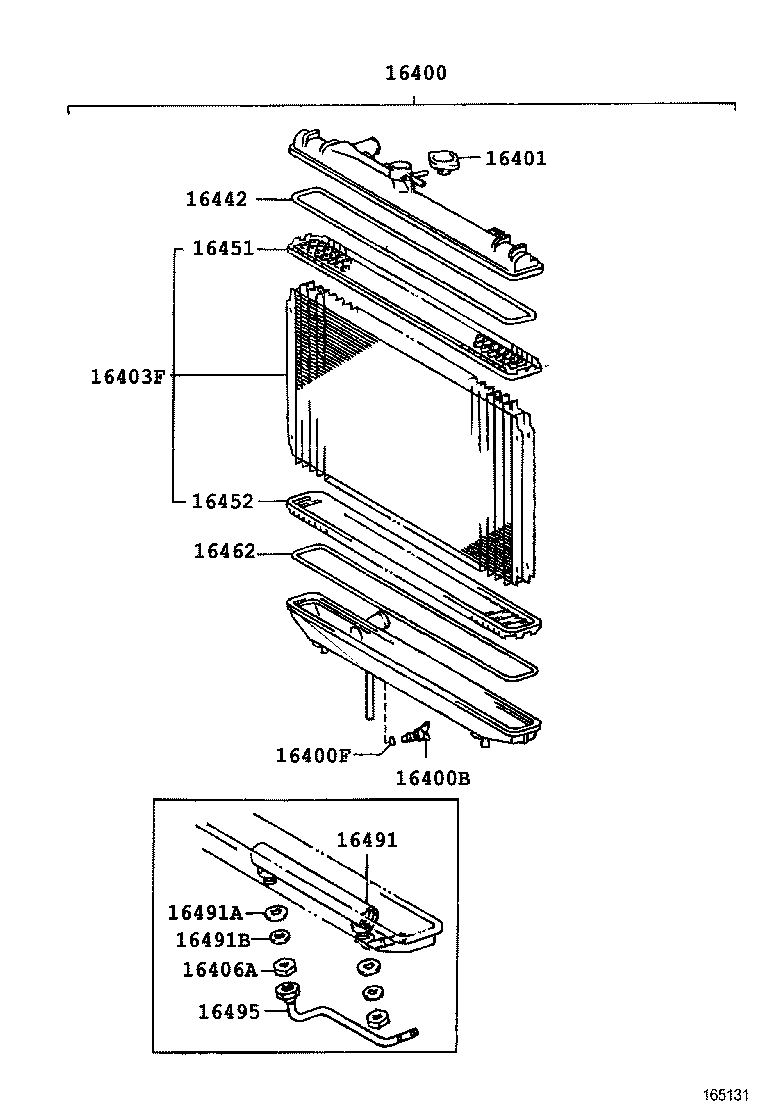

ILLUST NO. 2 OF 2(9007- )3S#,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-74700 |
4SFE..SV30..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3S#,4SFE..SV3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3S#,4SFE..SV3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3S#,4SFE..SV3# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74700 |
4SFE..SV30..5F |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74670 |
3SFE,4SFE..SV3#..5F |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74670 |
3SFE,4SFE..SV3#..5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74670 |
3SFE,4SFE..SV3#..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74670 |
3S#,4SFE..SV3# |
1 | ||

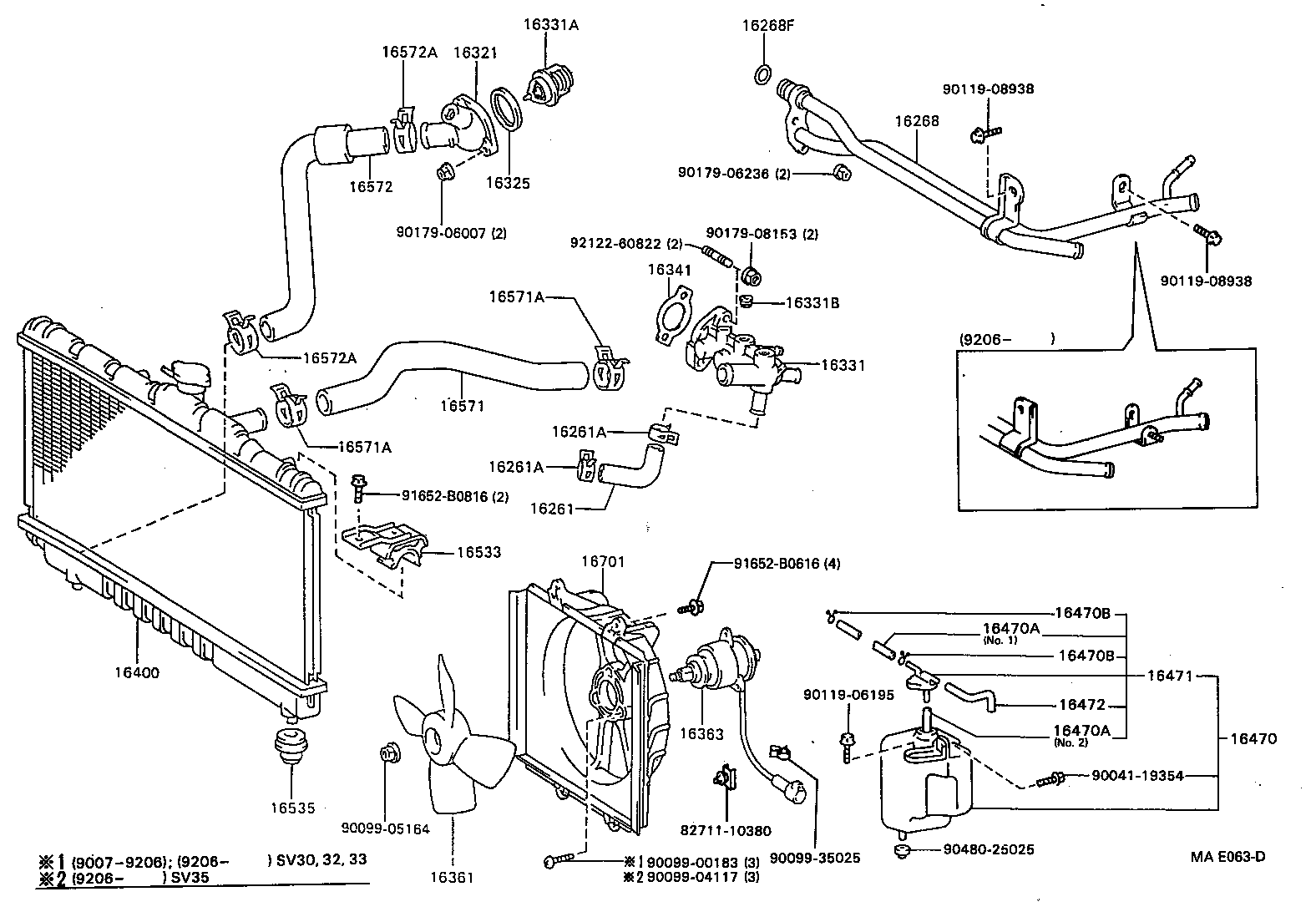

ILLUST NO. 1 OF 2(9007- )3SFE,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74010 |
3SFE,4SFE..SV3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#,4SFE..SV3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#,4SFE..SV3# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74010 |
3SFE,4SFE..SV3# |
1 | ||
| 16268-74152 |
3SFE,4SFE..SV3# |
1 | ||
| 16268-74151 |
3SFE,4SFE..SV3# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3S#,4SFE..SV3# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-74030 |
3SFE,4SFE..SV3# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3SFE,4SFE..SV3# |
1 | ||
| 16325-63010 |
3SFE,4SFE..SV3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-74170 |
3SFE,4SFE..SV3# |
1 | ||
| 16304-74110 |
3SFE,4SFE..SV3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3SFE,4SFE..SV3# *WAX 82−95 |
1 | ||
| 90916-03046 |
3SFE,4SFE..SV3# *WAX 82−95 |
1 | ||
| 90916-03060 |
3SFE,4SFE..SV3# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53009 |
4SFE..SV30..5F;3SFE..SV32,33,35 |
2 | ||
| 90345-53009 |
3SFE,4SFE..SV3# |
2 | ||
| 90345-53009 |
3SFE,4SFE..SV3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
3SFE,4SFE..SV3# |
1 | ||
| 16341-63011 |
3SFE,4SFE..SV3# |
1 | ||
| 16361 - FAN | ||||
| 16361-74050 |
3SFE,4SFE..SV30,32,33..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11010 |
3SFE,4SFE..SV30,32,33..5F |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74700 |
4SFE..SV30..5F |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74140 |
3S#,4SFE..SV3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,4SFE..SV3# 長さ=600,NO.1,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFE..SV3# 長さ=600,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,4SFE..SV3# 長さ=600,NO.1,NO.2 |
1 | ||
| 90445-12078 |
3S#,4SFE..SV3# 長さ=600,NO.1,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..SV3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,4SFE..SV3# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74160 |
3S#,4SFE..SV3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74140 |
3S#,4SFE..SV3# |
1 | ||
| 85338-74140 |
3SFE,4SFE..SV3# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74170 |
3SFE,4SFE..SV3#..5F |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74110 |
3S#,4SFE..SV3# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74160 |
3SFE..SV35;3SGE,4SFE..SV30,32,33 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3SFE,4SFE..SV3# |
2 | ||
| 90467-33003 |
3S#,4SFE..SV3# |
2 | ||
| 90467-34003 |
3SFE,4SFE..SV3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
3SFE,4SFE..SV3# |
2 | ||
| 90467-33003 |
3S#,4SFE..SV3# |
2 | ||
| 90467-34003 |
3SFE,4SFE..SV3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74220 |
3SFE,4SFE..SV3# |
1 | ||
| 16572-74150 |
3S#,4SFE..SV3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SFE,4SFE..SV30,35 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-33003 |
3SFE,4SFE..SV3# UPPER |
1 | ||
| 90467-33002 |
3SFE,4SFE..SV3# LOWER |
1 | ||
| 90467-33002 |
3SFE,4SFE..SV3# |
2 | ||
| 90467-33003 |
3SFE,4SFE..SV3# WATER INLET SIDE |
1 | ||
| 90467-34003 |
3SFE,4SFE..SV3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-33002 |
3SFE,4SFE..SV30,35 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-33003 |
3SFE,4SFE..SV3# UPPER |
1 | ||
| 90467-33002 |
3SFE,4SFE..SV3# LOWER |
1 | ||
| 90467-33002 |
3SFE,4SFE..SV3# |
2 | ||
| 90467-33003 |
3SFE,4SFE..SV3# WATER INLET SIDE |
1 | ||
| 90467-34003 |
3SFE,4SFE..SV3# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74350 |
3SFE,4SFE..SV30,32,33..5F |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90041-19354 | ||||
| 90099-00183 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90119-06195 | ||||
| 90119-08938 | ||||
| 90179-06007 | ||||
| 90179-06236 | ||||
| 90179-08153 | ||||
| 90480-25025 | ||||
| 91652-B0616 | ||||
| 91652-B0816 | ||||
| 92122-60822 | ||||
