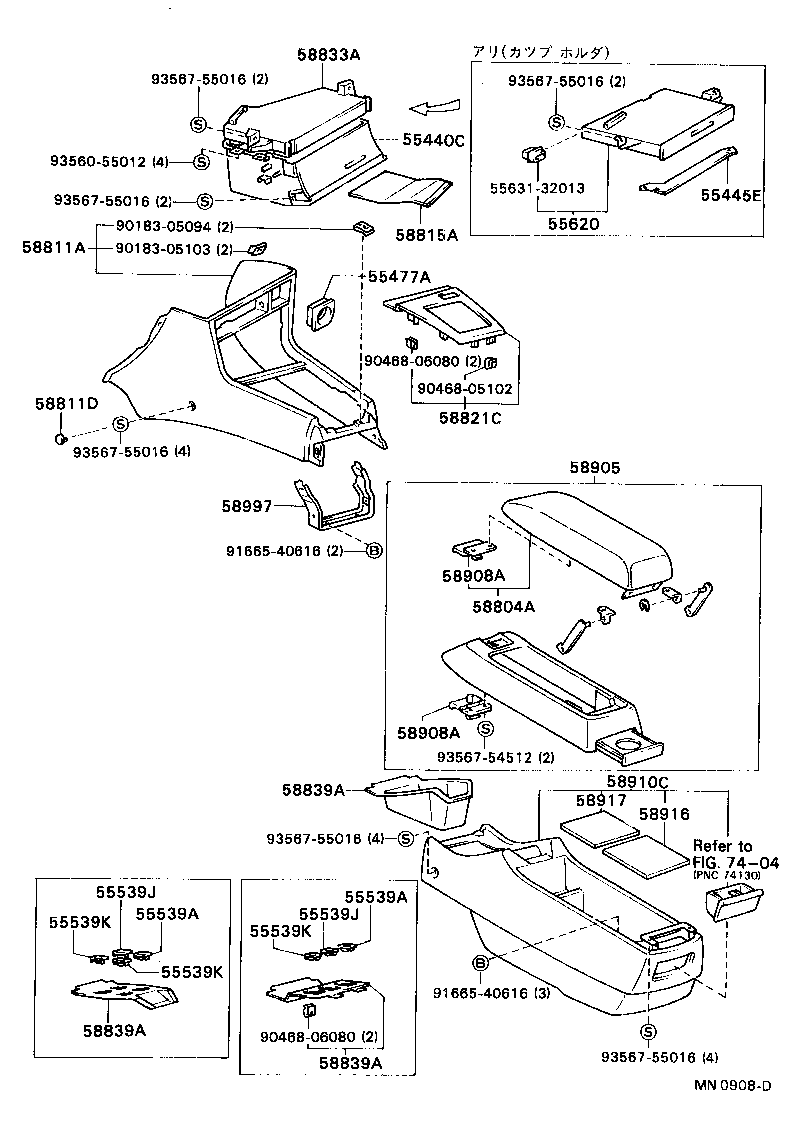

SV30-BEPMK (1990)
Toyota Camry/Vista
(9007- )CV30,SV30,32,33,VZV3#..4FC..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55440-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 55445E - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-3204003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 55477-3204002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-3203003 |
CV30,SV3#,VZV30,31 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203012 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3203012 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-3203003 |
CV30,SV3#,VZV30,31 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203012 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3203012 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV) TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV30,32,33,VZV30,31..4FC..(ETO,LUM,PRO,VE,VL,VR,XT,ZE,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV30,32,33,VZV30,31..4FC..(ETO,LUM,PRO,VE,VL,VR,XT,ZE,ZV) TAUPE,TRIM9# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV) TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,XT,ZE,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV30,32,33,VZV30,31..4FC..(ETO,LUM,PRO,VE,VL,VR,XT,ZE,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV30,32,33,VZV30,31..4FC..(ETO,LUM,PRO,VE,VL,VR,XT,ZE,ZV) TAUPE,TRIM9# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV3#;VZV3#..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV3#,VZV30,31 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV3#;VZV3#..5F TAUPE,TRIM9# |
1 | ||
| 55539-3204002 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV3#;VZV3#..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV3#,VZV30,31 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV3#;VZV3#..5F TAUPE,TRIM9# |
1 | ||
| 55539-3204002 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-3204002 |
CV30,SV3#,VZV30,31 TAUPE,TRIM9# |
1 | ||
| 55539-3204003 |
CV30,SV3#;VZV3#..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
CV30,SV3#,VZV30,31 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204003 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3204002 |
CV30,SV3#;VZV3#..5F TAUPE,TRIM9# |
1 | ||
| 55539-3204002 |
SV32,33..5F;SV32,33..SED..4FC;CV30,SV30,35,VZV30,31;SV32,33..HT..4FC..(GT,VE) TAUPE,TRIM9# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-3202002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 55618-3202003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3213002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9# |
1 | ||
| 58804-3213003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-3203003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 58810-3203002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90950-0170202 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
2 | ||
| 90950-0170203 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-3206003 |
CV30,SV30..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 58821-3206002 |
CV30,SV30..4FC TAUPE,TRIM9# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3206003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3206002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) TAUPE,TRIM9# |
1 | ||
| 58839-3205003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3205002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),TAUPE,TRIM9# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3206003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3206002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) TAUPE,TRIM9# |
1 | ||
| 58839-3205003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3205002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),TAUPE,TRIM9# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3206003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3206002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) TAUPE,TRIM9# |
1 | ||
| 58839-3205003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),MEDIUM GRAY,TRIM1# |
1 | ||
| 58839-3205002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) ｱﾘ(ｴｱ ﾌﾟﾕﾘﾌｱｲﾔ),TAUPE,TRIM9# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3217002 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) TAUPE,TRIM9# |
1 | ||
| 58905-3217003 |
CV30,SV30,32,33..4FC..(ETO,LUM,VE,VL,XT,ZV) MEDIUM GRAY,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) LOWER |
1 | ||
| 58908-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) UPPER |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) LOWER |
1 | ||
| 58908-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) UPPER |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-3202002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) TAUPE,TRIM9# |
1 | ||
| 58910-3202003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32120 |
CV30,SV3#,VZV3# |
1 | ||
| 58917 - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-32020 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90468-05102 | ||||
| 90468-06080 | ||||
| 91665-40616 | ||||
| 93560-55012 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
