SV30-BEPEK (1990)
Toyota Camry/Vista
ILLUST NO. 2 OF 3(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-32160 |
CV30,SV30 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-32160 |
CV30,SV30 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01667 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01667 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
CV30,SV3#,VZV3# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
CV30,SV3#,VZV3# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01668 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01668 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01669 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01669 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-32160 |
CV30,SV30 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-32160 |
CV30,SV30 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90179-06125 | ||||
| 91611-60612 | ||||
| 91656-40622 | ||||
| 91656-40822 | ||||
| 94180-40600 | ||||

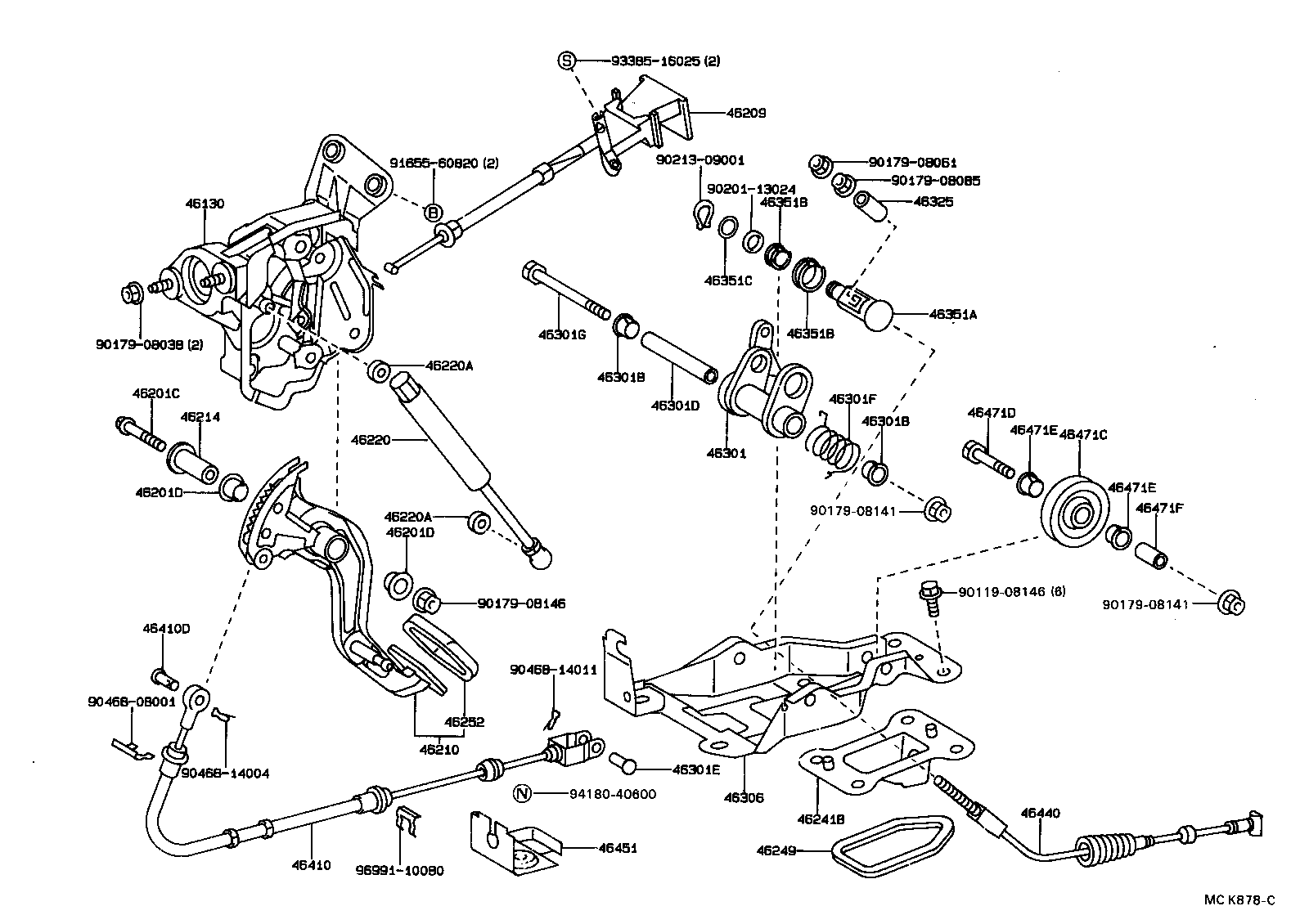

ILLUST NO. 1 OF 3(9007- )CV30,SV30,32,33,VZV3#..4FC..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 91611-60850 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-3203002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) TAUPE,TRIM9# |
1 | ||
| 46209-32030K0 |
CV30,SV30,32,33,VZV3#..4FC TAUPE,TRIM9# |
1 | ||
| 46209-3203003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) MIDIUM GRAY,TRIM1# |
1 | ||
| 46209-32030S4 |
CV30,SV30,32,33,VZV3#..4FC MI GRAY,TRIM1# |
1 | ||
| 46209-32030E0 |
CV30,SV30,32,33,VZV3#..4FC OAK,TRIM4# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-32210 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46214 - BOSS, PARKING BRAKE PEDAL | ||||
| 46214-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46241B - BOOT, INTERMEDIATE LEVER | ||||
| 46241-32040 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32020 |
CV30,SV30,32,33,VZV3#..4FC |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13011 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13011 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-08044 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 46442-32010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-14109 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 90508-18104 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-08111 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-32030 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46325 - SLEEVE, PARKING BRAKE CABLE | ||||
| 46325-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46351A - SHAFT, INTERMEDIATE LEVER | ||||
| 46351-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90386-20003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 内径=20,内径=20 |
1 | ||
| 90386-13013 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 内径=13,内径=13 |
1 | ||
| 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90386-20003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 内径=20,内径=20 |
1 | ||
| 90386-13013 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 内径=13,内径=13 |
1 | ||
| 46351C - SHIM(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90564-13002 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=0.3 |
1 | ||
| 90564-13007 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=1.5 |
1 | ||
| 90564-13006 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=1.2 |
1 | ||
| 90564-13005 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=0.9 |
1 | ||
| 90564-13008 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=1.8 |
1 | ||
| 90564-13003 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) 厚さ=0.6 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32120 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08062 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-32020 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-32060 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46471C - PULLEY, INTERMEDIATE LEVER | ||||
| 46471-32010 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46471D - BOLT(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90101-08112 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
2 | ||
| 46471F - COLLAR(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90387-08045 |
CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90179-08038 | ||||
| 90179-08061 | ||||
| 90179-08085 | ||||
| 90179-08141 | ||||
| 90179-08146 | ||||
| 90201-13024 | ||||
| 90213-09001 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 91655-60820 | ||||
| 93385-16025 | ||||
| 94180-40600 | ||||
| 96991-10080 | ||||
ILLUST NO. 3 OF 3(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-10030 | ||||
