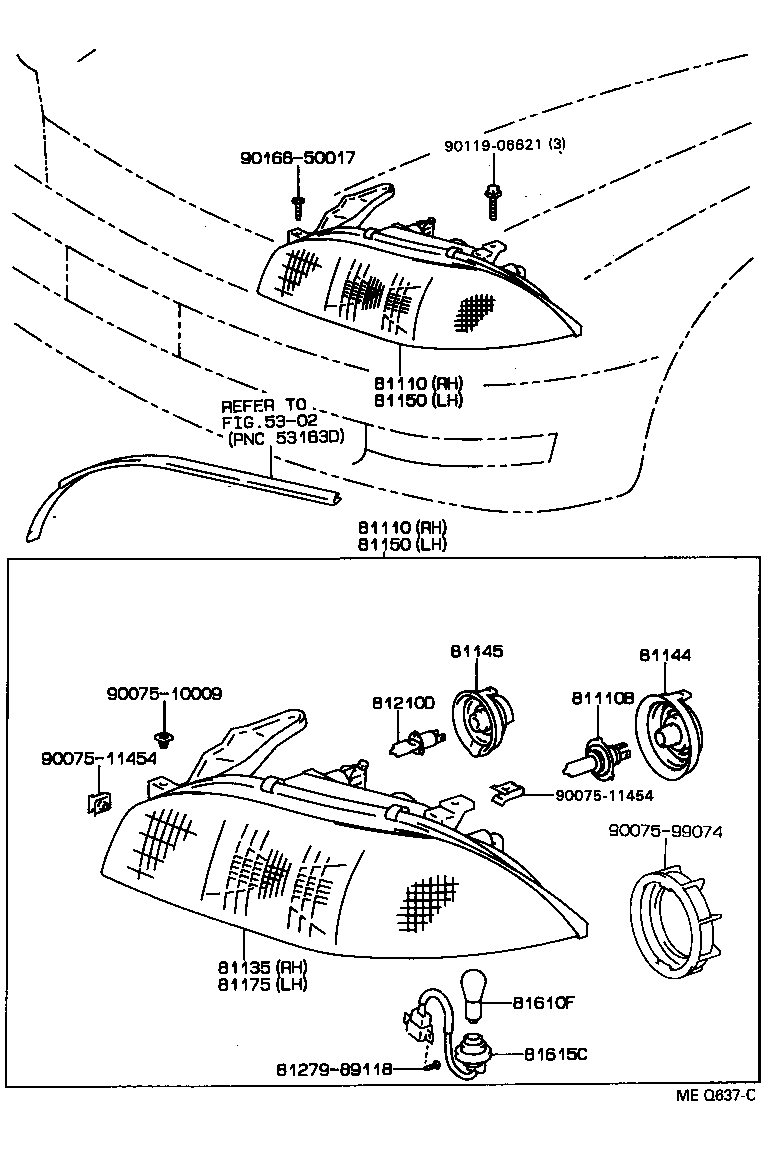

SV30-BEPDK (1990)
Toyota Camry/Vista
(9007-9206)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81120-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81120-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81120-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81120-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
VZV3#;CV30,SV3#..SED 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
CV30,SV3#,VZV3# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-32270 |
CV30,SV3#..SED |
1 | ||
| 81130-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81130-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99075 |
CV30,SV3#..SED |
1 | ||
| 90075-99016 |
CV30,SV3#..SED 右側 |
1 | ||
| 90075-99075 |
CV30,SV3#..SED |
2 | ||
| 81139-20730 |
CV30,SV3#..SED 左側 |
1 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99090 |
CV30,SV3#..SED |
2 | ||
| 90075-99008 |
CV30,SV3#..SED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81160-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81160-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81160-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81160-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-32270 |
CV30,SV3#..SED |
1 | ||
| 81170-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81170-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13027 |
CV30,SV3#..SED 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
CV30,SV30,35..ETO,VL,XT,ZV 12V 5W |
2 | ||
| 90981-12010 |
CV30,SV3#..SED..(ETO,VL,XT) 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 81125-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
2 | ||
| 81125-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
2 | ||
| Common parts | ||||
| 81279-89118 | ||||
| 90075-10009 | ||||
| 90075-11454 | ||||
| 90075-99074 | ||||
| 90119-06621 | ||||
| 90168-50017 | ||||
| Linked diagrams | ||||
| 5302 | ||||

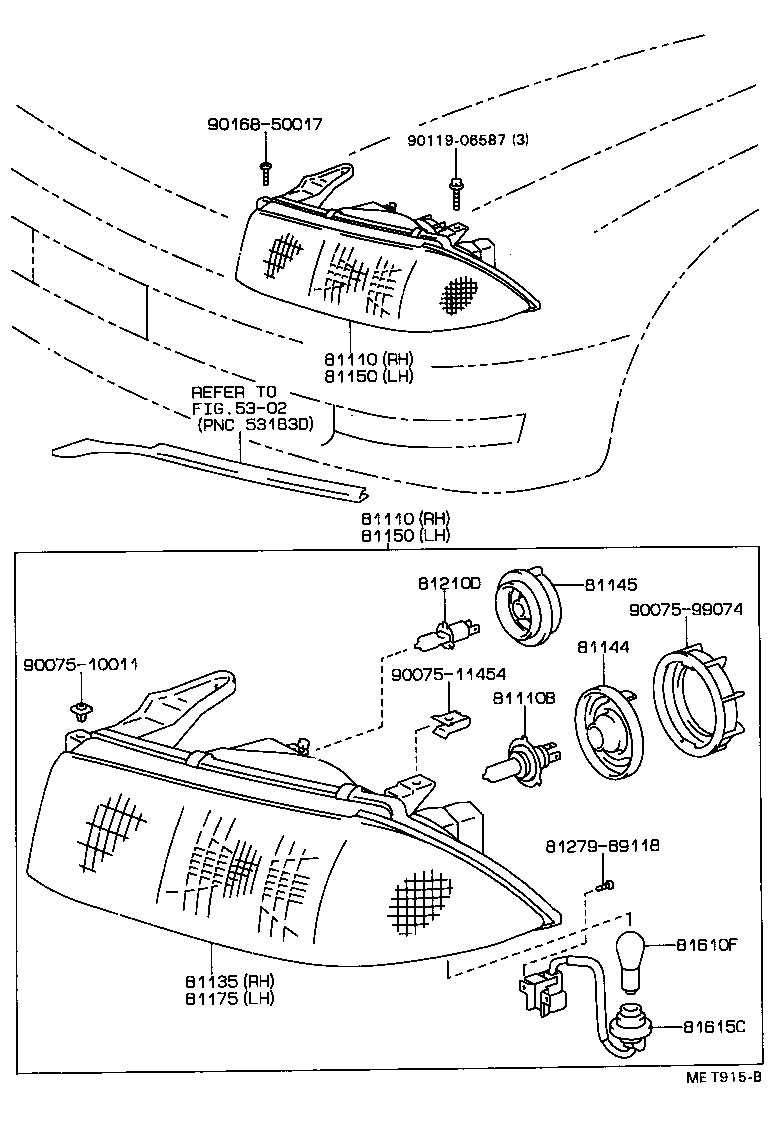

(9206-9406)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81120-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81120-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81120-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81120-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
VZV3#;CV30,SV3#..SED 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
CV30,SV3#,VZV3# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-32270 |
CV30,SV3#..SED |
1 | ||
| 81130-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81130-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99075 |
CV30,SV3#..SED |
1 | ||
| 90075-99016 |
CV30,SV3#..SED 右側 |
1 | ||
| 90075-99075 |
CV30,SV3#..SED |
2 | ||
| 81139-20730 |
CV30,SV3#..SED 左側 |
1 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99090 |
CV30,SV3#..SED |
2 | ||
| 90075-99008 |
CV30,SV3#..SED |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81160-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81160-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
1 | ||
| 81160-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81160-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-32270 |
CV30,SV3#..SED |
1 | ||
| 81170-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81170-32341 |
CV30,SV3#..SED..(ETO,VL,XT) |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13027 |
CV30,SV3#..SED 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
CV30,SV30,35..ETO,VL,XT,ZV 12V 5W |
2 | ||
| 90981-12010 |
CV30,SV3#..SED..(ETO,VL,XT) 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 81125-32280 |
CV30,SV30,35..SED..(ETO,VL,XT,ZV) |
2 | ||
| 81125-32340 |
CV30,SV3#..SED..(ETO,VL,XT) |
2 | ||
| Common parts | ||||
| 81279-89118 | ||||
| 90075-10011 | ||||
| 90075-11454 | ||||
| 90075-99074 | ||||
| 90119-06587 | ||||
| 90168-50017 | ||||
| Linked diagrams | ||||
| 5302 | ||||
