SV30-BEPDK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1994
Engine
4SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

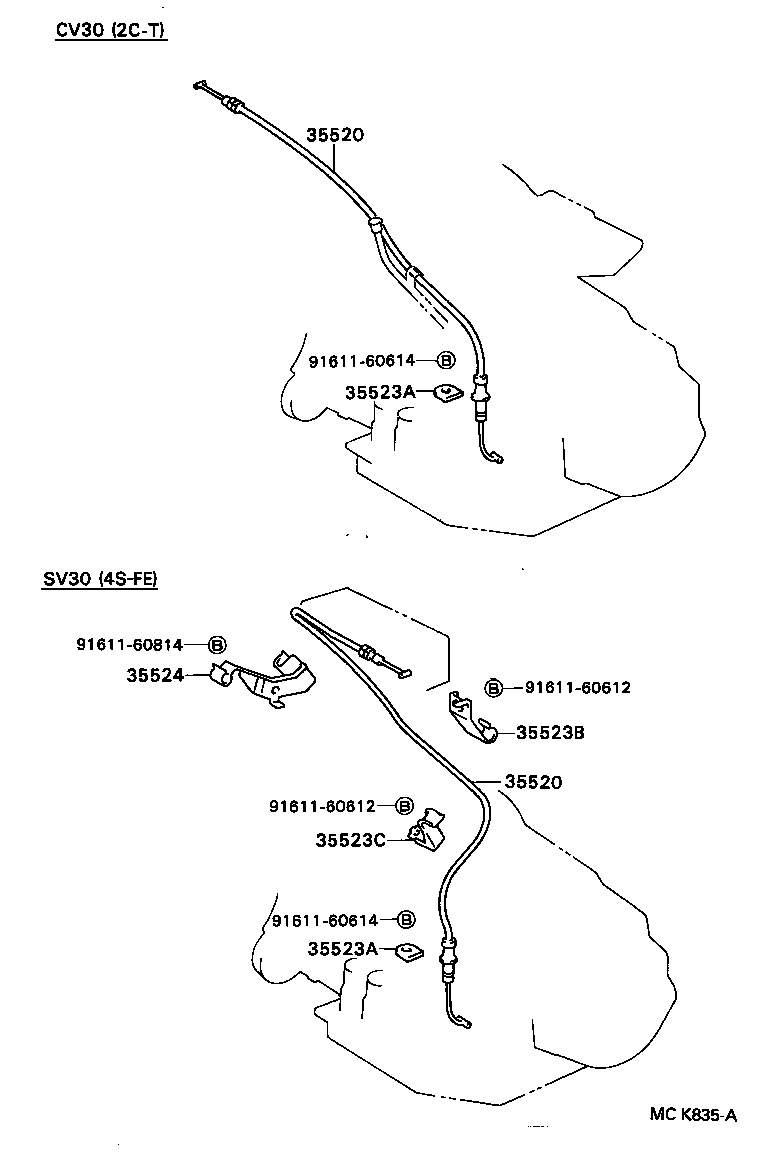

ILLUST NO. 2 OF 2(9007- )CV30,SV30
Click highlighted areas on diagram
A140L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-32030 |
SV30..4FC |
1 | ||
| 35520-32130 |
SV30..4FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-32030 |
SV30..4FC |
1 | ||
| 35520-32130 |
SV30..4FC |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 35523-32150 |
SV30..4FC |
1 | ||
| 35523-20300 |
SV30,32,33..4FC |
1 | ||
| 35523C - CLAMP, THROTTLE CABLE, NO.4 | ||||
| 35523-32160 |
SV30,32,33..4FC..(ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-32180 |
SV30..4FC |
1 | ||
| 35523-32170 |
SV30..4FC |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||

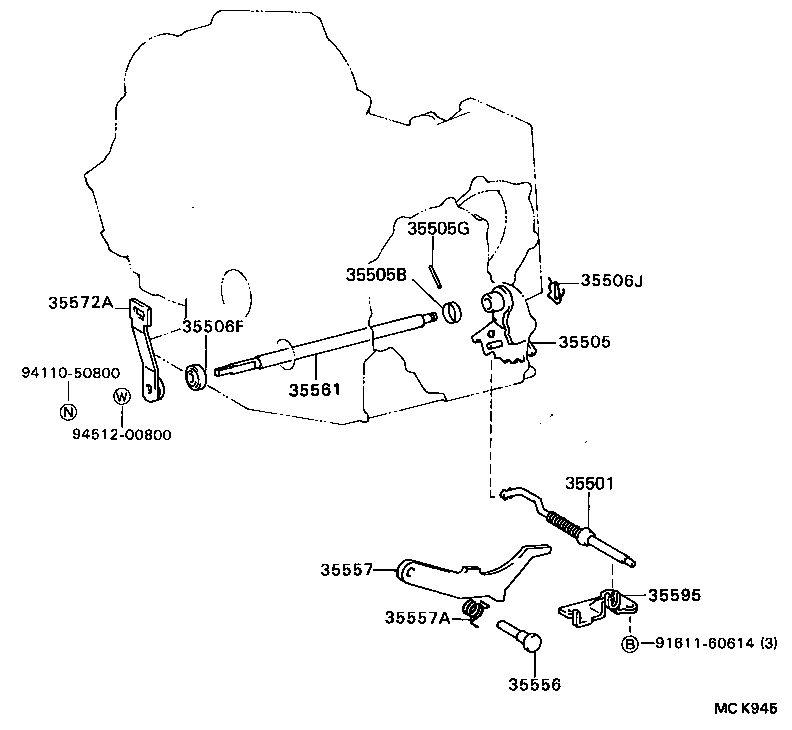

ILLUST NO. 1 OF 2(9007- )CV30,SV30,32,33
Click highlighted areas on diagram
A140E,A140L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-32030 |
CV30,SV30,32,33..4FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-32040 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32010 |
CV30,SV30,32,33..4FC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32020 |
CV30,SV30,32,33..4FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-26047 |
CV30,SV30,32,33..4FC |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-32010 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-32030 |
CV30,SV3#,VZV3#..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-32010 |
CV30,SV30,32,33..4FC |
1 | ||
| Common parts | ||||
| 91811-60614 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
