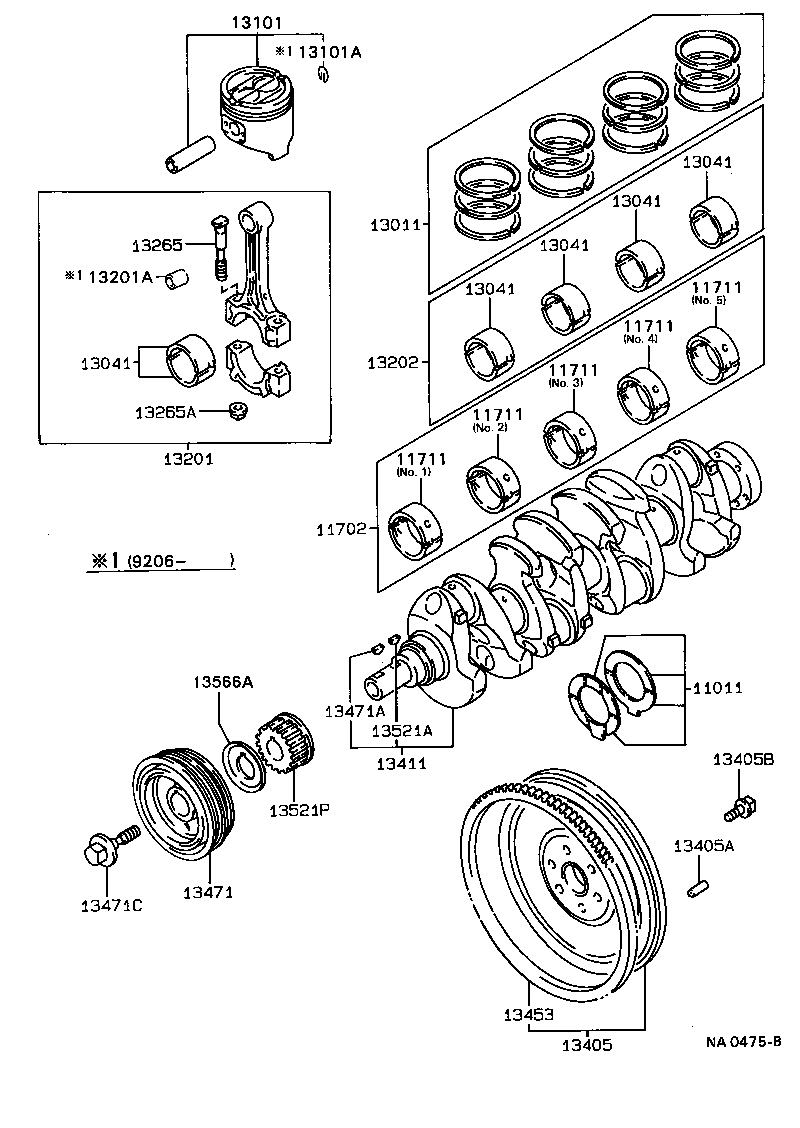

SV30-BEPDK (1990)
Toyota Camry/Vista
(9007- )4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-74020 |
3S#,4SFE..SV3# STD |
1 | ||
| 11011-25010 |
3S#,4SFE..SV3# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-63021 |
3SFE,4SFE..SV3# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3,JOURNAL |
1 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3,JOURNAL |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3,JOURNAL |
1 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3,JOURNAL |
1 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3,JOURNAL |
1 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5,JOURNAL |
4 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3 |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3 |
1 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5 |
4 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3 |
1 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5 |
4 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3 |
1 | ||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3 |
1 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5 |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5 |
4 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3,JOURNAL |
1 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3,JOURNAL |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3,JOURNAL |
1 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3,JOURNAL |
1 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3,JOURNAL |
1 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5,JOURNAL |
4 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3 |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3 |
1 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5 |
4 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3 |
1 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5 |
4 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3 |
1 | ||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3 |
1 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5 |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5 |
4 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3,JOURNAL |
1 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3,JOURNAL |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3,JOURNAL |
1 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3,JOURNAL |
1 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3,JOURNAL |
1 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5,JOURNAL |
4 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3 |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3 |
1 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5 |
4 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3 |
1 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5 |
4 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3 |
1 | ||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3 |
1 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5 |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5 |
4 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3,JOURNAL |
1 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3,JOURNAL |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3,JOURNAL |
1 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3,JOURNAL |
1 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3,JOURNAL |
1 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5,JOURNAL |
4 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3 |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3 |
1 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5 |
4 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3 |
1 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5 |
4 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3 |
1 | ||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3 |
1 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5 |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5 |
4 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3,JOURNAL |
1 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3,JOURNAL |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3,JOURNAL |
1 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3,JOURNAL |
1 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3,JOURNAL |
1 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5,JOURNAL |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5,JOURNAL |
4 | ||
| 11071-6302001 |
3SFE,4SFE..SV3# MARK 1,NO.3 |
1 | ||
| 11071-6302002 |
3SFE,4SFE..SV3# MARK 2,NO.3 |
1 | ||
| 11701-6302103 |
3SFE,4SFE..SV3# MARK 3,NO.1,2,4,5 |
4 | ||
| 11071-6302005 |
3SFE,4SFE..SV3# MARK 5,NO.3 |
1 | ||
| 11701-6302105 |
3SFE,4SFE..SV3# MARK 5,NO.1,2,4,5 |
4 | ||
| 11071-6302003 |
3SFE,4SFE..SV3# MARK 3,NO.3 |
1 | ||
| 11071-6302004 |
3SFE,4SFE..SV3# MARK 4,NO.3 |
1 | ||
| 11701-6302104 |
3SFE,4SFE..SV3# MARK 4,NO.1,2,4,5 |
4 | ||
| 11701-6302101 |
3SFE,4SFE..SV3# MARK 1,NO.1,2,4,5 |
4 | ||
| 11701-6302102 |
3SFE,4SFE..SV3# MARK 2,NO.1,2,4,5 |
4 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-74110 |
4SFE..SV30 O/S 0.50 |
1 | ||
| 13011-74110 |
4SFE..SV30 STD |
1 | ||
| 13011-74120 |
4SFE..SV30 STD |
1 | ||
| 13014-74120 |
4SFE..SV30 O/S 0.75 |
1 | ||
| 13011-74121 |
4SFE..SV30 STD |
1 | ||
| 13014-74110 |
4SFE..SV30 O/S 0.75 |
1 | ||
| 13013-74120 |
4SFE..SV30 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
4SFE..SV30 MARK 2 |
4 | ||
| 13041-6302003 |
4SFE..SV30 MARK 3 |
4 | ||
| 13041-6302001 |
4SFE..SV30 MARK 1 |
4 | ||
| 13041-7403001 |
3SFE,4SFE..SV3# MARK 1 |
4 | ||
| 13041-7403003 |
3SFE,4SFE..SV3# MARK 3 |
4 | ||
| 13041-7403002 |
3SFE,4SFE..SV3# MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
4SFE..SV30 MARK 2 |
4 | ||
| 13041-6302003 |
4SFE..SV30 MARK 3 |
4 | ||
| 13041-6302001 |
4SFE..SV30 MARK 1 |
4 | ||
| 13041-7403001 |
3SFE,4SFE..SV3# MARK 1 |
4 | ||
| 13041-7403003 |
3SFE,4SFE..SV3# MARK 3 |
4 | ||
| 13041-7403002 |
3SFE,4SFE..SV3# MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
4SFE..SV30 MARK 2 |
4 | ||
| 13041-6302003 |
4SFE..SV30 MARK 3 |
4 | ||
| 13041-6302001 |
4SFE..SV30 MARK 1 |
4 | ||
| 13041-7403001 |
3SFE,4SFE..SV3# MARK 1 |
4 | ||
| 13041-7403003 |
3SFE,4SFE..SV3# MARK 3 |
4 | ||
| 13041-7403002 |
3SFE,4SFE..SV3# MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
4SFE..SV30 MARK 2 |
4 | ||
| 13041-6302003 |
4SFE..SV30 MARK 3 |
4 | ||
| 13041-6302001 |
4SFE..SV30 MARK 1 |
4 | ||
| 13041-7403001 |
3SFE,4SFE..SV3# MARK 1 |
4 | ||
| 13041-7403003 |
3SFE,4SFE..SV3# MARK 3 |
4 | ||
| 13041-7403002 |
3SFE,4SFE..SV3# MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6302002 |
4SFE..SV30 MARK 2 |
4 | ||
| 13041-6302003 |
4SFE..SV30 MARK 3 |
4 | ||
| 13041-6302001 |
4SFE..SV30 MARK 1 |
4 | ||
| 13041-7403001 |
3SFE,4SFE..SV3# MARK 1 |
4 | ||
| 13041-7403003 |
3SFE,4SFE..SV3# MARK 3 |
4 | ||
| 13041-7403002 |
3SFE,4SFE..SV3# MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-7407103 |
4SFE..SV30 STD,MARK 3 |
4 | ||
| 13101-7407101 |
4SFE..SV30 STD,MARK 1 |
4 | ||
| 13104-74071 |
4SFE..SV30 O/S 0.75 |
4 | ||
| 13101-7407102 |
4SFE..SV30 STD,MARK 2 |
4 | ||
| 13103-74160 |
4SFE..SV30 O/S 0.50 |
4 | ||
| 13103-74071 |
4SFE..SV30 O/S 0.50 |
4 | ||
| 13104-74160 |
4SFE..SV30 O/S 0.75 |
4 | ||
| 13101-7416001 |
4SFE..SV30 STD,MARK 1 |
4 | ||
| 13101-7416002 |
4SFE..SV30 STD,MARK 2 |
4 | ||
| 13101-7416003 |
4SFE..SV30 STD,MARK 3 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
3SFE,4SFE..SV3# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79146 |
3SFE,4SFE..SV3# |
4 | ||
| 13201-69055 |
4SFE..SV30 |
1 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73112 |
3SFE,4SFE..SV3# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-63020 |
4SFE..SV30 U/S 0.25 |
1 | ||
| 13204-74030 |
3SFE,4SFE..SV3# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-63010 |
4SFE..SV30 |
8 | ||
| 13265-62030 |
3SFE,4SFE..SV3# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-09001 |
4SFE..SV30 |
8 | ||
| 90179-08118 |
3SFE,4SFE..SV3# |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-74904 |
4SFE..SV30 |
1 | ||
| 13411-74908 |
3SFE,4SFE..SV3# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-74040 |
4SFE..SV30 |
1 | ||
| 13408-74041 |
4SFE..SV30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20519 |
3S#,4SFE..SV3# |
1 | ||
| 90280-05005 |
3S#,4SFE..SV3# |
1 | ||
| 90280-05005 |
3S#,4SFE..SV3# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14015 |
4SFE..SV30 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
3S#,4SFE..SV3# |
1 | ||
| 95161-20519 |
3S#,4SFE..SV3# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-74020 |
3SFE,4SFE..SV3# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13567-74010 |
3SFE,4SFE..SV3# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
