SV30-BEMMK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
4SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9206)SED

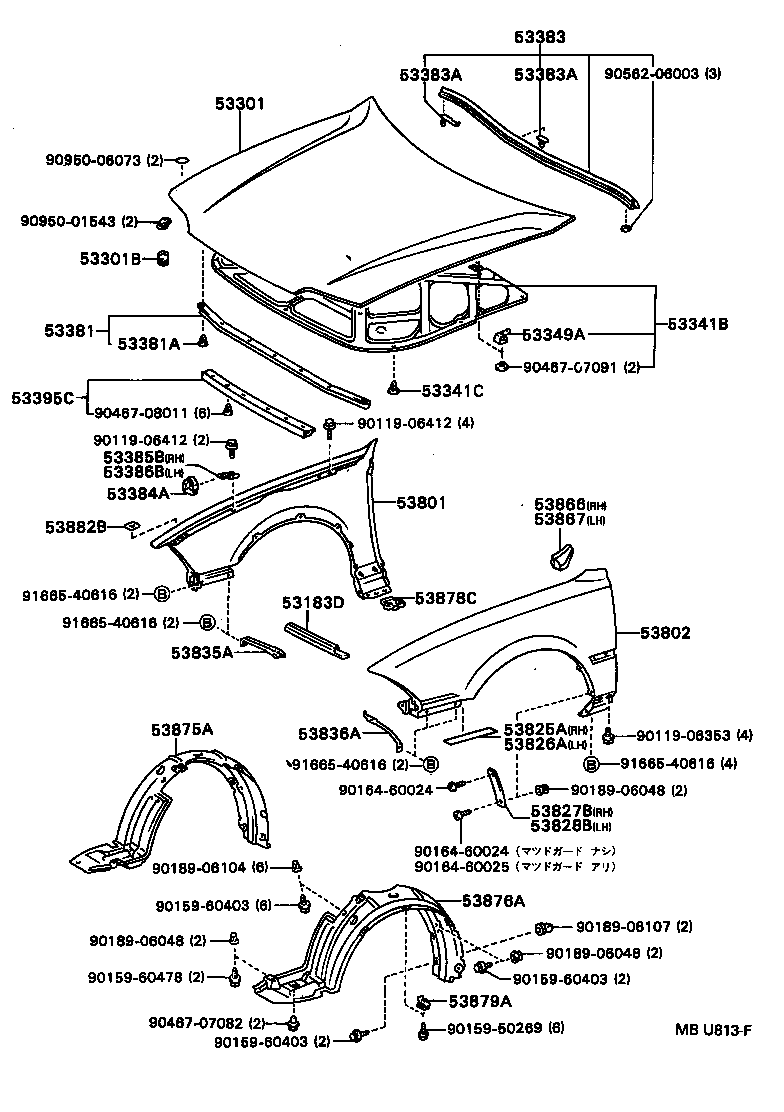

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-32070 |
CV30,SV3#..SED 右側 |
1 | ||
| 53184-32030 |
CV30,SV3#..SED 左側 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-32110 |
CV30,SV3#..SED |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15016 |
CV30,SV3#,VZV3# |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
CV30,SV3#,VZV3# |
6 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
CV30,SV3#,VZV3# ﾌﾞﾗｯｸ |
8 | ||
| 90467-08141 |
CV30,SV3#,VZV3# NATURAL |
2 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
CV30,SV3#,VZV3# ﾌﾞﾗｯｸ |
8 | ||
| 90467-08141 |
CV30,SV3#,VZV3# NATURAL |
2 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-32010 |
CV30,SV3#,VZV3# |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-20020 |
CV30,SV3#,VZV3# |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-20020 |
CV30,SV3#,VZV3# |
1 | ||
| 53395C - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-32020 |
CV30,SV3#..SED |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-32230 |
CV30,SV3#..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53801-32220 |
CV30,SV3#..SED |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-32210 |
CV30,SV3#..SED |
1 | ||
| 53802-32220 |
CV30,SV3#..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-32010 |
CV30,SV3#..SED |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-32010 |
CV30,SV3#..SED |
1 | ||
| 53827B - PROTECTOR, FRONT FENDER SIDE PANEL | ||||
| 53827-32010 |
CV30,SV3#..SED |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-32010 |
CV30,SV3#..SED |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53851-32010 |
CV30,SV3#..SED |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53852-32010 |
CV30,SV3#..SED |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-32040 |
CV30,SV3#..SED |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-32040 |
CV30,SV3#..SED |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-32030 |
CV30,SV3#..SED |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-32030 |
CV30,SV3#..SED |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-20040 |
CV30,SV3#,VZV3# |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14010 |
CV30,SV3#,VZV3# |
8 | ||
| Common parts | ||||
| 90119-06353 | ||||
| 90119-06412 | ||||
| 90159-50269 | ||||
| 90159-60403 | ||||
| 90159-60478 | ||||
| 90164-60024 | ||||
| 90164-60025 | ||||
| 90189-06048 | ||||
| 90189-06104 | ||||
| 90189-06107 | ||||
| 90467-07082 | ||||
| 90467-07091 | ||||
| 90467-08011 | ||||
| 90562-06003 | ||||
| 90950-01543 | ||||
| 90950-06073 | ||||
| 91665-40616 | ||||
