Toyota Camry/vista SV30 WIRING & CLAMP

SV30-BEMEK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994

Engine 4SFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(9007-9406)

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-32620	SV30,35..VR,VX,ZE,ZX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳﾌｴﾝﾀﾞﾐﾗ-)---ﾉｿﾞｸ(*66)	07/1990 - 10/1990	1
82111-32610	SV30,32,35..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX	07/1990 - 10/1990	1
82111-32611	SV30,32,35..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX	10/1990 - 06/1992	1
82111-32630	SV30,35..VR,VX,ZE,ZX ｱﾘ(*66)	07/1990 - 10/1990	1
82111-32621	SV30,35..VR,VX,ZE,ZX ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳﾌｴﾝﾀﾞﾐﾗ-)---ﾉｿﾞｸ(*66)	10/1990 - 06/1992	1
82111-32631	SV30,35..VR,VX,ZE,ZX ｱﾘ(*66)	10/1990 - 06/1992	1
82111-32770	SV30,32,35	06/1992 - 06/1994	1
82111-32790	SV30..VR,ZE ｱﾘ(ﾌﾛﾝﾄﾈﾂｾﾝｶﾞﾗｽ & ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(ﾌﾛﾝﾄﾈﾂｾﾝｶﾞﾗｽ & ﾃﾞﾝﾄﾞｳﾌｴﾝﾀﾞﾐﾗ-);ｱﾘ(66) OR ｱﾘ(66 & ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(*66 & ﾃﾞﾝﾄﾞｳﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(ﾈﾂｾﾝﾌﾛﾝﾄｶﾞﾗｽ)	06/1992 - 06/1993	1
82111-32780	SV30..VR,ZE ｱﾘ(ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳﾌｴﾝﾀﾞﾐﾗ-)	06/1992 - 06/1993	1
82111-32790	SV30,32..ETO,LUM,VL,VR,XT,ZE ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(66) OR ｱﾘ(FWD)	06/1993 - 06/1994	1
82111-32781	SV30..VR,ZE ｱﾘ(ﾘﾔﾜｲﾊﾟ)	06/1993 - 06/1994	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32140	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX	07/1990 - 06/1992	1
82241C - WIRE, RELAY
82241-32040	CV30,SV3#,VZV3# NO.1 JUNCTION BLOCK	07/1990 - 06/1992	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B730	CV30,SV3#,VZV3#	07/1990 - 01/1991	1
82817-32840	CV30,SV3#,VZV3#	01/1991 - 06/1992	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32730	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2B730	CV30,SV3#,VZV3#	07/1990 - 01/1991	1
82817-32840	CV30,SV3#,VZV3#	01/1991 - 06/1994	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-32760	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
Common parts
90119-06390
91651-40614
Linked diagrams
8401

ILLUST NO. 2 OF 8(9105-9406)SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

Click highlighted areas on diagram

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-3H460	SV30..5F	07/1990 - 05/1991	1
82121-3H461	SV30..5F	05/1991 - 06/1992	1
82121-3H570	SV30..5F	06/1992 - 06/1994	1
82123 - WIRE, ENGINE, NO.3
82123-32110	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX	07/1990 - 06/1992	1
82123-32111	SV3#	06/1992 - 06/1994	1
82241C - WIRE, RELAY
82241-32040	CV30,SV3#,VZV3# NO.1 JUNCTION BLOCK	07/1990 - 06/1992	1
82345 - DIODE
82345-32010	SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4	07/1990 - 06/1992	1
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-20040	SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2	07/1990 - 06/1992	2
82345-32010	SV3#..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL)	06/1992 - 06/1993	1
82345-32010	SV30..VR,ZE ｱﾘ(DS) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(*WDL)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345-20040	SV35..VX,ZX;SV32,33..4FC;SV32,33..5F..(VX,ZX);SV30,VZV3#..ETO,LUM,PRO,VR,ZE COWL,NO.2	06/1992 - 06/1994	2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30030	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82821A - COVER, CONNECTOR
82821-32110	CV30,SV3#,VZV3# YAZAKI	07/1990 - 06/1994	1
82823A - CAP, TERMINAL, NO.2
82823-50020	CV30,SV3#,VZV3#	07/1990 - 06/1994	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	CV30,SV3#	07/1990 - 06/1992	1
Common parts
82715-32040
90105-08096
90105-10122
90119-06120
90119-06390

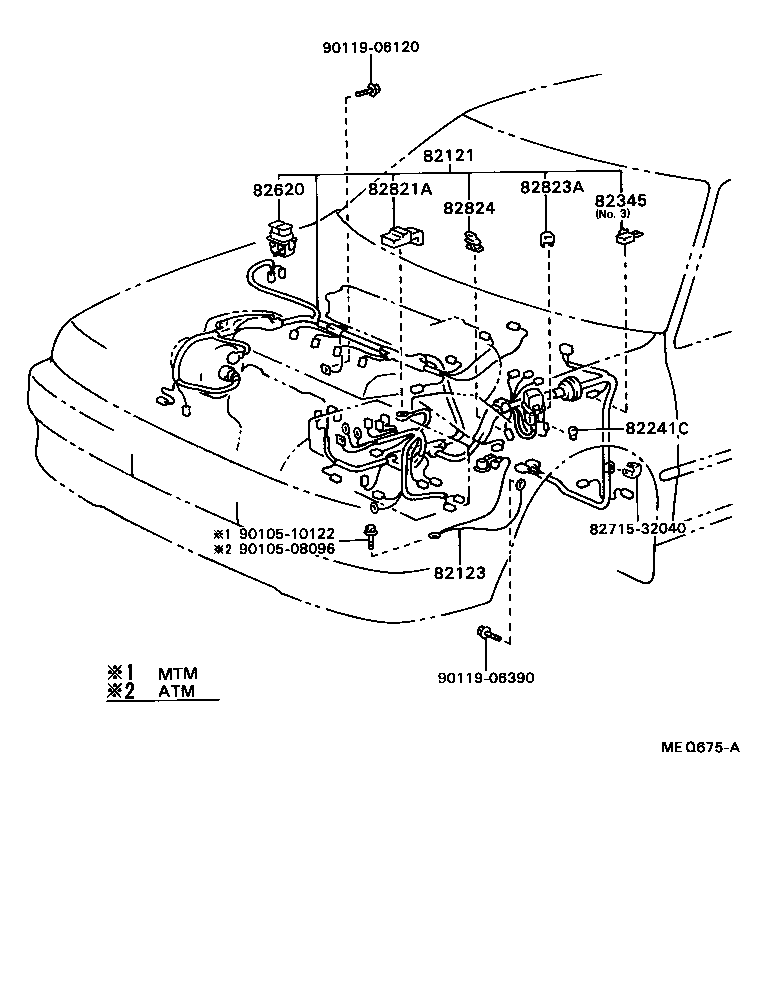

ILLUST NO. 3 OF 8(9007-9406)

Click highlighted areas on diagram

ENGINE WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1A150
82711-1A300
82711-22270
82711-24420
82711-32780
82711-82650
82715-20010
82715-20110
82715-32060
82715-32070
82715-32080
82715-32090
82715-32100
82715-32120
82715-32170
82715-33060
83715-32012
90119-06120
90119-06423
90159-60125
90461-08066
91511-60610
91621-40610

ILLUST NO. 4 OF 8(9007-9406)

Click highlighted areas on diagram

COWL,INSTRUMENT & CONSOLE WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-3P150	SV30..VR,ZE ｱﾘ(*66) OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	07/1990 - 06/1992	1
82131-3P140	SV30..VR,ZE	07/1990 - 06/1992	1
82131-3P450	SV30..VR,ZE ｱﾘ(*66) OR ｱﾘ(ﾌﾛﾝﾄﾈﾂｾﾝｶﾞﾗｽ)	06/1992 - 06/1993	1
82131-3P440	SV30..VR,ZE	06/1992 - 06/1993	1
82131-3P450	SV30..VR,ZE ｱﾘ(RW) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(66) OR ｱﾘ(FWD)	06/1993 - 07/1993	1
82131-3P451	SV30..VR,ZE ｱﾘ(RW) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(66) OR ｱﾘ(FWD)	07/1993 - 06/1994	1
82131-3P441	SV30..VR,ZE	06/1993 - 06/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-32570	CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	07/1990 - 05/1991	1
82141-32590	SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ)	07/1990 - 05/1991	1
82141-32550	CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX)	07/1990 - 05/1991	1
82141-32571	CV30,SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1991 - 06/1992	1
82141-32551	CV30,SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX)	05/1991 - 06/1992	1
82141-32591	SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ)	05/1991 - 06/1992	1
82141-32680	CV30,SV3#..5F..(VR,VX,ZE,ZX)	06/1992 - 06/1993	1
82141-32700	CV30,SV3#..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1992 - 06/1993	1
82141-32700	CV30,SV30,35..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL)	06/1993 - 07/1993	1
82141-32760	SV3#..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ)	06/1992 - 06/1993	1
82141-32760	SV30,35..5F..(VR,VX,ZE,ZX) ｱﾘ(DS) OR ｱﾘ(DS & ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(DS & 88) OR ｱﾘ(88 & WDL)	06/1993 - 06/1994	1
82141-32681	CV30,SV30,32,35..5F..(VR,VX,ZE,ZX)	06/1993 - 06/1994	1
82141-32701	CV30,SV30,35..5F..(VR,VX,ZE,ZX) ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(WDL)	07/1993 - 06/1994	1
82166 - WIRE, CONSOLE BOX
82166-32071	CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX	06/1992 - 12/1992	1
82166-32060	CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(*AF ﾂｷ 1DIN ﾗｼﾞｵ)	08/1990 - 06/1992	1
82166-32060	CV30,SV30..VR,ZE ｱﾘ(*AF ﾂｷ 1DIN ﾗｼﾞｵ)	07/1990 - 08/1990	1
82166-32070	CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(*AF,CD ﾌﾟﾚ-ﾔﾂｷ 2DIN ﾗｼﾞｵ)	07/1990 - 06/1992	1
82166-32071	SV30..VR,ZE	06/1992 - 06/1994	1
82345 - DIODE
82345-32010	SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4	07/1990 - 06/1992	1
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-20040	SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2	07/1990 - 06/1992	2
82345-32010	SV3#..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL)	06/1992 - 06/1993	1
82345-32010	SV30..VR,ZE ｱﾘ(DS) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(*WDL)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345-20040	SV35..VX,ZX;SV32,33..4FC;SV32,33..5F..(VX,ZX);SV30,VZV3#..ETO,LUM,PRO,VR,ZE COWL,NO.2	06/1992 - 06/1994	2
82345 - DIODE
82345-32010	SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4	07/1990 - 06/1992	1
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-20040	SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2	07/1990 - 06/1992	2
82345-32010	SV3#..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL)	06/1992 - 06/1993	1
82345-32010	SV30..VR,ZE ｱﾘ(DS) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(*WDL)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345-20040	SV35..VX,ZX;SV32,33..4FC;SV32,33..5F..(VX,ZX);SV30,VZV3#..ETO,LUM,PRO,VR,ZE COWL,NO.2	06/1992 - 06/1994	2
82345 - DIODE
82345-32010	SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4	07/1990 - 06/1992	1
82345-12030	CV30,SV3#,VZV3# COWL,NO.1	07/1990 - 06/1992	1
82345-20040	SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2	07/1990 - 06/1992	2
82345-32010	SV3#..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙｽﾋﾟ-ﾄﾞﾒ-ﾀ) OR ｱﾘ(*WDL)	06/1992 - 06/1993	1
82345-32010	SV30..VR,ZE ｱﾘ(DS) OR ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-) OR ｱﾘ(88) OR ｱﾘ(*WDL)	06/1993 - 06/1994	1
82345-12030	SV3#;CV30,VZV3#..PRO,VX,ZX COWL,NO.1	06/1992 - 06/1994	1
82345-20040	SV35..VX,ZX;SV32,33..4FC;SV32,33..5F..(VX,ZX);SV30,VZV3#..ETO,LUM,PRO,VR,ZE COWL,NO.2	06/1992 - 06/1994	2
Common parts
90119-06390
90179-06032
91651-40620
93567-55016
Linked diagrams
8401
8601

ILLUST NO. 5 OF 8(9007-9406)

Click highlighted areas on diagram

DOOR & FLOOR WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-32790	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	07/1990 - 08/1990	1
82151-32800	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	07/1990 - 08/1990	1
82151-32760	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	08/1990 - 03/1991	1
82151-32800	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1990 - 03/1991	1
82151-32770	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	07/1990 - 08/1990	1
82151-32770	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	08/1990 - 03/1991	1
82151-32760	CV30,SV30..SED..(VR,ZE)	07/1990 - 08/1990	1
82151-32790	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1990 - 03/1991	1
82151-32761	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	03/1991 - 06/1992	1
82151-32771	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	03/1991 - 06/1992	1
82151-32791	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	03/1991 - 06/1992	1
82151-32801	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	03/1991 - 06/1992	1
82151-32762	CV30,SV3#..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82151-32792	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	06/1992 - 06/1994	1
82151-32772	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ---ﾌﾛﾝﾄﾄﾞｱ)	06/1992 - 06/1994	1
82151-32802	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(CDﾂｷﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾐﾗ-)	06/1992 - 06/1994	1
82152 - WIRE, FRONT DOOR, LH
82152-32680	CV30,SV30..SED..(VR,ZE)	07/1990 - 08/1990	1
82152-32710	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	07/1990 - 08/1990	1
82152-32690	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	07/1990 - 08/1990	1
82152-32680	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	08/1990 - 03/1991	1
82152-32720	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1990 - 03/1991	1
82152-32720	CV30,SV30..SED..(VR,ZE) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	07/1990 - 08/1990	1
82152-32691	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	03/1991 - 06/1992	1
82152-32690	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ)	08/1990 - 03/1991	1
82152-32710	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1990 - 03/1991	1
82152-32681	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	03/1991 - 06/1992	1
82152-32711	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	03/1991 - 06/1992	1
82152-32721	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ --ﾌﾛﾝﾄﾄﾞｱ & ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	03/1991 - 06/1992	1
82152-32850	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	06/1992 - 06/1994	1
82152-32840	CV30,SV3#..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82152-32860	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	06/1992 - 06/1994	1
82152-32870	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ & ｳﾃｷｼﾞﾖｷﾖﾐﾗ-)	06/1992 - 06/1994	1
82153 - WIRE, REAR DOOR, NO.1
82153-32190	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)	05/1991 - 06/1992	1
82153-32190	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)	07/1990 - 05/1991	1
82153-32191	CV30,SV3#..SED	06/1992 - 06/1994	1
82154 - WIRE, REAR DOOR, NO.2
82154-32140	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX)	05/1991 - 06/1992	1
82154-32140	CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX)	07/1990 - 05/1991	1
82154-32141	CV30,SV3#..SED	06/1992 - 06/1994	1
82171 - WIRE, ROOF, NO.1
82171-32480	CV30,SV3#..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82171-32490	CV30,SV3#..SED..(GT,LUM,VE,VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	07/1990 - 06/1992	1
82171-32471	CV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)	06/1992 - 06/1994	1
82171-32491	CV30,SV3#..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/1992 - 06/1994	1
Common parts
82711-12770
90119-06390
90950-01060
90950-01275

ILLUST NO. 6 OF 8(9007-9406)

Click highlighted areas on diagram

FLOOR & REAR WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-3H400	CV30,SV30,32,33..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82161-3H410	SV30..SED..(VR,ZE) ｱﾘ(*66) OR ｱﾘ(ﾘﾔｽﾋﾟ-ｶ--ﾎﾞﾂｸｽﾀｲﾌﾟﾂｷ)	07/1990 - 06/1992	1
82161-3H670	CV30,SV30..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ) OR ｱﾘ(*66)	06/1992 - 02/1994	1
82161-3H660	CV30,SV30,32,33..SED..(VR,VX,ZE,ZX)	06/1992 - 02/1994	1
82161-3H661	CV30,SV30,32,33..SED..(VR,VX,ZE,ZX)	02/1994 - 06/1994	1
82161-3H671	CV30,SV30..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ) OR ｱﾘ(*66)	02/1994 - 06/1994	1
82162 - WIRE, FLOOR, NO.2
82162-32580	CV30,SV30,32,35..SED..(GT,VR,VX,ZE,ZX)	07/1990 - 06/1992	1
82162-32590	CV30,SV30,32,35..SED..(GT,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	07/1990 - 06/1992	1
82162-32780	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX)	06/1992 - 06/1993	1
82162-32790	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1992 - 06/1993	1
82162-32790	CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	06/1993 - 06/1994	1
82162-32781	CV30,SV30,32,35..SED..(VR,VX,ZE,ZX)	06/1993 - 06/1994	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-32390	CV30,SV3#..SED..(VR,VX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1992	1
82181-32380	CV30,SV3#..VIS..SED	07/1990 - 06/1992	1
82181-32430	CV30,SV3#..VIS..SED	06/1992 - 06/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-32120	CV30,SV3#..SED..(VR,VX)	07/1990 - 06/1992	1
82182-32150	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	06/1992 - 06/1994	1
82182-32140	CV30,SV3#..SED	06/1992 - 06/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-32120	CV30,SV3#..SED..(VR,VX)	07/1990 - 06/1992	1
82182-32150	SV32,33..SED..VX;CV30,SV30,35..SED..(VR,VX,ZE,ZX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	06/1992 - 06/1994	1
82182-32140	CV30,SV3#..SED	06/1992 - 06/1994	1
82412 - WIRE, FUEL GAGE
82412-32020	CV30,SV30,32,33..SED..(GT,VL,VR,VX,XT,ZE,ZV,ZX) FUEL PUMP	07/1990 - 06/1992	1
82412-32020	CV30,SV30,32,33,VZV3#	06/1992 - 02/1994	1
82412 - WIRE, FUEL GAGE
82412-32020	CV30,SV30,32,33..SED..(GT,VL,VR,VX,XT,ZE,ZV,ZX) FUEL PUMP	07/1990 - 06/1992	1
82412-32020	CV30,SV30,32,33,VZV3#	06/1992 - 02/1994	1
Common parts
82711-14110
82711-2A420
82715-32150
90119-06230
90119-06356
90119-06390

ILLUST NO. 7 OF 8(9007- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-32010	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-32020	CV30,SV3#,VZV3# CLEARANCE	07/1990 - 06/1992	1
82982-22050	CV30,SV3#,VZV3# SIDE TURN	07/1990 - 06/1992	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-32020	CV30,SV3#,VZV3# CLEARANCE	07/1990 - 06/1992	1
82982-22050	CV30,SV3#,VZV3# SIDE TURN	07/1990 - 06/1992	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-20020	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
82984 - WIRE, HORN REPAIR
82984-20010	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
82987 - WIRE, FOG LAMP REPAIR
82987-20040	CV30,SV3#	07/1990 - 06/1992	1
82987 - WIRE, FOG LAMP REPAIR
82987-20040	CV30,SV3#	07/1990 - 06/1992	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20080	CV30,SV3#,VZV3#	07/1990 - 06/1992	1
Common parts
82981-32010
82982-22050
82982-32020
82983-20020
82984-20010
82987-20040
82987-32010
82991-20080

ILLUST NO. 8 OF 8(9007-9406)SV3#

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
82001 - CABLE, BOND, NO.1
90980-07264	SV3# TRANSMISSION	07/1990 - 06/1992	1
90980-07287	SV3# SUSPENSION TOWER	07/1990 - 06/1994	1
90980-07280	SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ENGINE HANGER	07/1990 - 06/1994	1
Common parts
82711-24420
90119-06390
91611-60812

ILLUST NO. 7 OF 8(9206-9406)

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty	Price
Common parts
82998-12060
82998-12440
90980-10481
90980-10619
90980-10887
90980-11019
90980-11149
90980-11245

SV30-BEMEK (1990)

ILLUST NO. 1 OF 8(9007-9406)

ILLUST NO. 2 OF 8(9105-9406)SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

ILLUST NO. 3 OF 8(9007-9406)

ILLUST NO. 4 OF 8(9007-9406)

ILLUST NO. 5 OF 8(9007-9406)

ILLUST NO. 6 OF 8(9007-9406)

ILLUST NO. 7 OF 8(9007- )

ILLUST NO. 8 OF 8(9007-9406)SV3#

ILLUST NO. 7 OF 8(9206-9406)

Part Price Details
