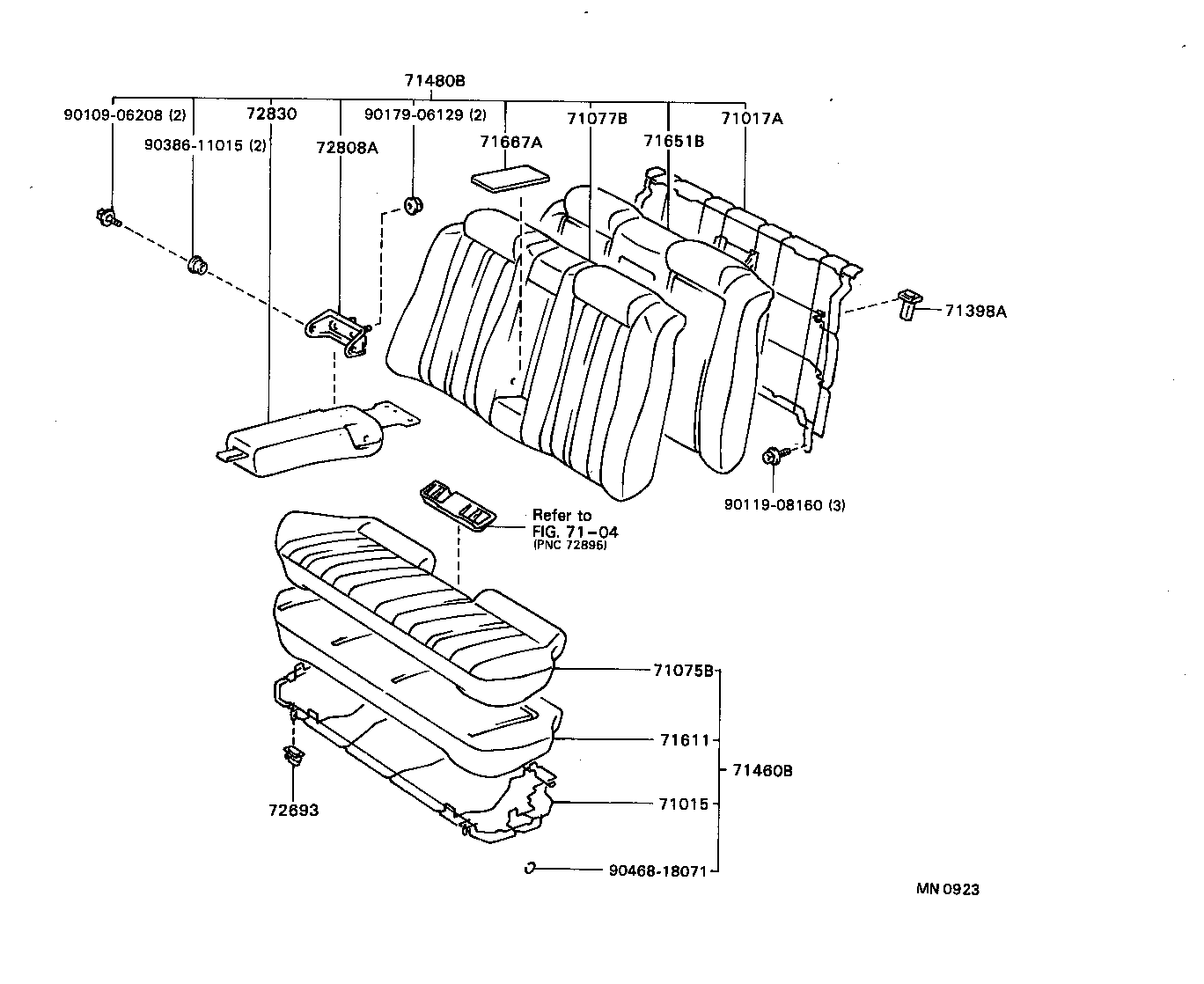

SV30-AEPMK (1990)
Toyota Camry/Vista
(9007- )SV30,32,33..HT..ETO ; (9007- )CV30,SV35..ETO,LUM,ZV ; (9007- )SV30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-32090 |
CV30,SV3#,VZV3# |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-32140 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3232002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 71065-3232003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-32490B0 |
CV30,SV3#..SED..(ETO,LUM) MI.GRAY,TRIM1# |
1 | ||
| 71065-32490E0 |
CV30,SV3#..SED..(ETO,LUM) OAK,TRIM4# |
1 | ||
| 71065-32490K0 |
CV30,SV3#..SED..(ETO,LUM) TAUPE,TRIM9# |
1 | ||
| 71065-32500E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71065-32500B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3H20003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3H20002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 71077-3H360B0 |
CV30,SV3#..LUM MI.GRAY,TRIM1# |
1 | ||
| 71077-3H360E0 |
CV30,SV3#..LUM OAK,TRIM4# |
1 | ||
| 71077-3H360K0 |
CV30,SV3#..LUM TAUPE,TRIM9# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32020 |
SV30,32,33..HT..ETO;CV30,SV35..ETO,LUM,ZV;SV30,32,33..SED..(ETO,LUM,VE,VL,XT,ZV) CENTER |
1 | ||
| 71398-32010 |
SV30,32,33..HT..ETO;CV30,SV35..ETO,LUM,ZV;SV30,32,33..SED..(ETO,LUM,VE,VL,XT,ZV) SIDE |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3217003 |
SV30,32,33..SED..(LUM,VE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-3217002 |
SV30,32,33..SED..(LUM,VE) ***,TAUPE,TRIM9# |
1 | ||
| 71560-32390E0 |
CV30,SV3#..SED..(ETO,LUM) ***,OAK,TRIM4# |
1 | ||
| 71560-32390K0 |
CV30,SV3#..SED..(ETO,LUM) ***,TAUPE,TRIM9# |
1 | ||
| 71560-32390B0 |
CV30,SV3#..SED..(ETO,LUM) ***,MI.GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3H14002 |
SV30,32,33..SED..(LUM,VE) ***,TAUPE,TRIM9# |
1 | ||
| 71480-3H14003 |
SV30,32,33..SED..(LUM,VE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-3H300B0 |
CV30,SV3#..LUM ***,MI.GRAY,TRIM1# |
1 | ||
| 71480-3H300K0 |
CV30,SV3#..LUM ***,TAUPE,TRIM9# |
1 | ||
| 71480-3H300E0 |
CV30,SV3#..LUM ***,OAK,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-32180 |
CV30,SV3#..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-32140 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-32040 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
CV30,SV3#,VZV3# |
2 | ||
| 72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST | ||||
| 72883-32010 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72883-32020 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3240003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3240002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 72830-32500B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 72830-32490K0 |
CV30,SV3#..LUM TAUPE,TRIM9# |
1 | ||
| 72830-32490E0 |
CV30,SV3#..LUM OAK,TRIM4# |
1 | ||
| 72830-32490B0 |
CV30,SV3#..LUM MI.GRAY,TRIM1# |
1 | ||
| 72830-32500E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-06208 | ||||
| 90119-08160 | ||||
| 90179-06129 | ||||
| 90386-11015 | ||||
| 90468-18071 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(9007- )HT..VE ; (9007- )GT,PRO,VR,VX,ZE,ZX ; (9105-9406) ; (9212-9309) ; (93
ｴﾄﾜ-ﾙV;ｴﾚｶﾞﾝﾄ/ﾒﾓﾘｱﾙﾊﾟﾂｹ-ｼﾞ;ﾙﾐｴ-ﾙG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-32090 |
CV30,SV3#,VZV3# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32120 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32060 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-3232002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 71065-3232003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-32490B0 |
CV30,SV3#..SED..(ETO,LUM) MI.GRAY,TRIM1# |
1 | ||
| 71065-32490E0 |
CV30,SV3#..SED..(ETO,LUM) OAK,TRIM4# |
1 | ||
| 71065-32490K0 |
CV30,SV3#..SED..(ETO,LUM) TAUPE,TRIM9# |
1 | ||
| 71065-32500E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71065-32500B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3H370B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71077-3H370E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-32740B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71078-32740E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-32050 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-32050 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32050 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-32050E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71349-32050B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MEDIUM GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3217003 |
SV30,32,33..SED..(LUM,VE) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-3217002 |
SV30,32,33..SED..(LUM,VE) ***,TAUPE,TRIM9# |
1 | ||
| 71560-32390E0 |
CV30,SV3#..SED..(ETO,LUM) ***,OAK,TRIM4# |
1 | ||
| 71560-32390K0 |
CV30,SV3#..SED..(ETO,LUM) ***,TAUPE,TRIM9# |
1 | ||
| 71560-32390B0 |
CV30,SV3#..SED..(ETO,LUM) ***,MI.GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-32680B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71540-32680E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-32680B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 71550-32680E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-32180 |
CV30,SV3#..SED |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32150 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32060 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-32060C1 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,BLACK,TRIM1#,4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-32060C1 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,BLACK,TRIM1#,4# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20011 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20011 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-32020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-32020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
2 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-12080 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-32020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-32020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-32030B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-32030E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-32030B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-32030E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,左側 |
1 | ||
| 69759-24010 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,右側 |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,左側 |
1 | ||
| 69759-24010 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,右側 |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-32010B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MEDIUM GRAY,TRIM1# |
1 | ||
| 72661-32010E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-32010E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 72661-32010B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MEDIUM GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,BLACK,TRIM1# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,BLACK,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
CV30,SV3#,VZV3# |
2 | ||
| 72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST | ||||
| 72883-32010 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72883-32020 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 72808A - BRACKET SUB-ASSY, SEAT CENTER ARMREST | ||||
| 72883-32010 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG |
1 | ||
| 72883-32020 |
CV30,SV3#..SED..(LUM,VE) |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3240003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3240002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 72830-32500B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 72830-32490K0 |
CV30,SV3#..LUM TAUPE,TRIM9# |
1 | ||
| 72830-32490E0 |
CV30,SV3#..LUM OAK,TRIM4# |
1 | ||
| 72830-32490B0 |
CV30,SV3#..LUM MI.GRAY,TRIM1# |
1 | ||
| 72830-32500E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3240003 |
SV30,32,33..SED..(LUM,VE) MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3240002 |
SV30,32,33..SED..(LUM,VE) TAUPE,TRIM9# |
1 | ||
| 72830-32500B0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,MI.GRAY,TRIM1# |
1 | ||
| 72830-32490K0 |
CV30,SV3#..LUM TAUPE,TRIM9# |
1 | ||
| 72830-32490E0 |
CV30,SV3#..LUM OAK,TRIM4# |
1 | ||
| 72830-32490B0 |
CV30,SV3#..LUM MI.GRAY,TRIM1# |
1 | ||
| 72830-32500E0 |
CV30,SV30,35..LUM ﾙﾐｴ-ﾙG,OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90105-08102 | ||||
| 90109-06208 | ||||
| 90119-08160 | ||||
| 90179-06129 | ||||
| 90386-11015 | ||||
| 90467-05077C0 | ||||
| 90467-0906622 | ||||
| 90467-09066E0 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91621-40608 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
