Toyota Camry/vista SV30 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
JP
CAMRY/VISTA
SV30-AEPDK (1990)
8103 - FRONT TURN SIGNAL LAMP

SV30-AEPDK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994

Engine 4SFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

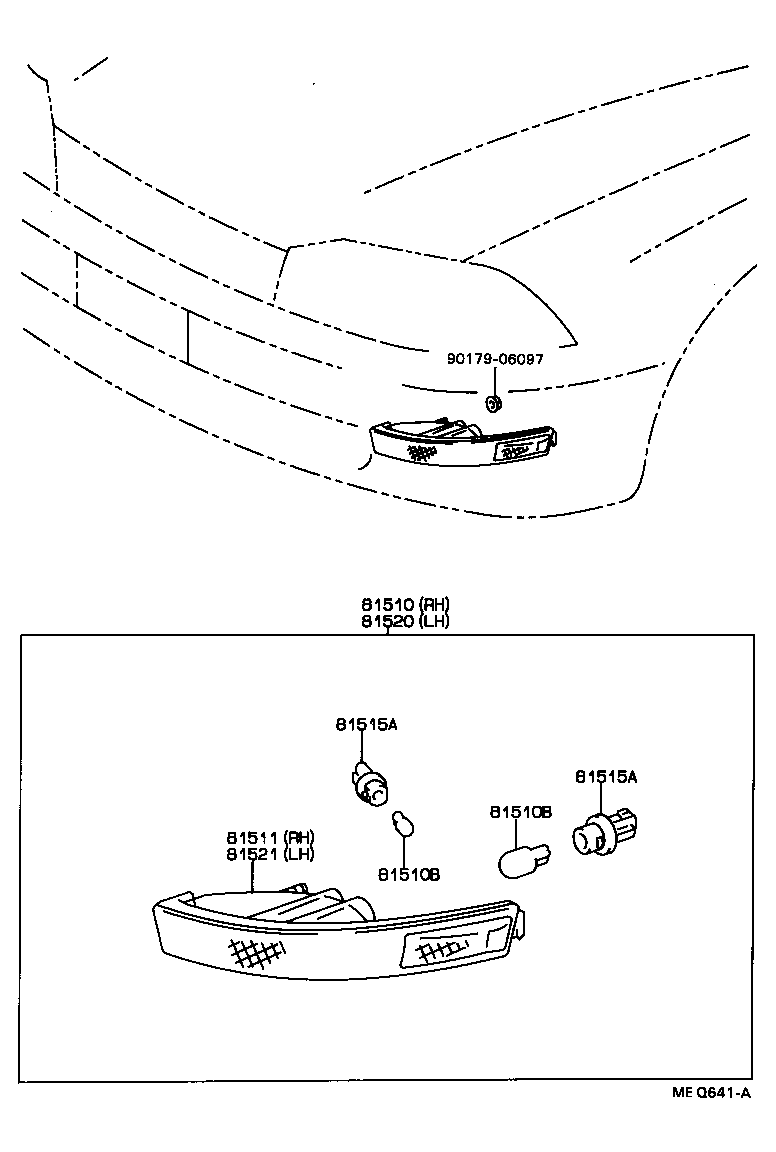

(9007-9206)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81510-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043	CV30,SV3# 12V 21W	01/1991 - 06/1992	2
99132-12050	CV30,SV3#..SED 12V 5W	07/1990 - 06/1994	2
90981-13043	VZV3#;CV30,SV3#..SED 12V 21W	06/1992 - 06/1994	2
90981-13050	CV30,SV3# 12V 21W	07/1990 - 01/1991	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043	CV30,SV3# 12V 21W	01/1991 - 06/1992	2
99132-12050	CV30,SV3#..SED 12V 5W	07/1990 - 06/1994	2
90981-13043	VZV3#;CV30,SV3#..SED 12V 21W	06/1992 - 06/1994	2
90981-13050	CV30,SV3# 12V 21W	07/1990 - 01/1991	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81511-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99032	CV30,SV3#..SED FRONT TURN	07/1990 - 06/1992	2
90075-99079	CV30,SV3#..SED SIDE TURN	06/1992 - 06/1994	2
81735-12180	CV30,SV3#..SED SIDE TURN	07/1990 - 06/1992	2
90075-99080	CV30,SV3#..SED FRONT TURN	06/1992 - 06/1994	2
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99032	CV30,SV3#..SED FRONT TURN	07/1990 - 06/1992	2
90075-99079	CV30,SV3#..SED SIDE TURN	06/1992 - 06/1994	2
81735-12180	CV30,SV3#..SED SIDE TURN	07/1990 - 06/1992	2
90075-99080	CV30,SV3#..SED FRONT TURN	06/1992 - 06/1994	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81520-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81521-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
Common parts
90179-06097

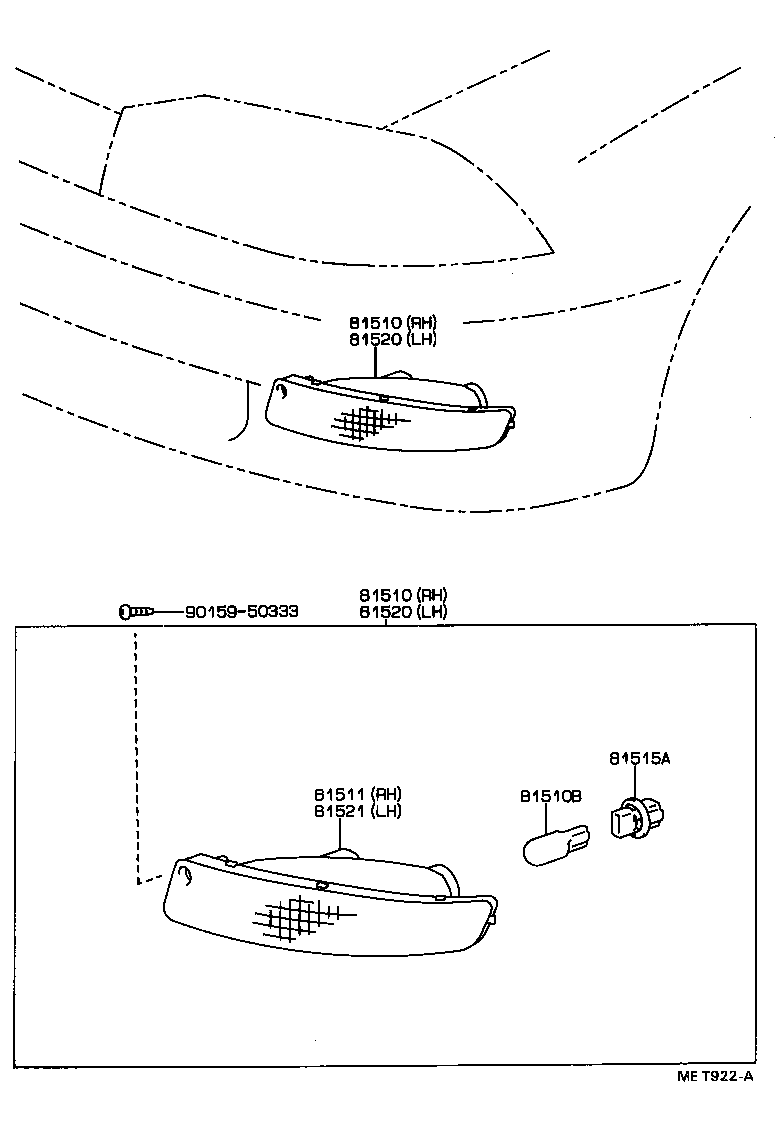

(9206-9406)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81510-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81510-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043	CV30,SV3# 12V 21W	01/1991 - 06/1992	2
99132-12050	CV30,SV3#..SED 12V 5W	07/1990 - 06/1994	2
90981-13043	VZV3#;CV30,SV3#..SED 12V 21W	06/1992 - 06/1994	2
90981-13050	CV30,SV3# 12V 21W	07/1990 - 01/1991	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81511-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99032	CV30,SV3#..SED FRONT TURN	07/1990 - 06/1992	2
90075-99079	CV30,SV3#..SED SIDE TURN	06/1992 - 06/1994	2
81735-12180	CV30,SV3#..SED SIDE TURN	07/1990 - 06/1992	2
90075-99080	CV30,SV3#..SED FRONT TURN	06/1992 - 06/1994	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81520-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
81520-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-32150	CV30,SV3#..SED	06/1992 - 06/1994	1
81521-32160	CV30,SV3#..SED	07/1990 - 06/1992	1
Common parts
90159-50333

SV30-AEPDK (1990)

(9007-9206)SED

(9206-9406)SED
